Antenna: Testing and Inspection

AUTOMATIC ANTENNA INSPECTION




1. Disconnect the connector from the antenna assembly.

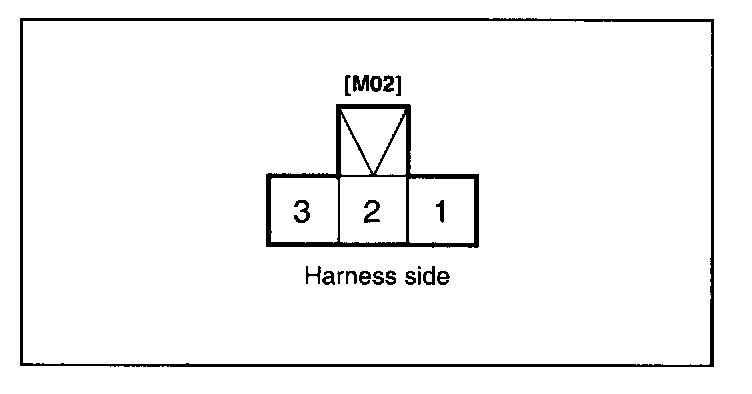

2. Check if the battery voltage is measured between terminal 1 and 3 of harness side at all time.
3. Check if the battery voltage is measured between terminal 3 and 2 of the harness side when the ignition switch and audio switch are turned on.

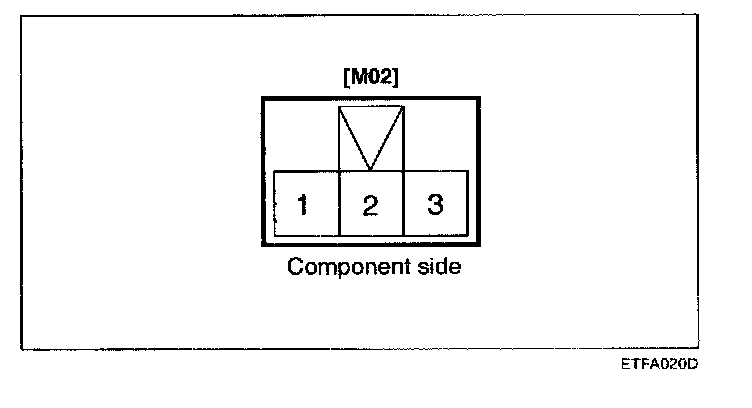

4. After connecting battery source to terminal 2 and 1 of the component side, check if the motor operates properly (Antenna moves up.)
5. Check if the motor operates (antenna moves down) when terminal 2 is disconnected from battery source.
