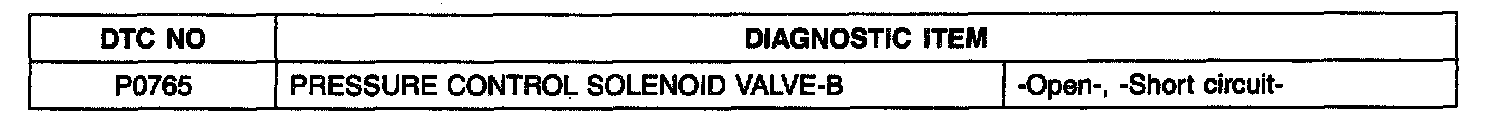

P0765







P0765

DESCRIPTION
- Control fluid pressure that is acting on Pressure Control Valve-13 (PCV-13) through PWM signals from TCM to control pressure during a shift.

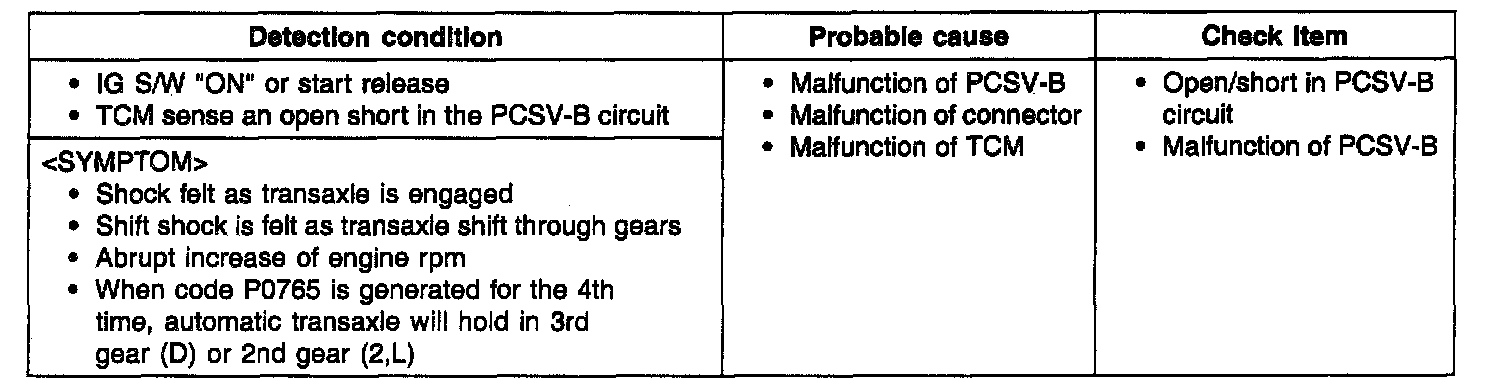

TROUBLESHOOTING FLOW





CIRCUIT DIAGRAM

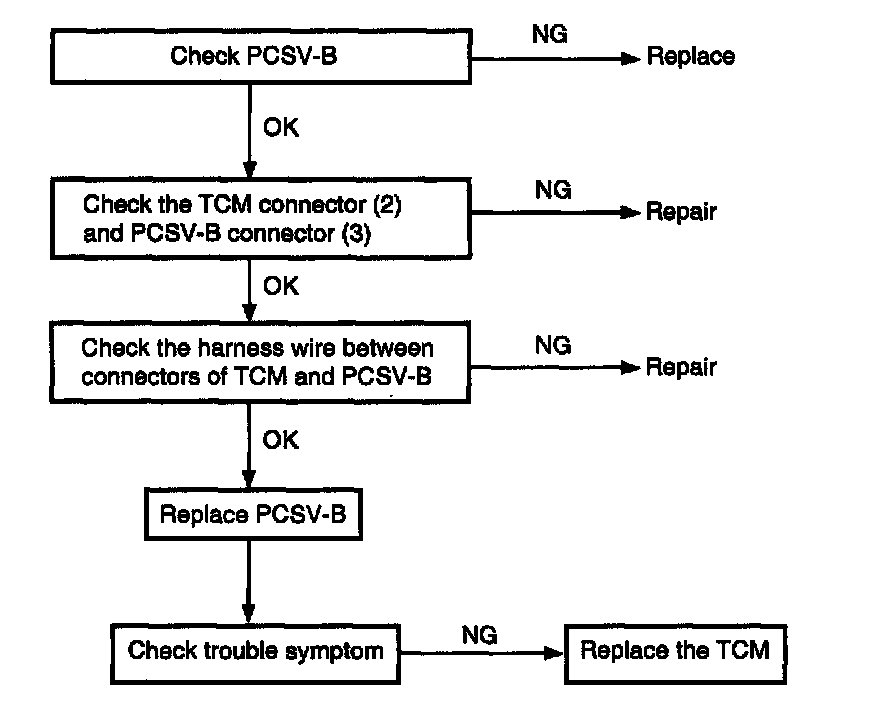

TROUBLESHOOTING FLOW
