P0335
P0335DESCRIPTION
The Crankshaft Position (CKP) sensor consists of a magnet and coil located next to the flywheel. The sensing wheel teeth are used by the CKP sensor to generate a signal. The voltage signal from CKP sensor allows the Engine Control Module (ECM) to determine engine RPM and crankshaft position.
FAILURE CONDITIONS
The ECM will set P0335 and the MIL will turn on if the CKP signal voltage remains at 0.0 volts with the starter engaged for 4 seconds or 8 revolutions and the Camshaft Position (CMP) sensor signal indicating engine rotation This check is made every time the engine starts. This code indicates no crankshaft signal is being read by the CKP sensor or the ECM while a CMP sensor signal verifies engine rotation.

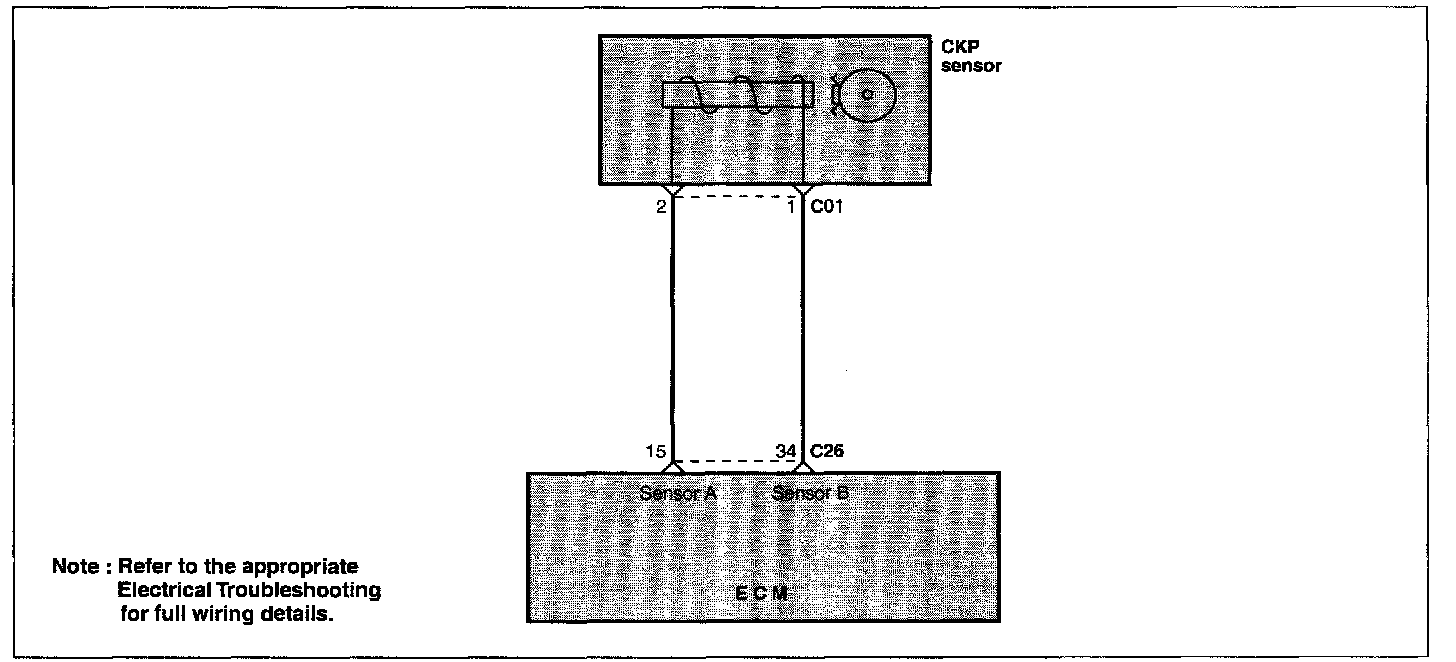

Circuit Diagram:
Test Procedure:
