P0300

P0300

DESCRIPTION
With the ignition switch at ON or START, voltage is applied to the ignition coil. The ignition coil consists of two coils. High tension leads go to each cylinder from the ignition coil. The ignition coil fires two spark plugs on every power stroke (the cylinder under compression and the cylinder on the exhaust stroke). Coil number one fires cylinders 1 and 4. Coil number two fires cylinders 2 and 3.

The Engine Control Module (ECM) provides a switching circuit to ground for energizing the primary ignition coils. The ECM uses the crankshaft position sensor signal to time the energizing of the coil. When a primary ignition coil is energized and de-energized, the secondary coil produces a high voltage spike across the attached spark plugs.

FAILURE CONDITIONS
The ECM will set P0300 and the MIL will turn on if 2 misfires per 100 revolutions are detected during two driving cycles. The misfire rate is measured every 200 revolutions when the following conditions are met:
- Speed change is less than 1000 rpm per second.
- Engine speed is between 600 and 4000 RPM.
- Engine load is greater than 2 milliseconds.
- No fuel cut-off.
- Starter is not engaged.
- Vehicle on smooth road (acceleration sensor reports less than 0.3 g acceleration).

If the misfire rate increases to between 5% - 25% per 200 revolutions, there is danger of catalyst damage and the MIL will flash and on. The catalyst temperature could exceed 3542 °F (1950 °C) if the misfire rate increases enough. This code indicates a problem with cylinder ignition being read by the ECM.

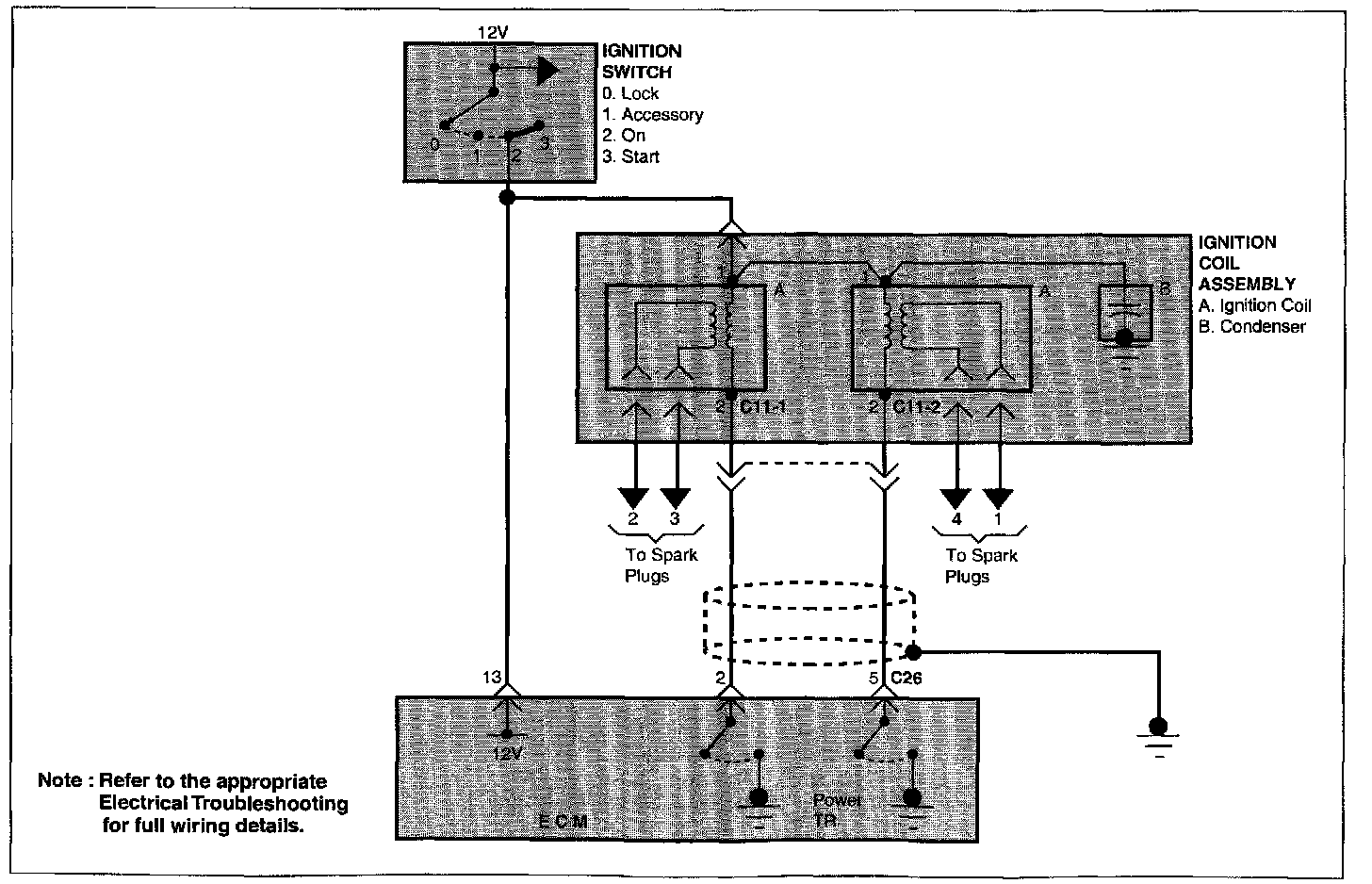

Circuit Diagram:

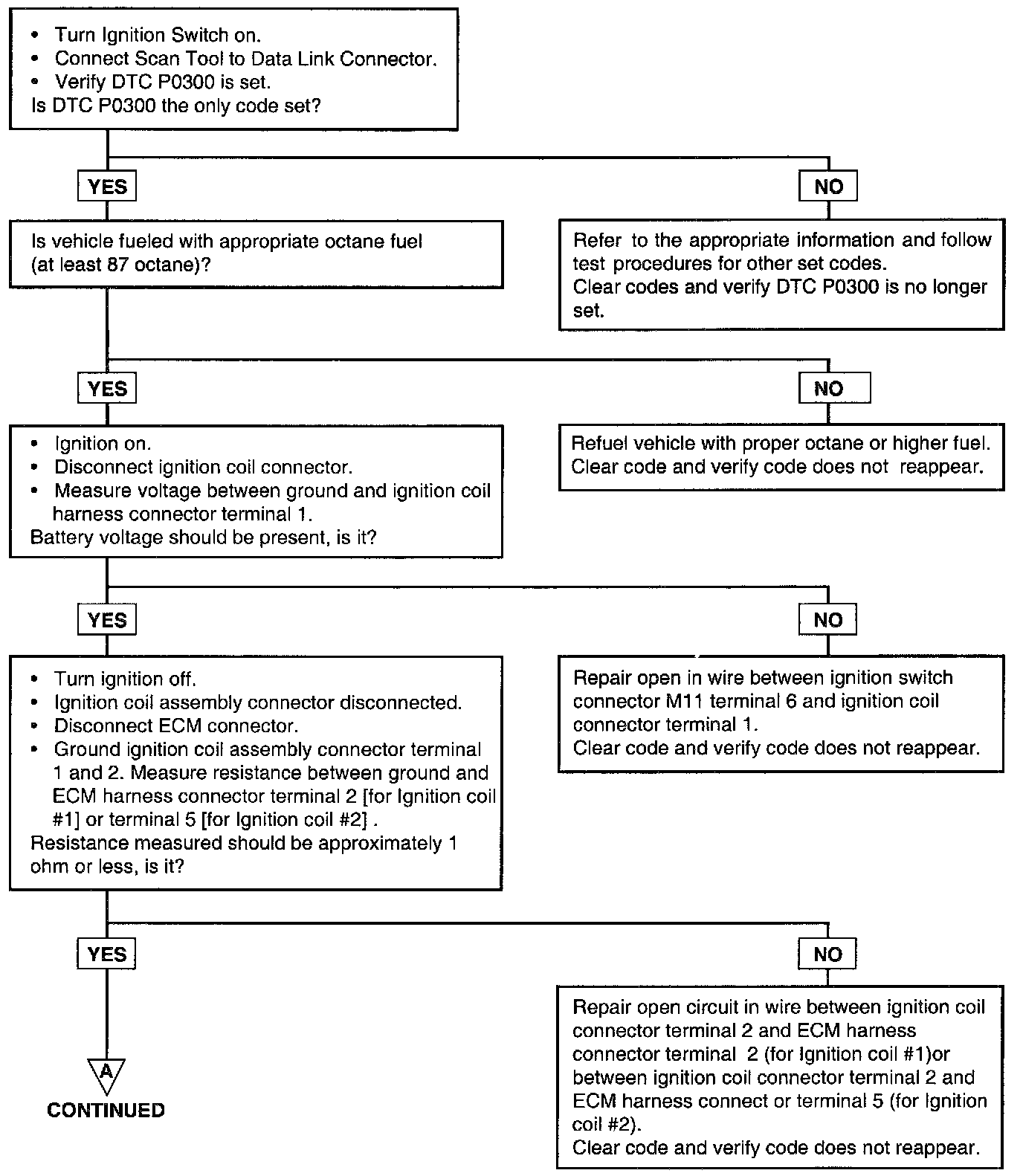

Test Procedure Part 1:

Test Procedure Part 2:
