Initial Inspection and Diagnostic Overview

POWER WINDOW INSPECTION
Check for the continuity of the switch using an ohmmeter. If the continuity is not as specified, replace the switch.

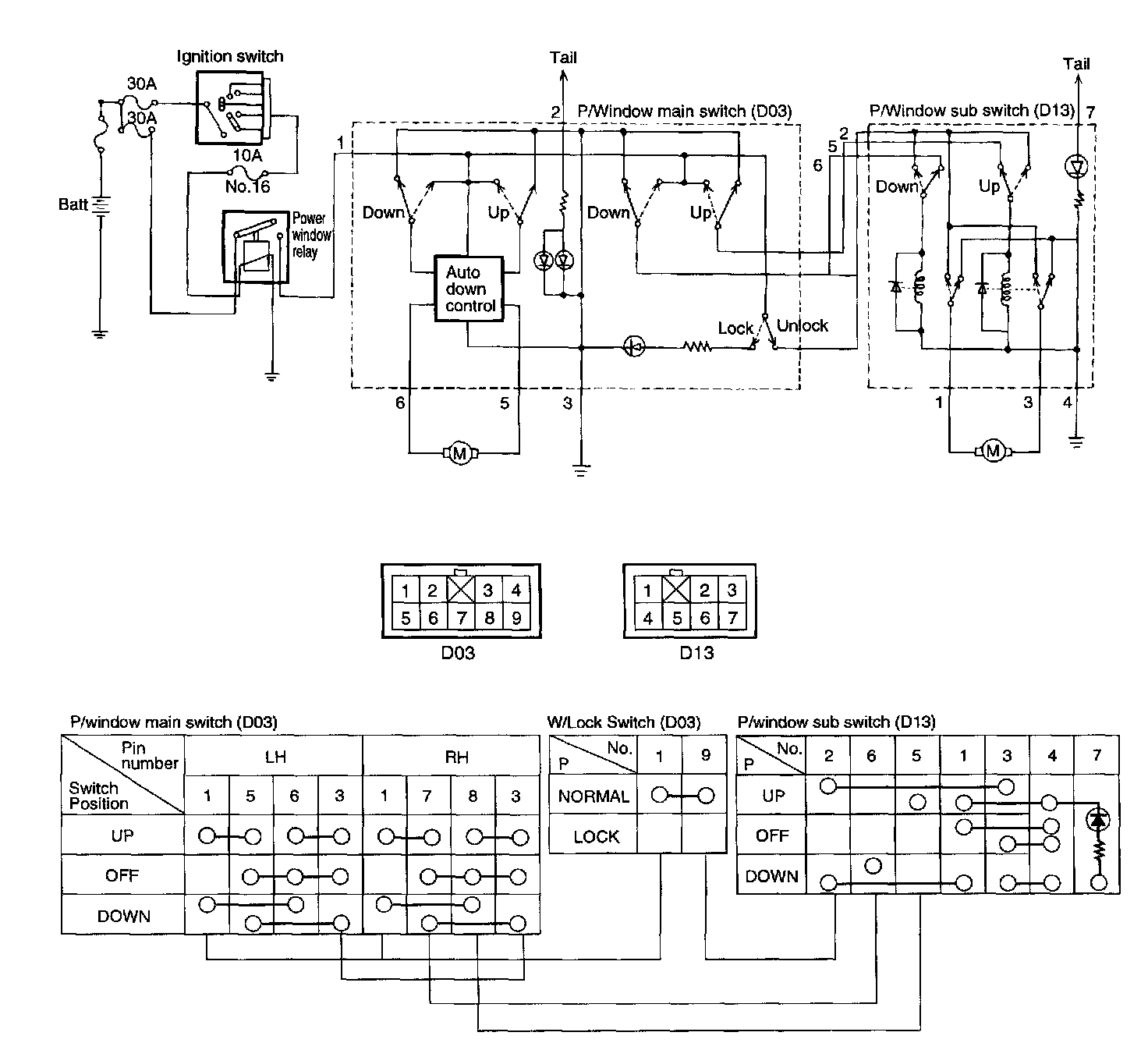

Circuit Diagram:
