Troubleshooting Guide

TROUBLESHOOTING
Malfunctions of the auto transaxle can lead to other problems, such as those described below:

1. Improper maintenance and/or adjustments
2. Electronic control malfunctions
3. Mechanical functions
4. Hydraulic control
5. Engine performance malfunctions etc..
In order to properly troubleshoot the source of these malfunctions, it is first essential to methodically question the owner concerning the problem. The driver should also be asked whether or not the problem has occurred more than once.

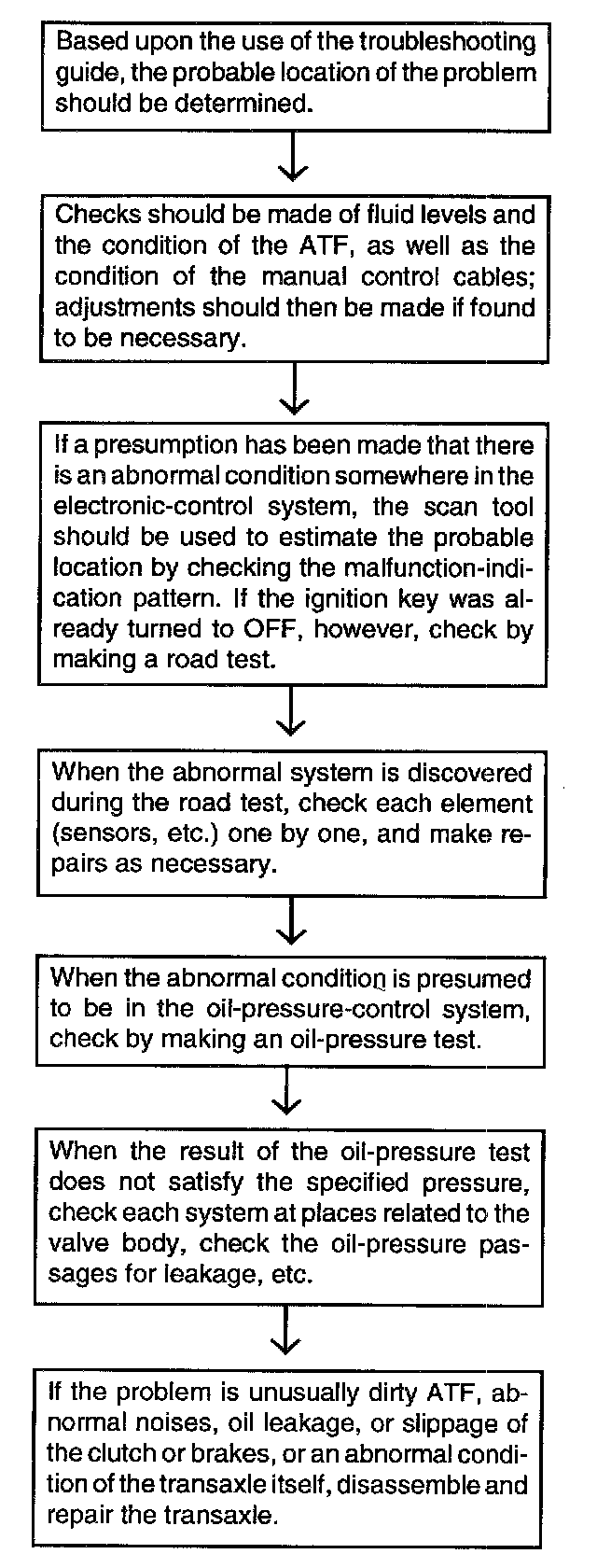

Tests should be conducted, troubleshooting, as described in illustration above.

TROUBLESHOOTING GUIDE

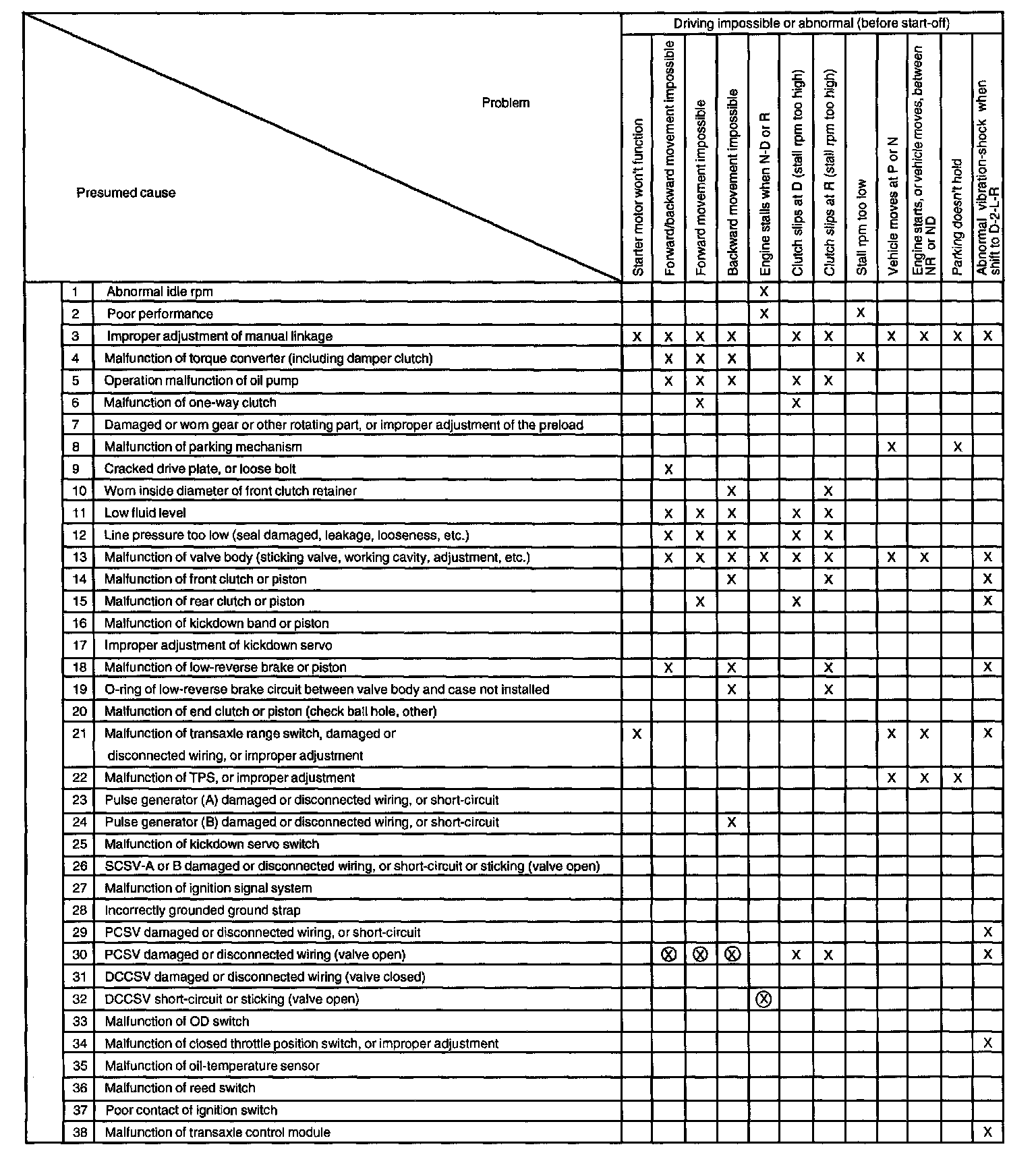

1 of 2

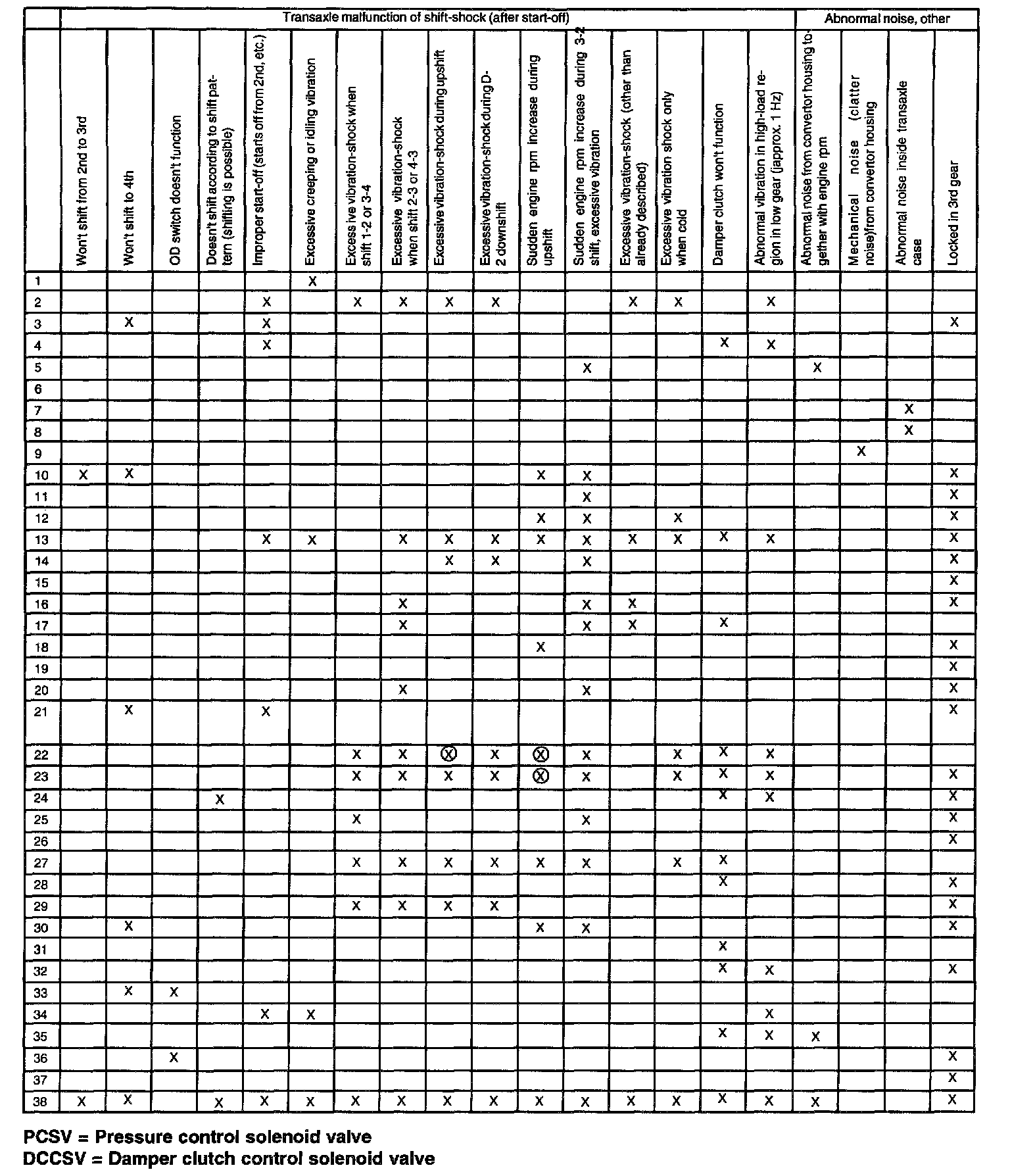

2 of 2

NOTE:
"(X)" indicates items of high priority during inspection.
Abbreviations:
TPS = Throttle Position Sensor
SCSV = Shift Control Solenoid Valve
PCSV = Pressure Control Solenoid Valve
DCCSV = Damper Clutch Control Solenoid Valve
