Shifter A/T: Service and Repair

INSPECTION
Check the detent place for wear.
Check the bushing for wear or damage.
Check the spring for damage or deterioration.
Check the pin at the end of the rod assembly for wear.

ASSEMBLY





1. Apply a coating of grease to the sliding part of the bushing.
Specified grease:
Chassis grease SAE J310, NLGI No. 0

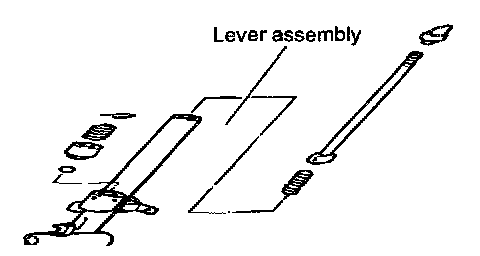

2. Apply the specified grease at the places shown in the figure.
Specified grease:
Multi-purpose grease SAE J310, NLGI No. 2
