Removal

REMOVAL
1. Remove the side rear seat back.





2. Remove the rear strut upper mounting nut.

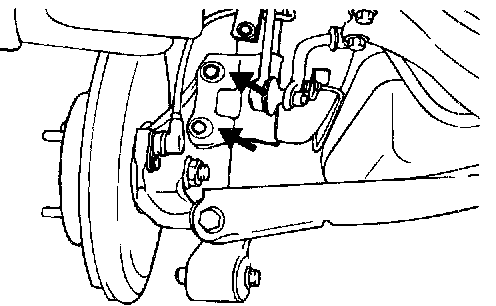

3. Raise the vehicle and position the jack stands.
4. Remove the wheel.
5. Disconnect the ABS wheel sensor wiring from the strut assembly.

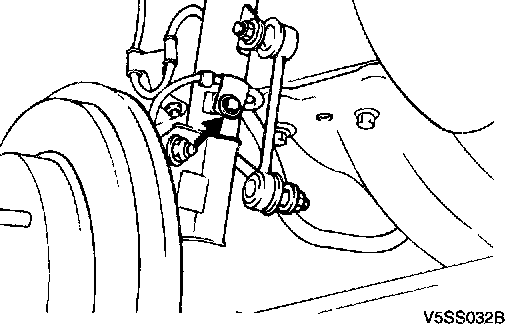

6. Remove the brake hose mounting clip from the strut.

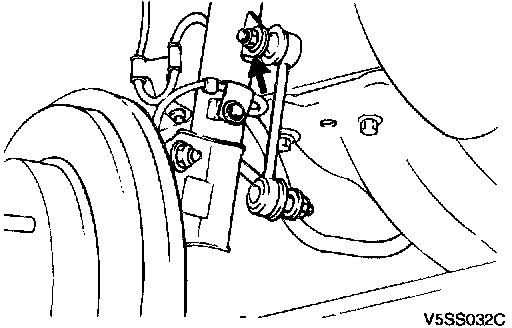

7. Remove the stabilizer link mounting nut from the strut assembly.





8. Remove the strut assembly.
