Rear Knuckle: Service and Repair

REAR AXLE CARRIER BUSH REPLACEMENT





1. Install special tools (09432-22000, 09545-21100) on the rear axle carrier trailing arm bushing.
2. Press out the bushing.
3. Apply soap solution to the new bushing and trailing arm bushing mount.





4. Install special tools (09545-21100, 09552-31000) and new bushing onto the rear axle carrier.

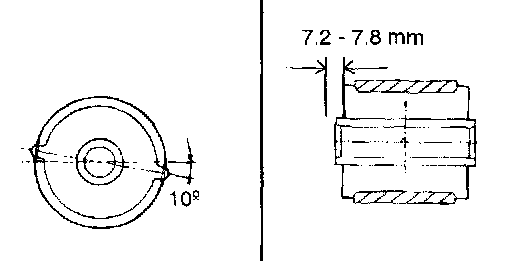

5. When press fitting, press in the direction of the arrow into the position as shown in the illustration.
6. Press fit the bushing in to the bushing mount.
Standard value (A) 7.2 - 7.8 mm (0.28 - 0.30 inch)

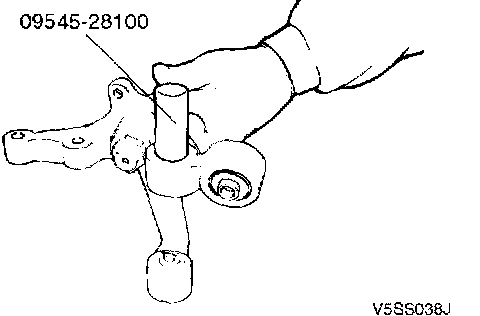

7. Install the special tool (09545-28100) on the rear axle carrier suspension arm bushing.
8. Press out the bushing.
9. Apply soap solution to the new bushing and suspension arm bushing mount.





10. Install the special tool (09456-21100) and new bushing onto the rear axle carrier.

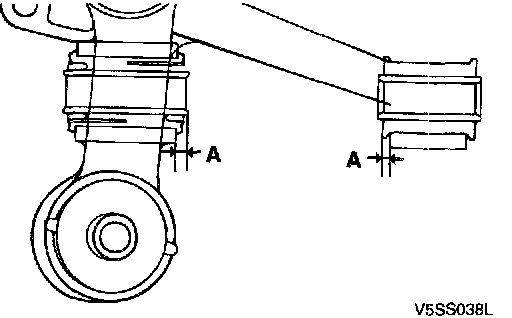

11. Press fit the bushing into the suspension arm bushing mount as shown in the illustration.
Standard value (A) 4.7 - 5.3 mm
