Starter Drive/Bendix: Adjustments

SERVICE ADJUSTMENT PROCEDURES PINION GAP ADJUSTMENT

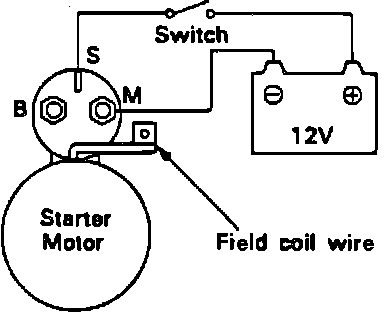

Fig. 4 Pinion Gap Adjustment (Part 1 Of 3):

1. Disconnect the field coil wire from the M-terminal of the solenoid.
2. Connect a 12 V battery the S-terminal and the M-terminal.
3. The pinion will move out.

NOTE: This test must be performed quickly (in less than 10 seconds) to prevent the coil from burning.

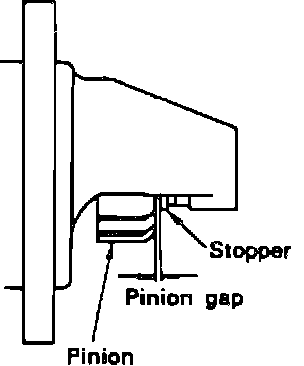

Fig. 4 Pinion Gap Adjustment (Part 2 Of 3):

4. Check the pinion to stopper clearance (pinion gap) with a feeler gauge.

Pinion gap : 0.5 - 2.0 mm (0.02 - 0.079 in.)




5. If the pinion gap is out of specification, adjust by adding or removing gaskets between the solenoid and the front bracket.
