Diagram Information and Instructions
>>

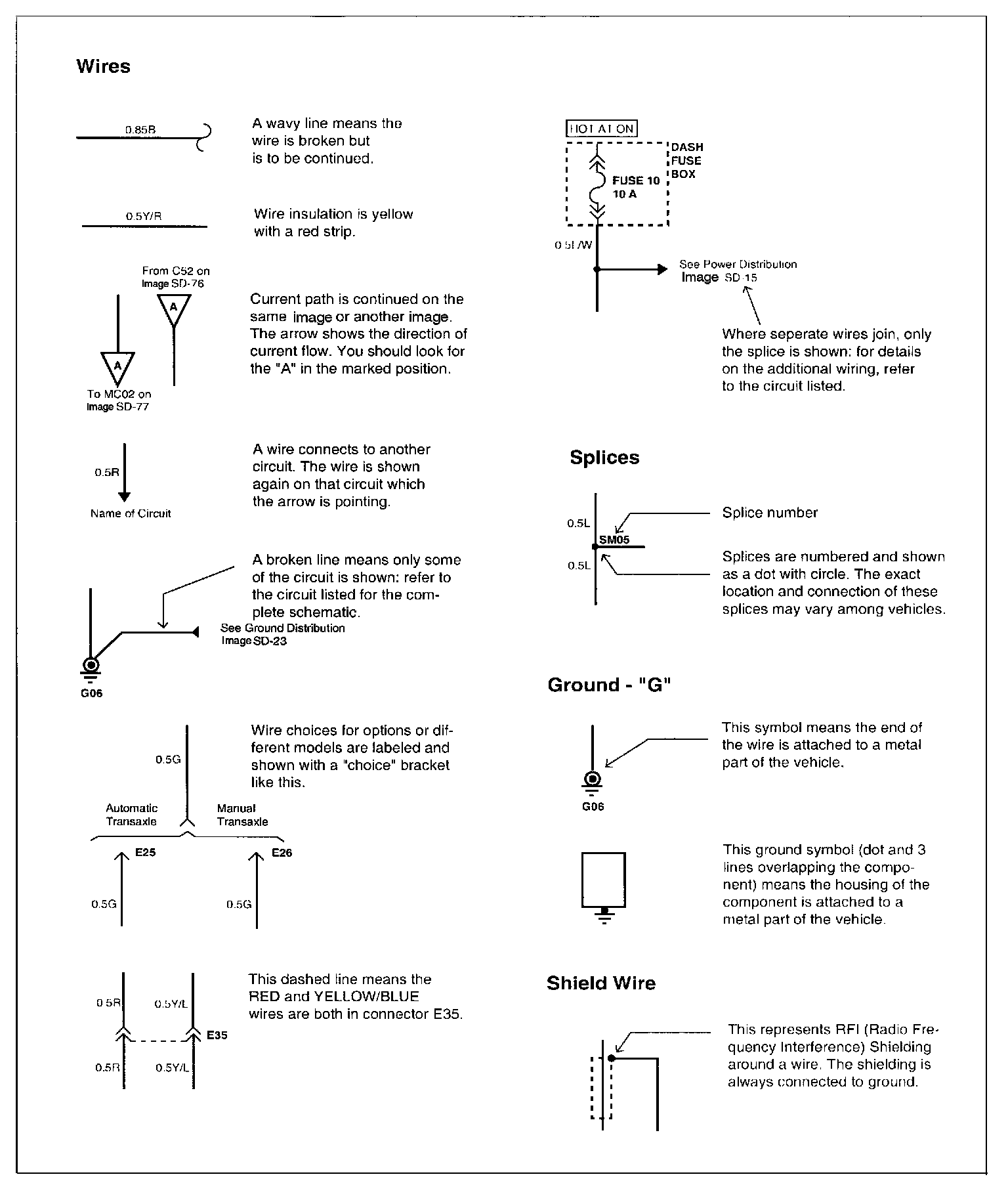

Symbols
Symbols
Symbols (Part 1 Of 3):
Part 2:
Symbols (Part 3 Of 3):
The symbols and abbreviations explained here are used throughout the information.
