Windshield Wiper/Washer Switch

INSPECTION

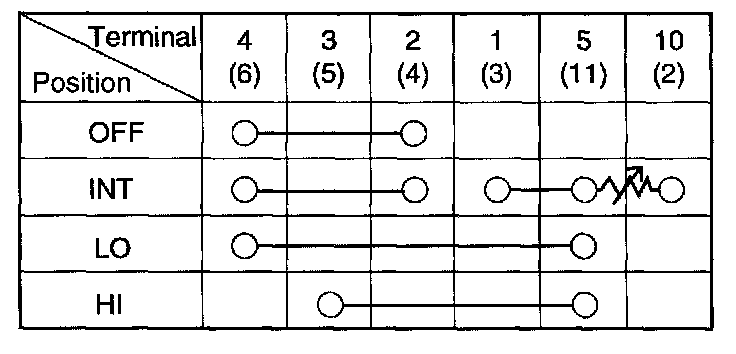

Check the switch for continuity between the terminals

Wiper Switch (Connector No.: M26-1 (M26-4)):

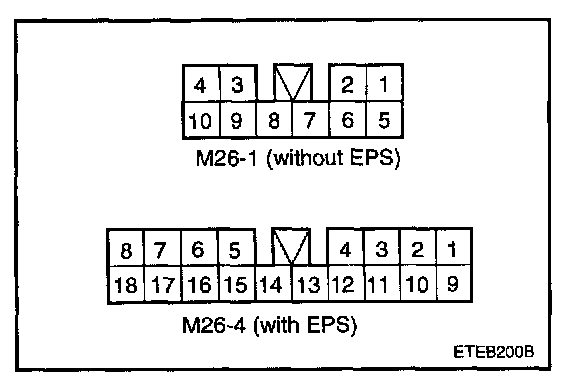

Wiper switch (Connector No.: M26-1 (M26-4))
