Windshield Washer Switch
>>
Testing and Inspection
>>
Rear
Rear
SWITCH
1.
Remove the facia panel.
2.

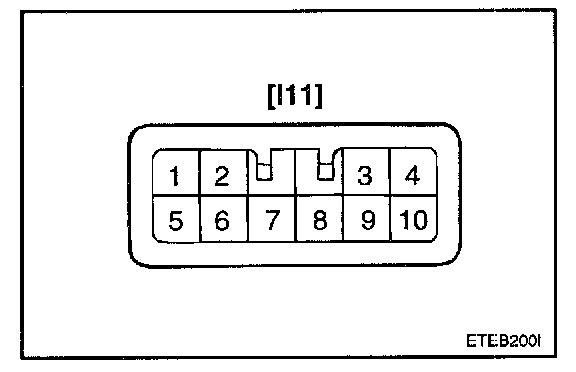

Disconnect the switch connector.
3.
Remove the rear wiper and washer switch from the facia panel.
4.

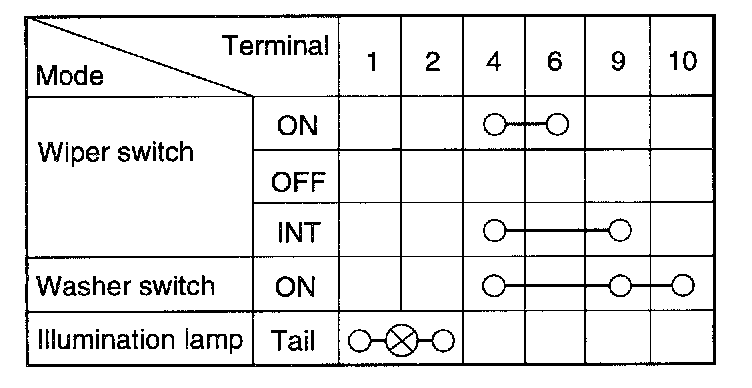

Check for continuity between terminals.
