Hazard Warning Switch: Service and Repair

HAZARD SWITCH




1. Disconnect the negative battery terminal.
2. Remove the cluster facia panel and the switch mounting screw. (2EA)
3. Remove the hazard switch from the facia panel.

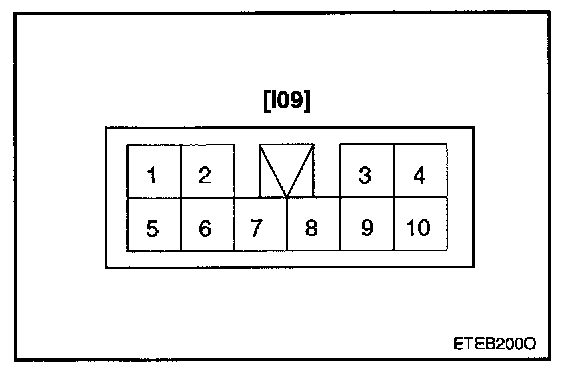

4. Disconnect the connector from crash pad harness.

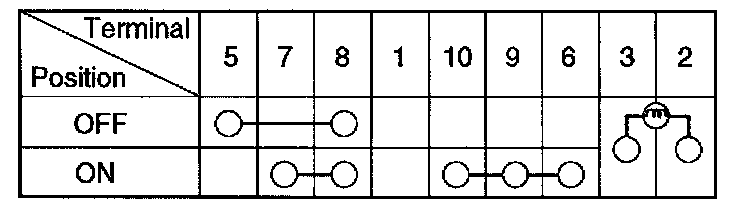

5. Operate the switch and check for continuity between terminals by using an ohmmeter.
