Refrigerant Pressure Sensor / Switch: Service and Repair

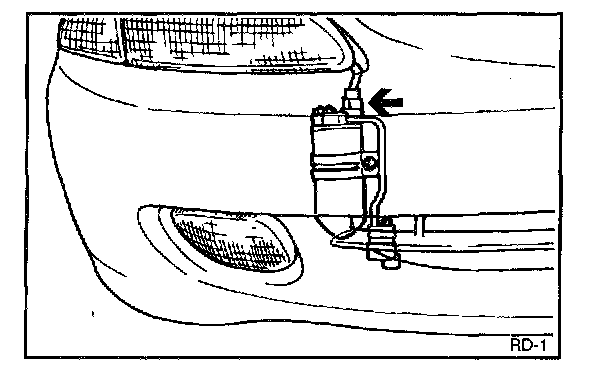

DUAL PRESSURE SWITCHDual Pressure Switch (E17):
REMOVAL AND INSTALLATION
1. Discharge refrigerant from the air conditioning system.

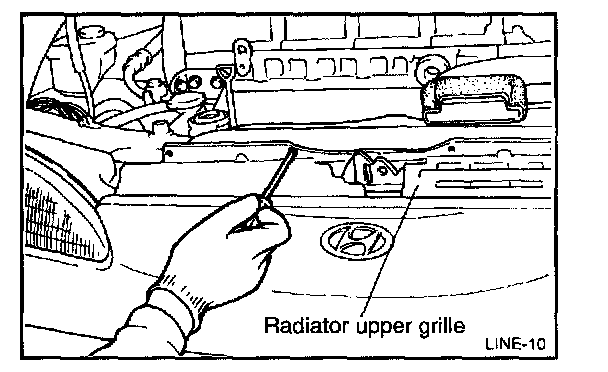

2. Remove the radiator upper grille.
3. Disconnect the dual pressure switch connector.
4. Remove the dual pressure switch by suing a wrench. (22 mm)
5. Installation is the reverse order of removal.
6. After installation, evacuate, charge and test the air conditioning system.
