System Relay: Testing and Inspection
AIR CONDITIONING RELAY AND CONDENSER FAN RELAY
1. Remove the battery ground cable.

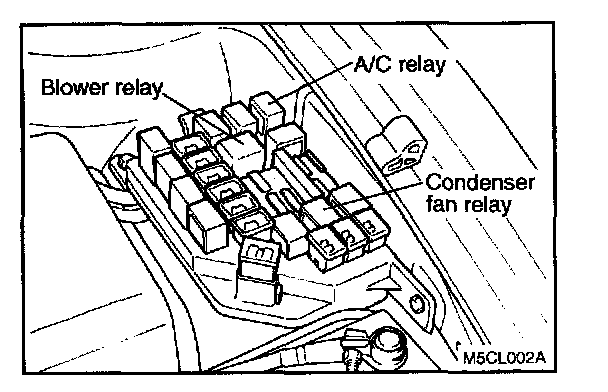

2. Remove the cover of relay box located in engine compartment.
3. Remove the relays from relay box.
4. Check for continuity between the terminals.

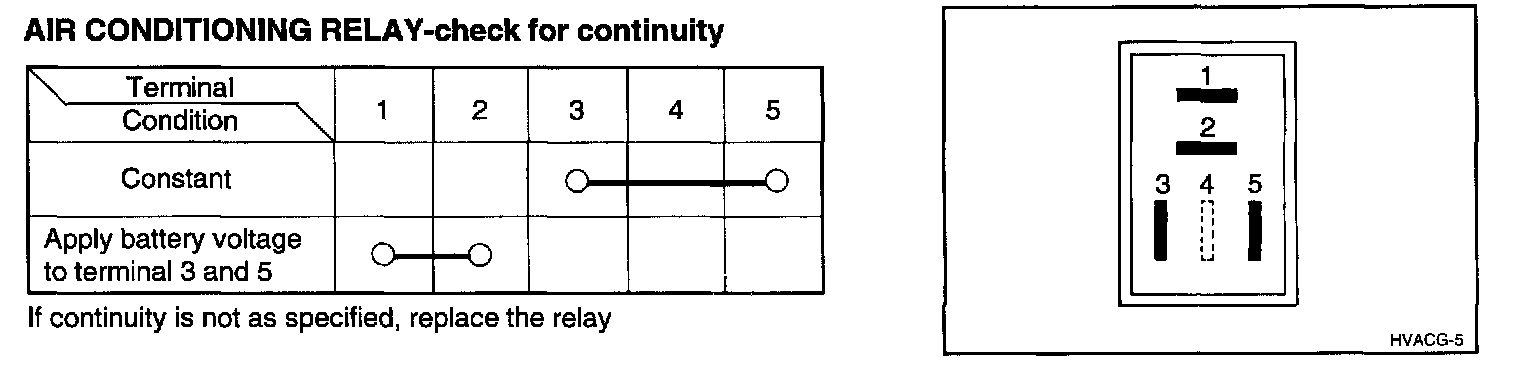

Air Conditioning Relay - Check For Continuity:
