Condenser Fan Motor Relay: Testing and Inspection

AIR CONDITIONING RELAY AND CONDENSER FAN RELAY




1. Remove the battery ground cable.
2. Remove the cover of relay box located in engine compartment.
3. Remove the relays from relay box.
4. Check for continuity between the terminals.

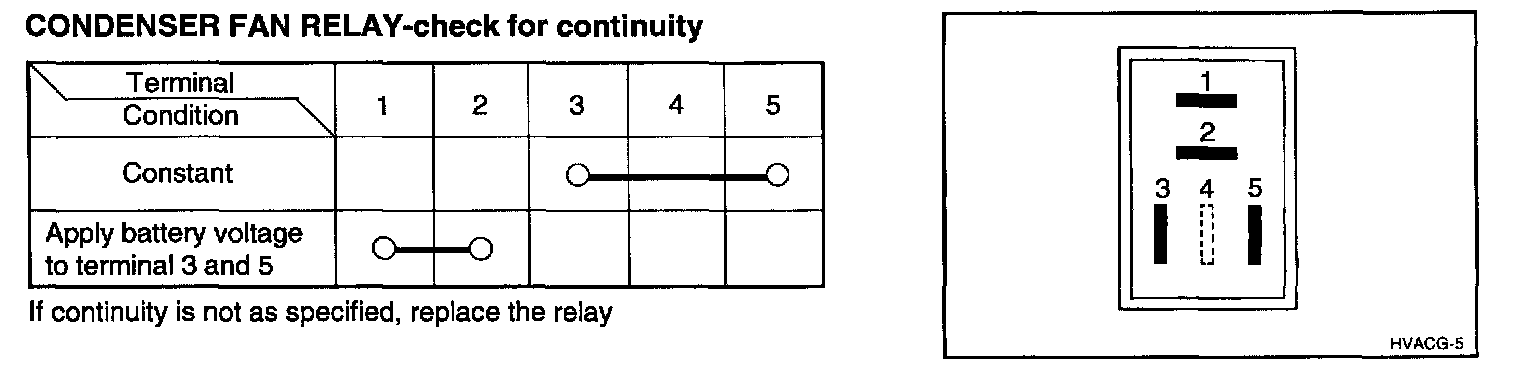

Condenser Fan Relay - Check For Continuity:
