Shift Interlock Solenoid: Testing and Inspection

AUTOMATIC TRANSAXLE SOLENOID




1. Remove the solenoid connector.

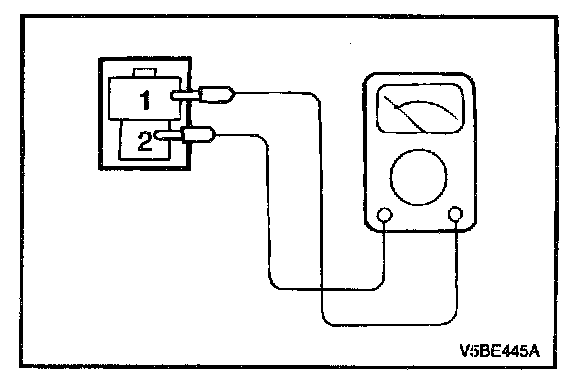

2. Using an ohmmeter, measure the resistance between terminals.

Standard resistance: 12 - 16 ohm

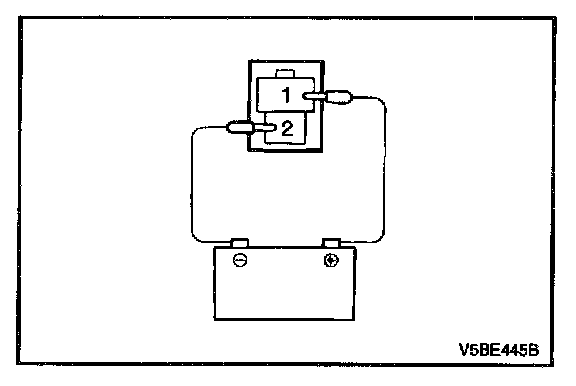

3. Attach the positive (+) lead from the battery to terminal 1. and the negative (-) lead to terminal 2.
4. Check that an operation noise can be heard from the solenoid.
