System Troubleshooting Procedures

The vehicle speed sensor is a reed switch. The vehicle speed sensor is built into the speedometer and coverts the transaxle gear revolutions into pulse signals, which are sent to ECM.

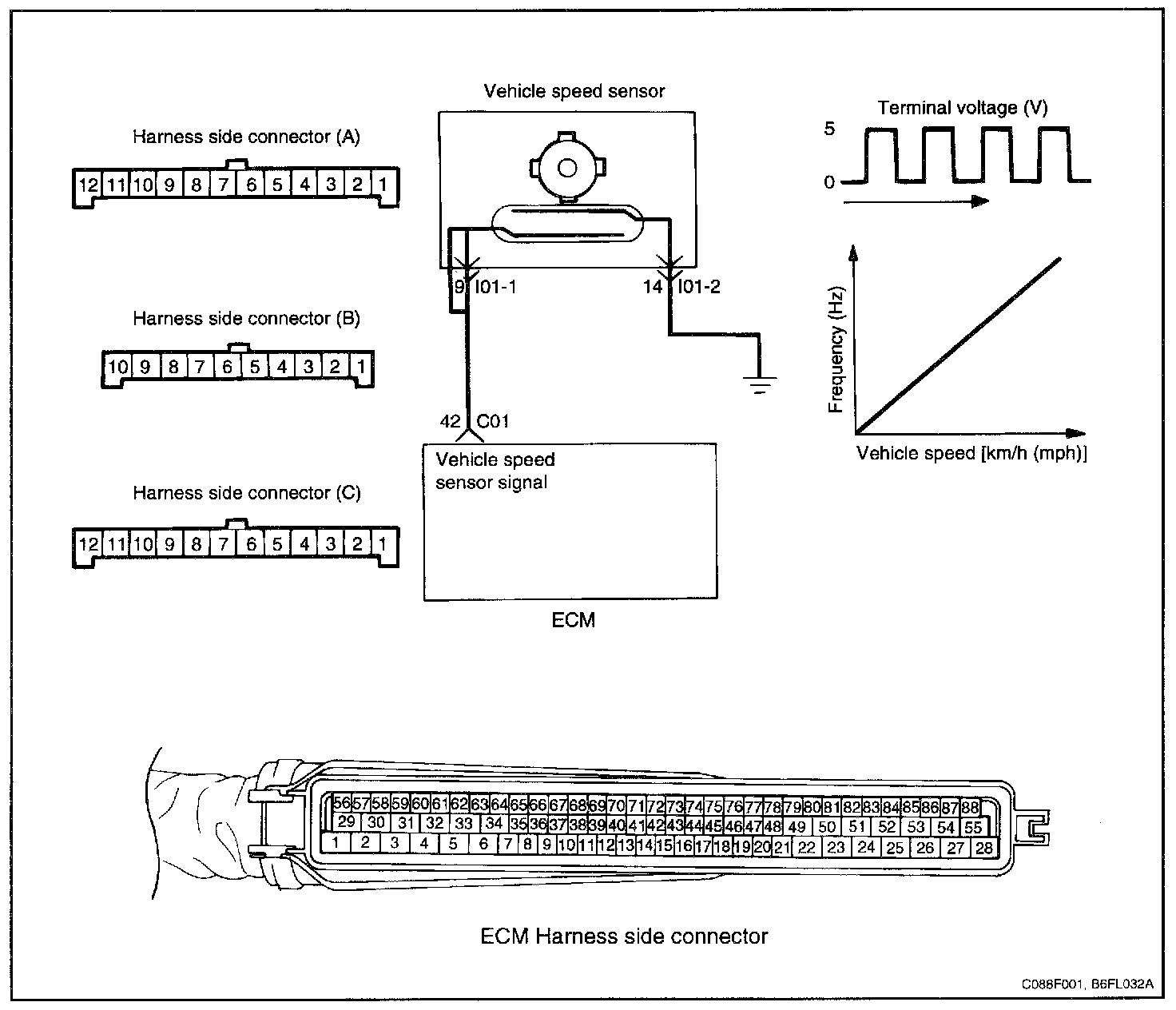

Circuit Diagram:

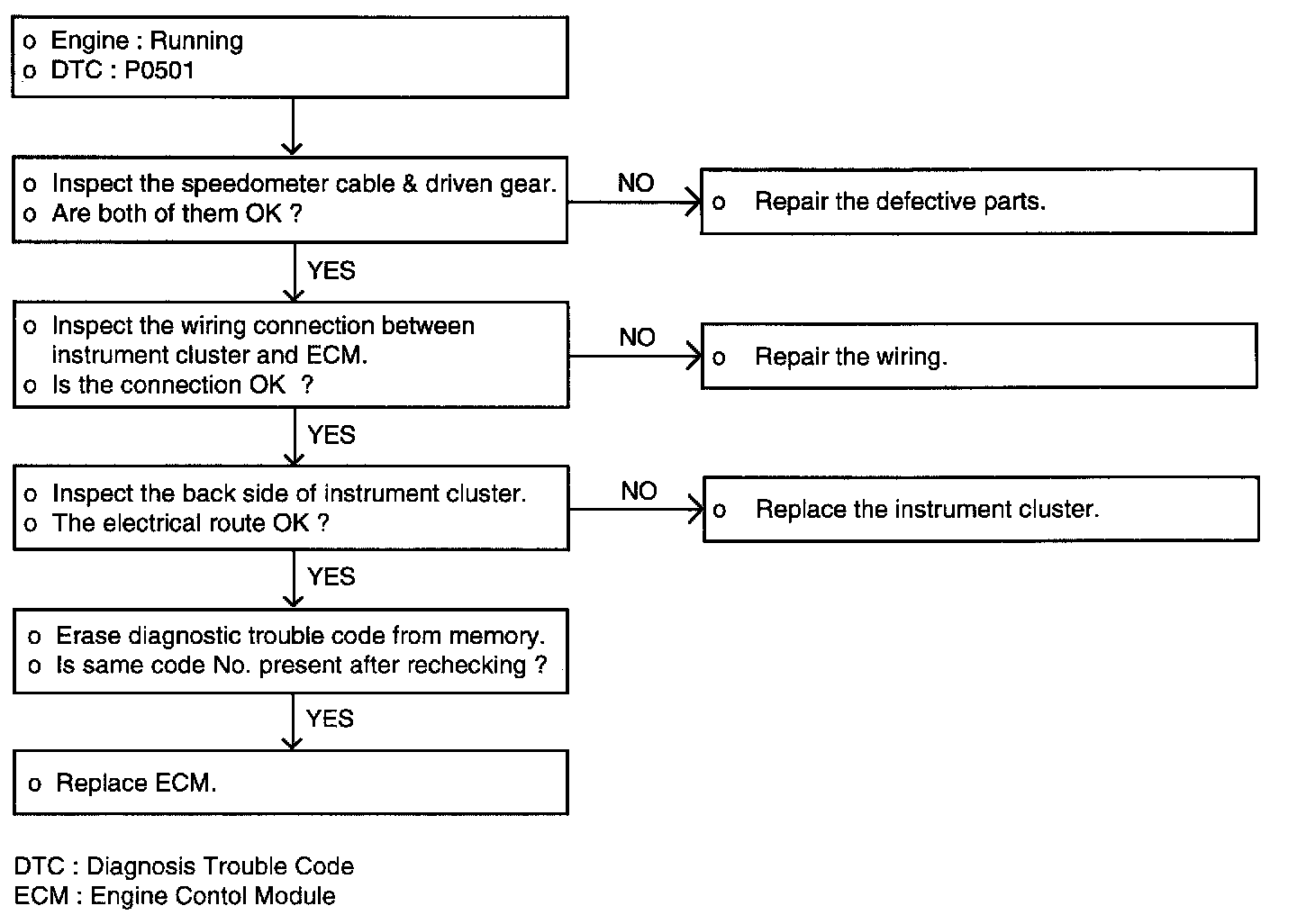

Troubleshooting Procedures:

TROUBLESHOOTING HINTS
If there is an open or short circuit in the vehicle speed sensor signal circuit, the engine may stall when the vehicle is decelerated to a stop.

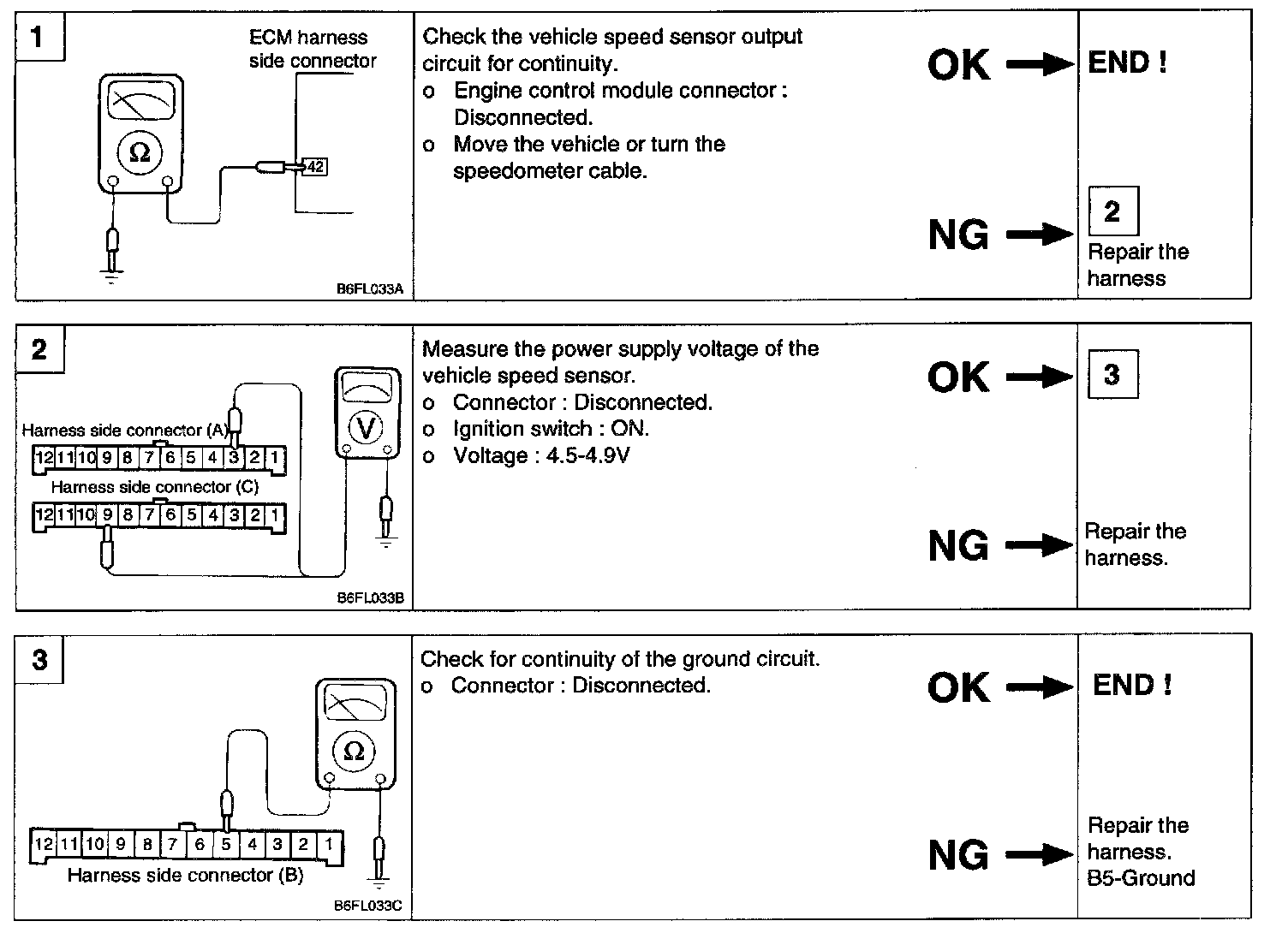

Harness Inspection Procedures:
