Electrical Diagrams
Electrical Diagrams

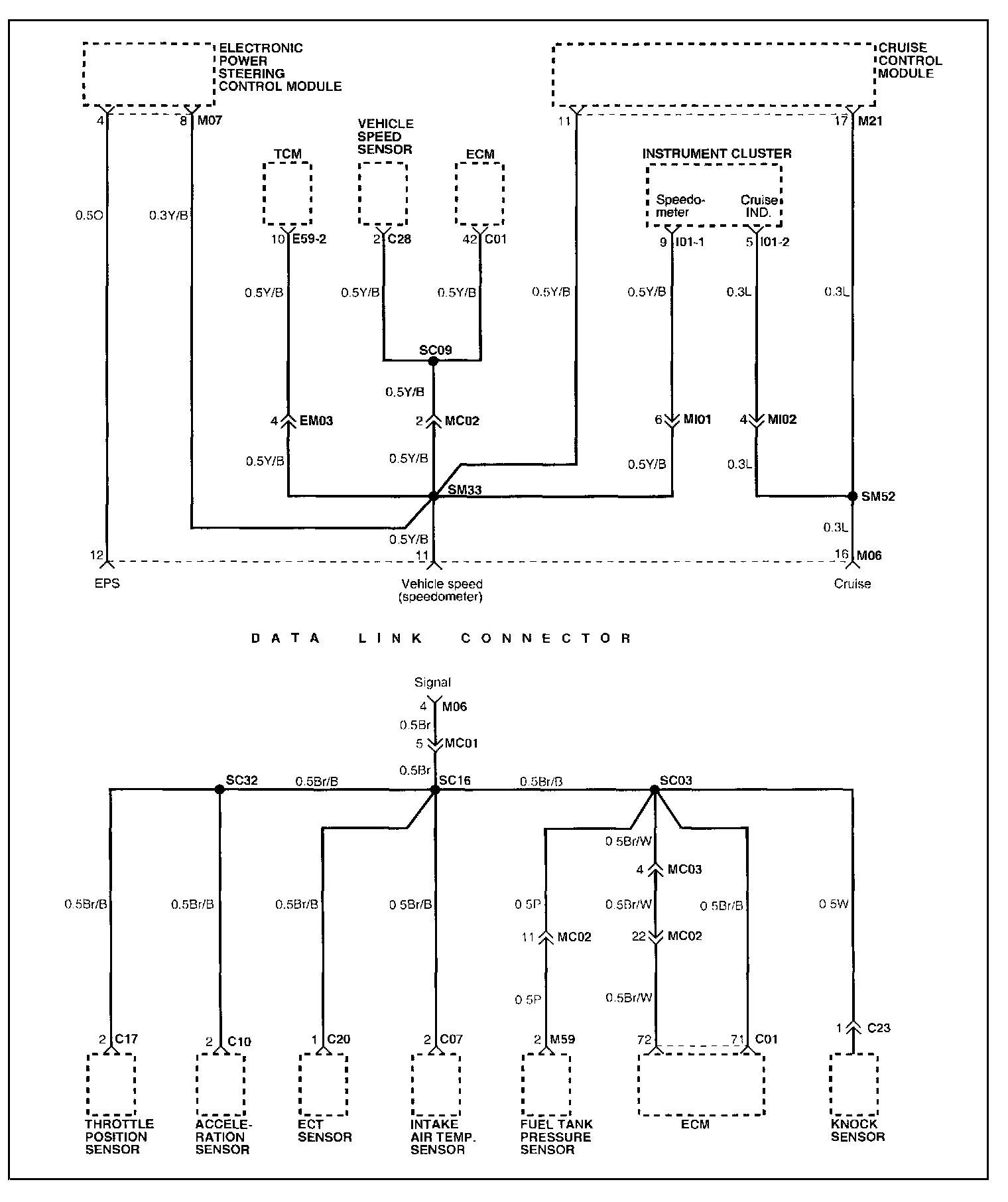

Image SD-34 -- Data Link Details (1):

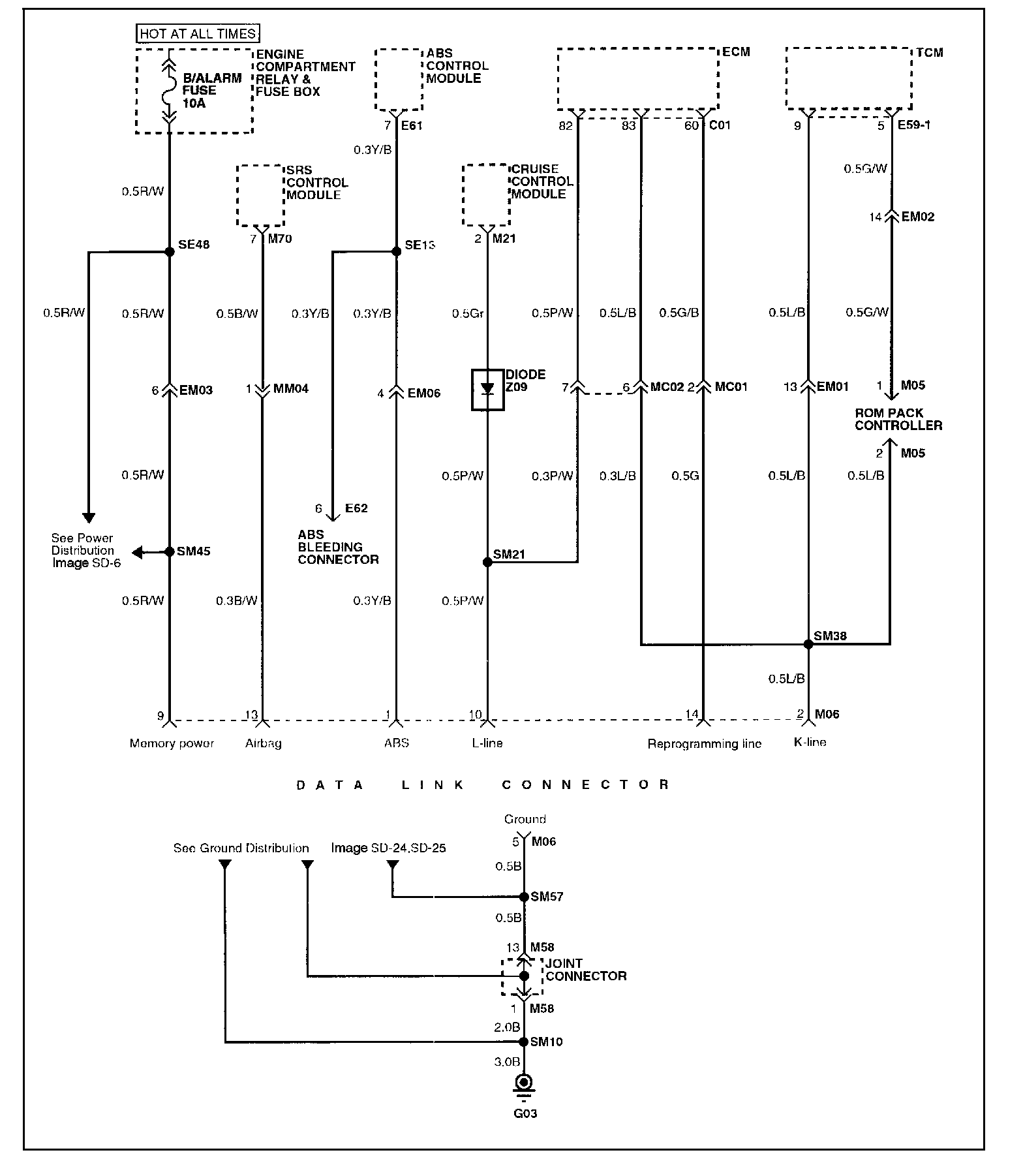

Image SD-35 -- Data Link Details (2):
