Rear Combination Lamp

REAR COMBINATION LAMP
1. Disconnect the negative battery terminal.
2. Open the trunk lid.

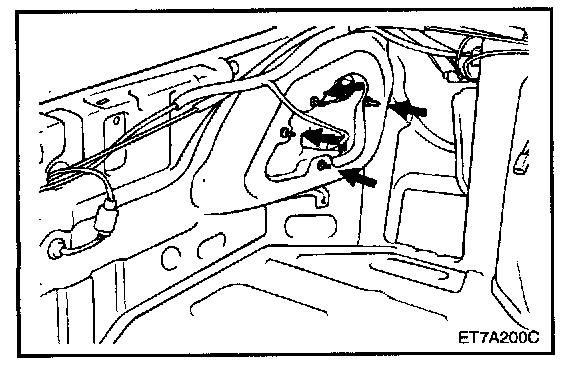

3. With rear luggage cover opened, remove the mounting nuts. (5EA)
4. Disconnect the connector, remove the lamp assembly.
5. Installation is the reverse of removal.
