Combination Switch: Testing and Inspection

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multifunction switch.

Lighting/Dimmer and Passing/Turn signalSwitch

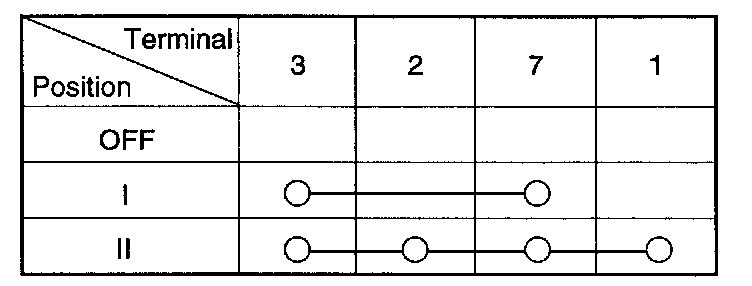

Lighting Switch (Connector No.: M26-3):

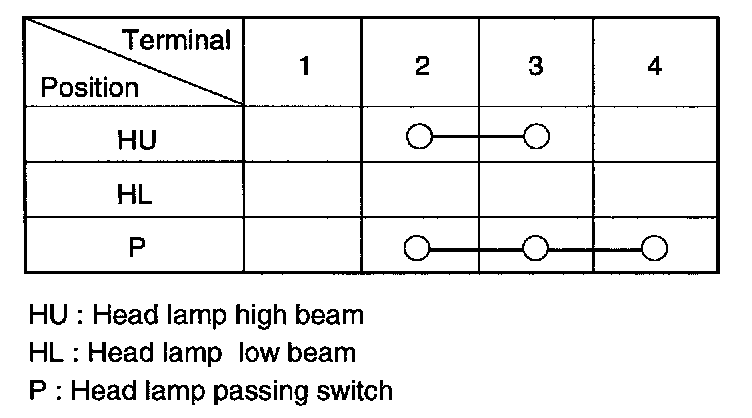

Dimmer And Passing Switch (Connector No.: M26-2):

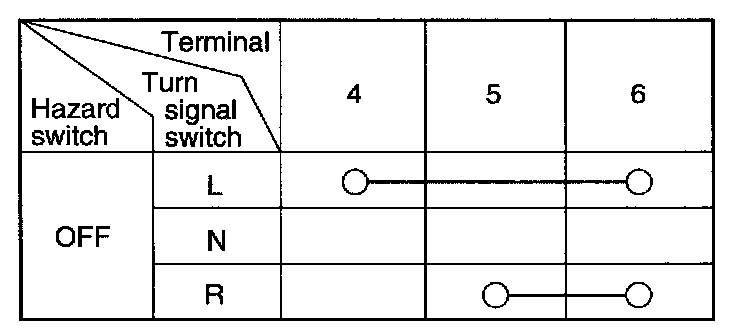

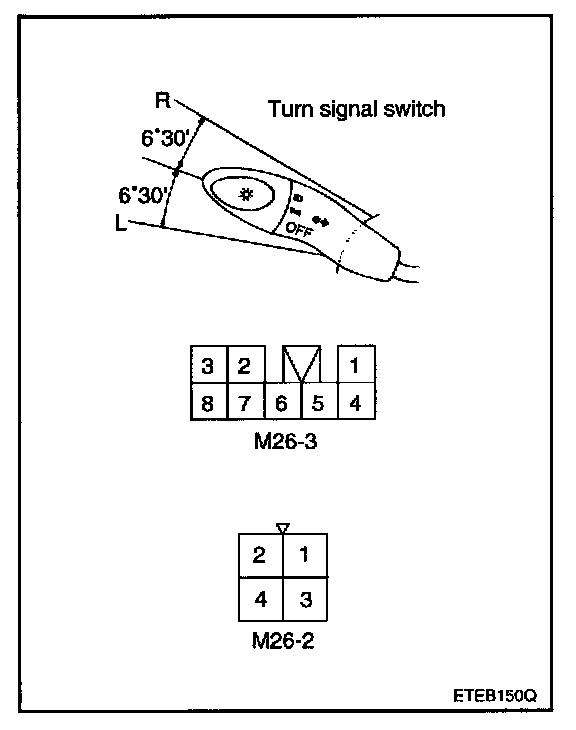

Turn Signal Switch (Connector No.: M26-3):

Wiper/Washer/Cruise Control Switch

Cruise Control Switch:

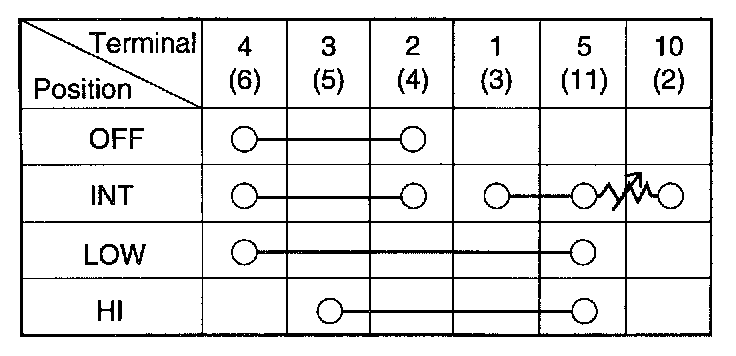

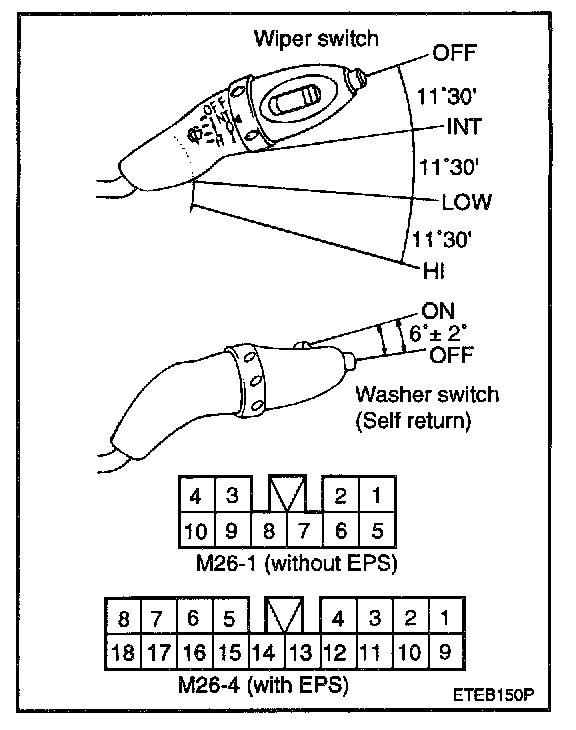

Wiper Switch (Connector No.: M26-1 Without EPS) (M26-4 With EPS):

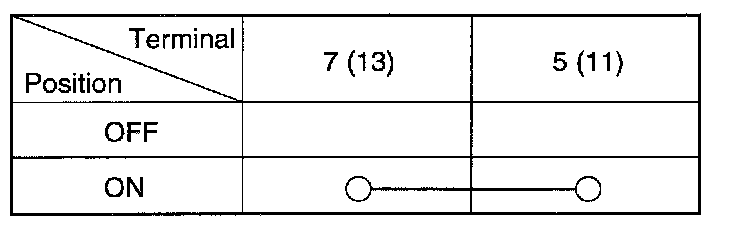

Washer Switch (Connector No.: M26-1 M26-4)):

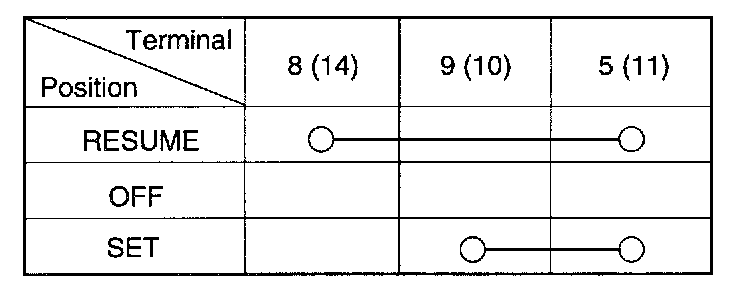

Cruise Control Switch (Connector No.: M26-1 (M26-4)):
