Horn: Service and Repair
1.
Loosen the
turn signal lamp
mounting screw and remove the turn signal lamp.
2.

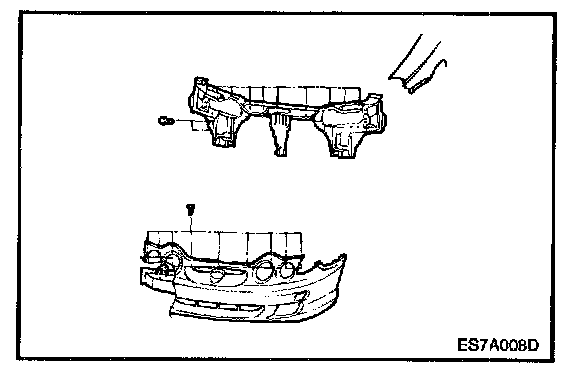

Remove the front bumper.
3.

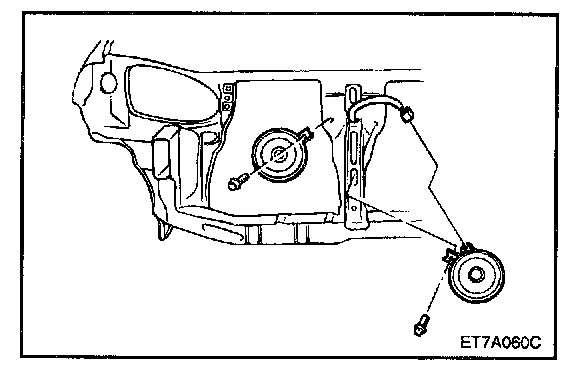

Remove the
horn
.
4.
Installation is the reverse of removal.
