Home >> Hyundai >> 2001 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

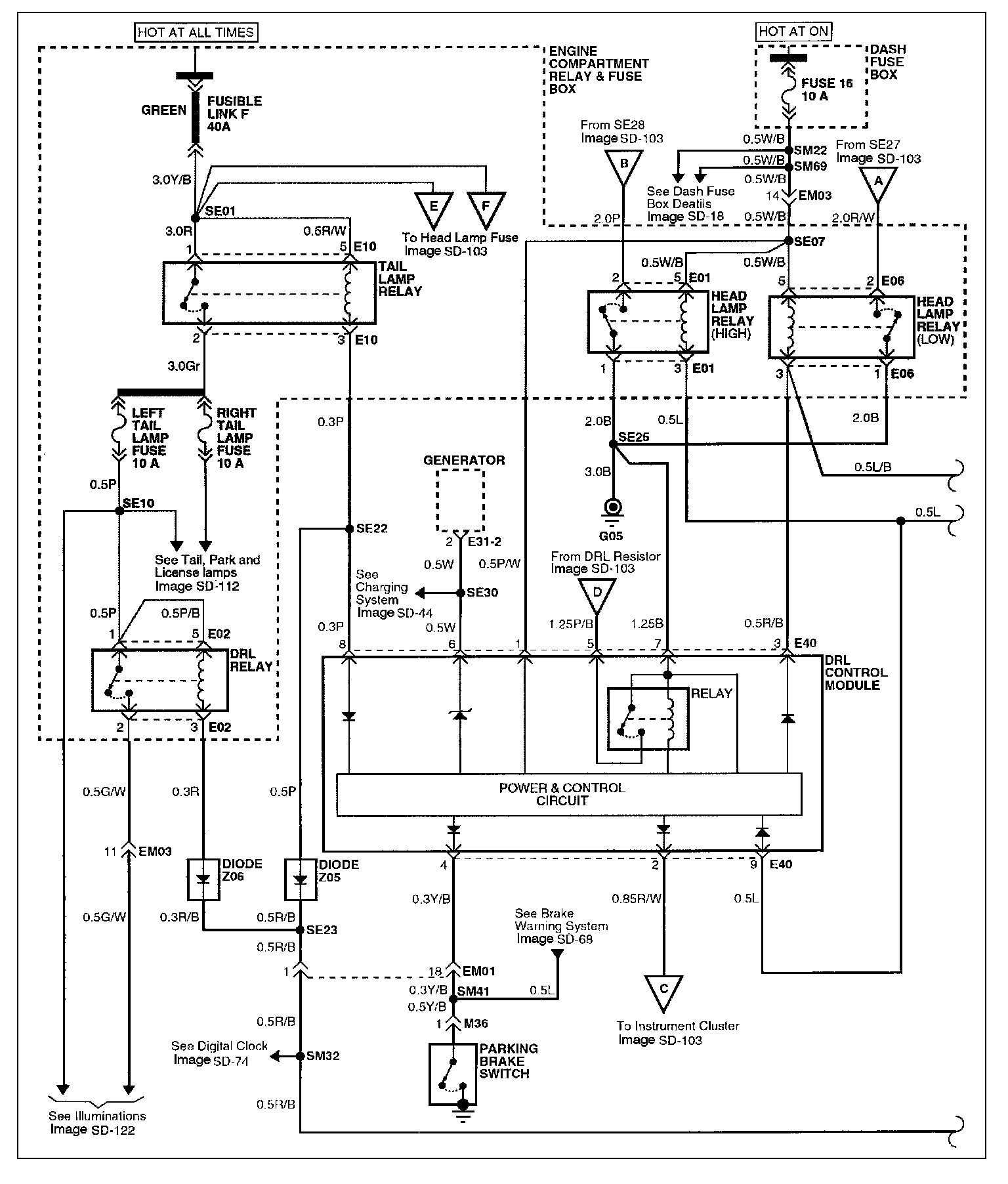

Image SD-102 -- Daytime Running Lights (1):

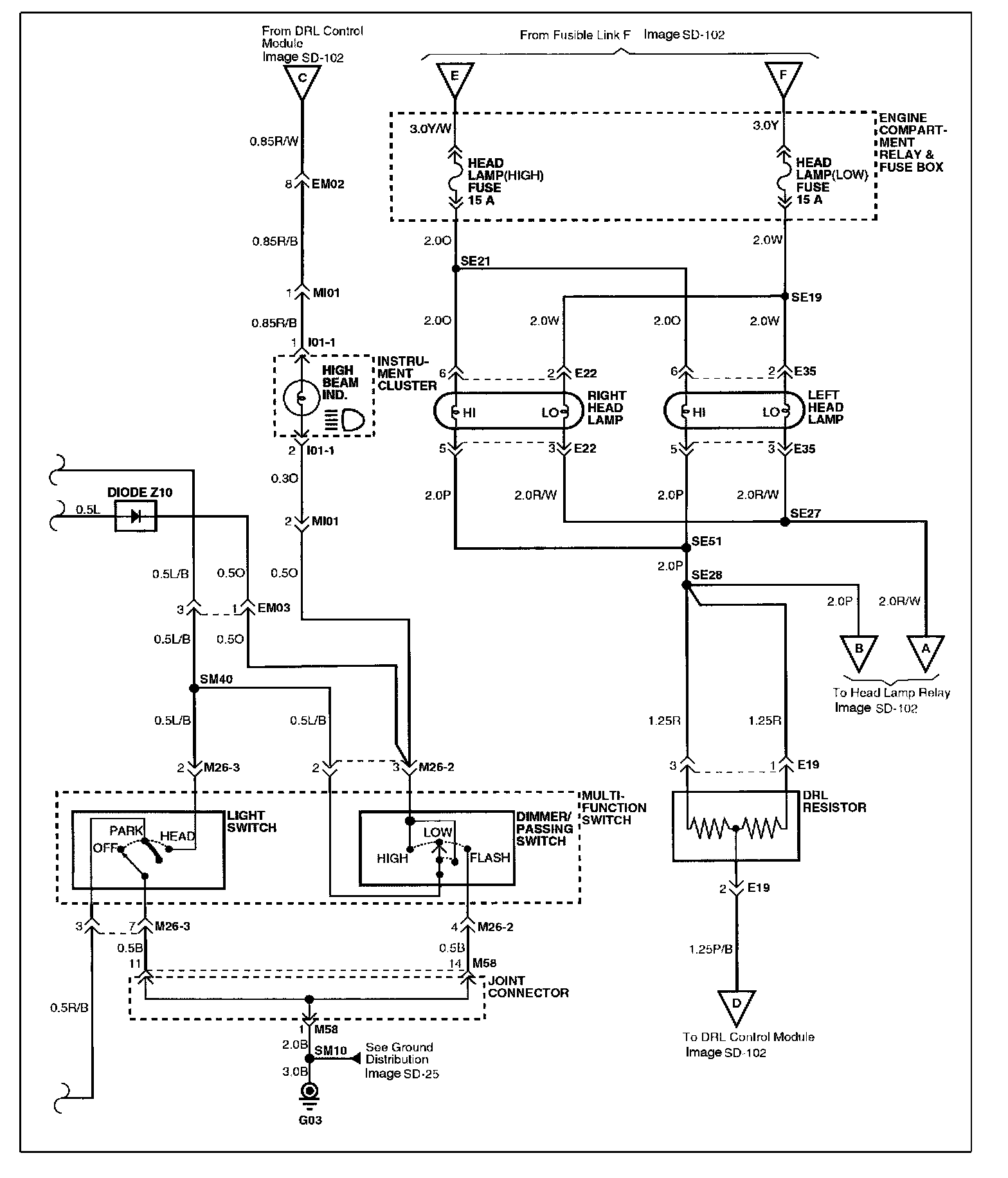

Image SD-103 -- Daytime Running Lights (2):

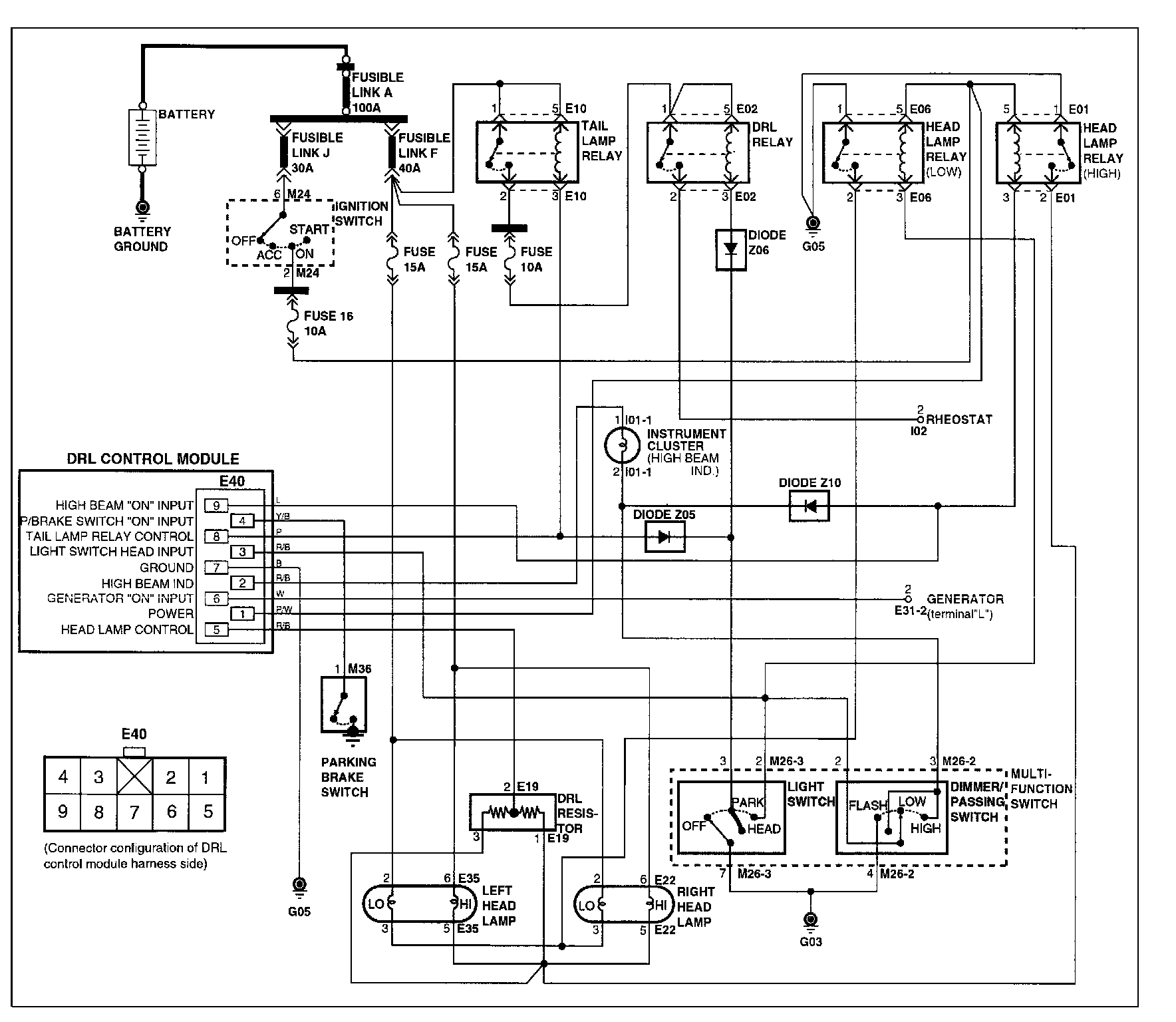

Image SD-104 -- Daytime Running Lights (3):
