Home >> Hyundai >> 2001 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Procedures >> Only Condenser Fan Does Not Run

Only Condenser Fan Does Not Run

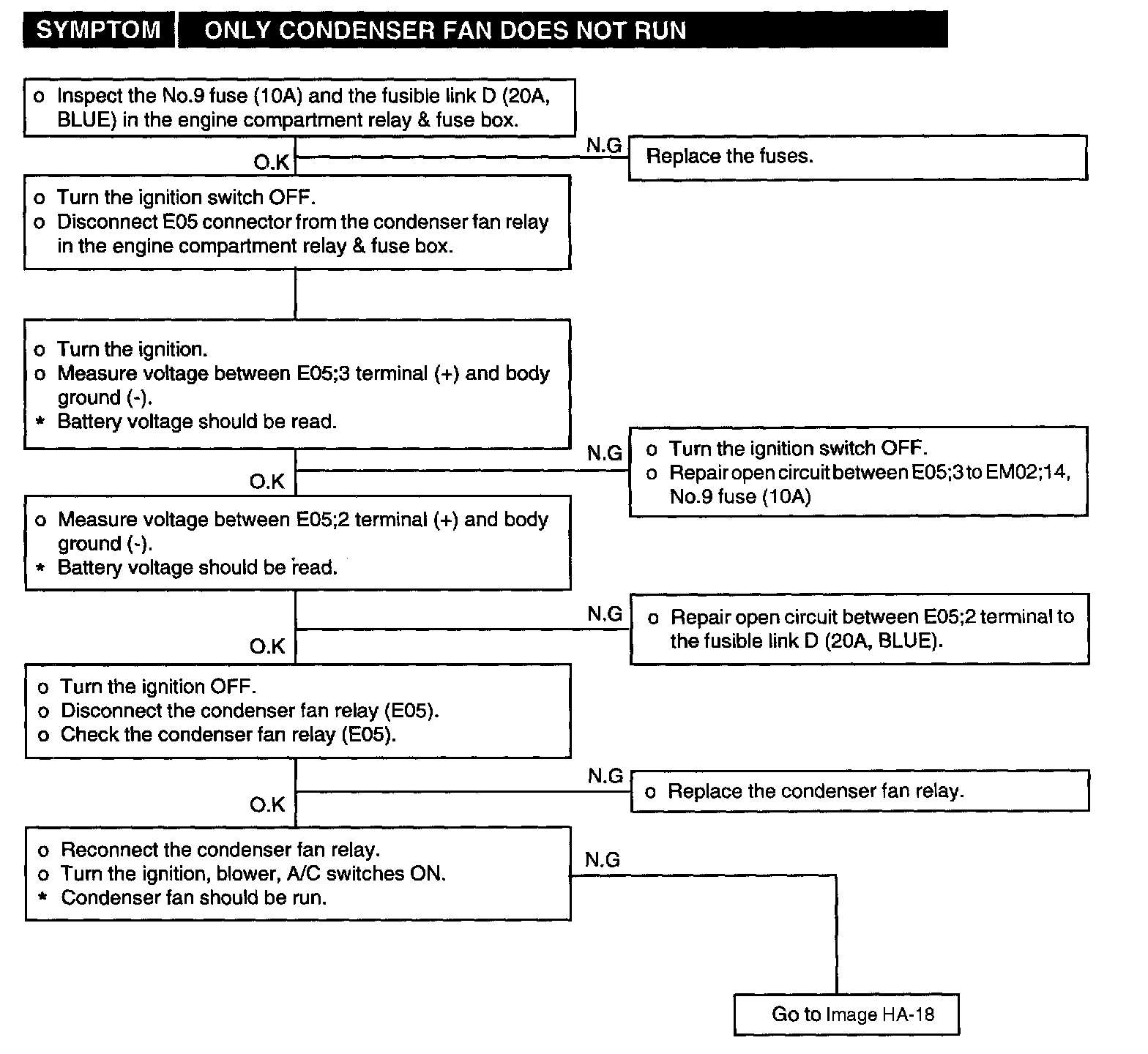

Image HA-17:

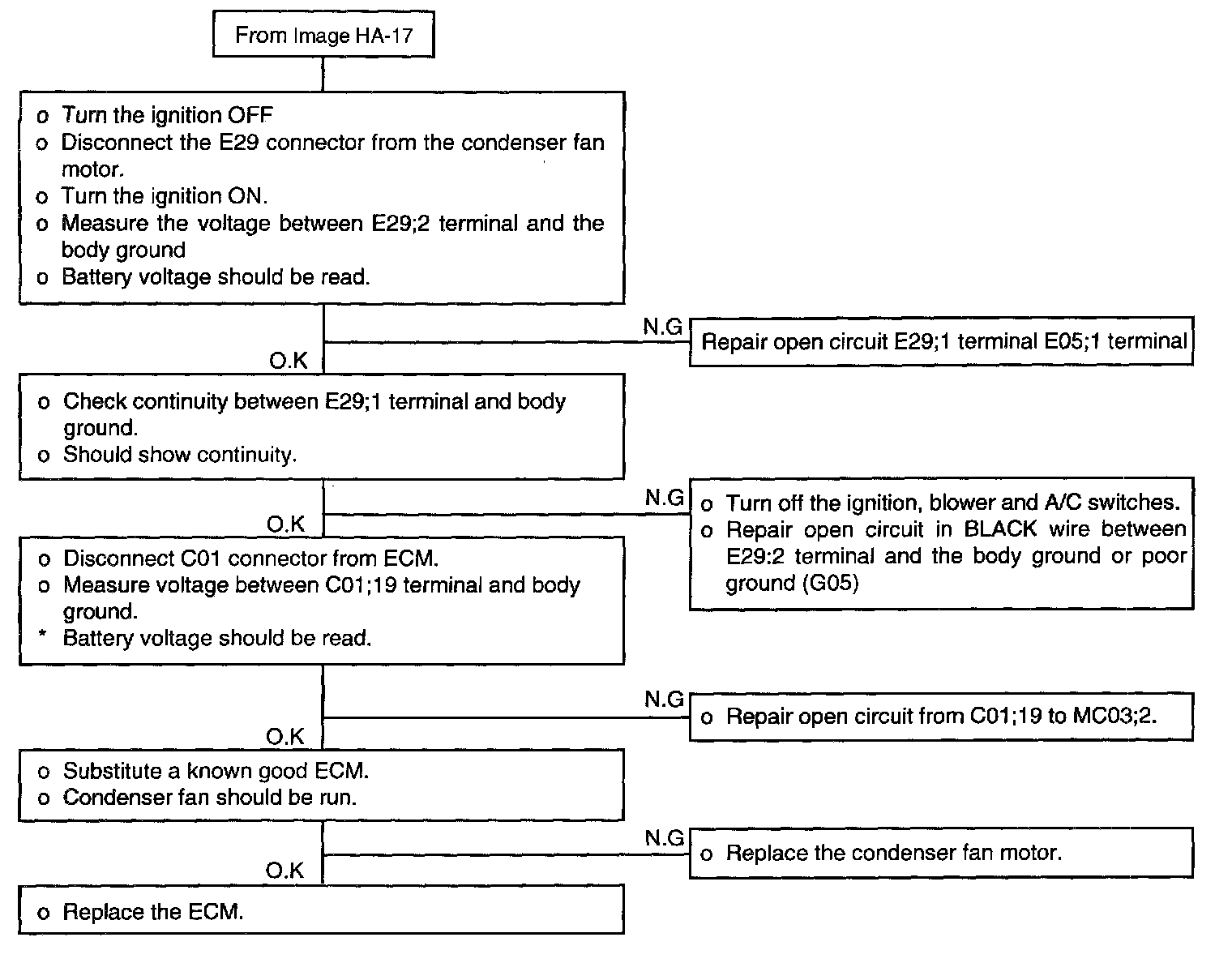

Image HA-18:
