Compressor Does Not Come on Even Though the Condenser Fan Runs
Compressor Does Not Come on Even Though the Condenser Fan Runs

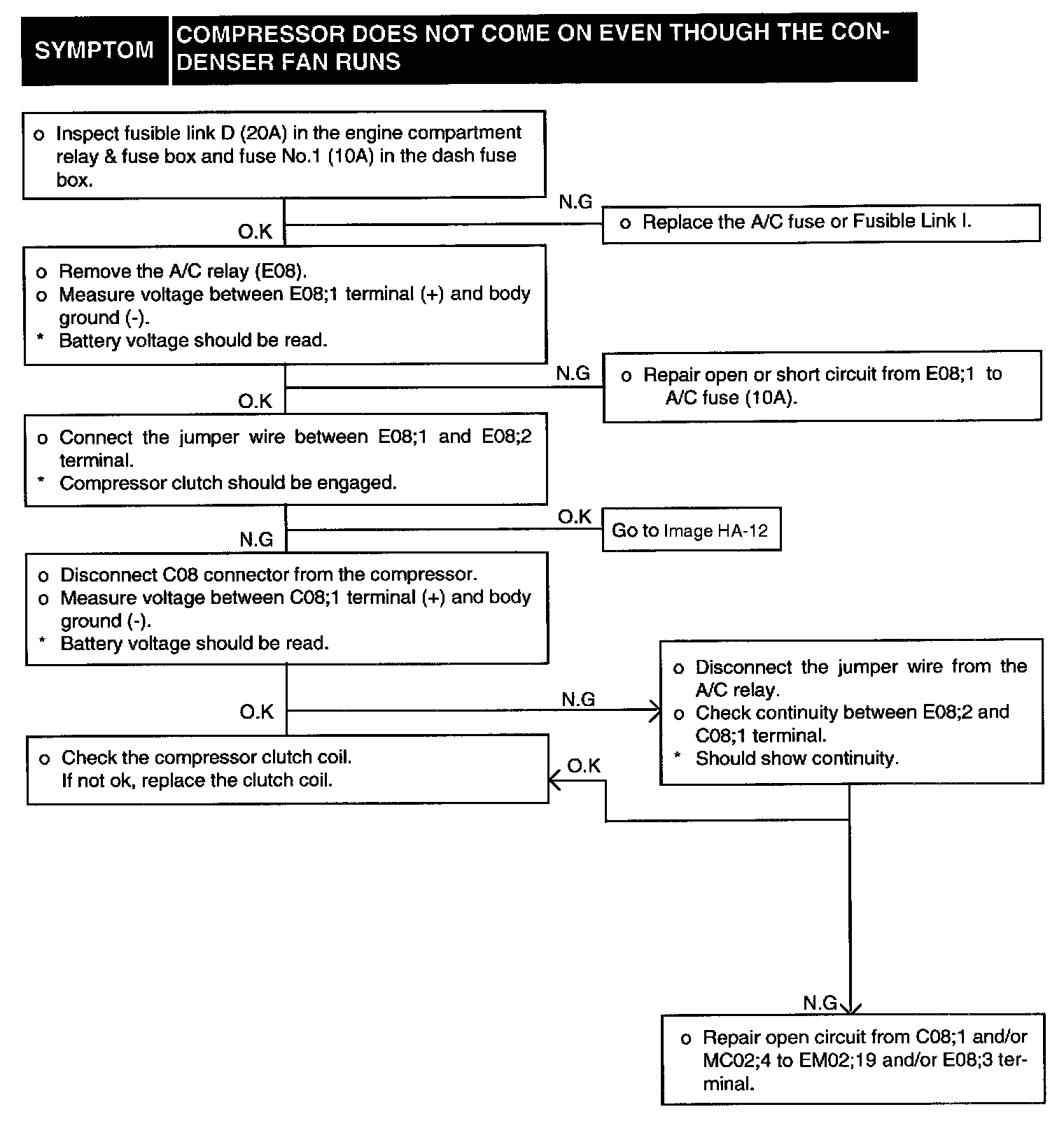

Image HA-11:

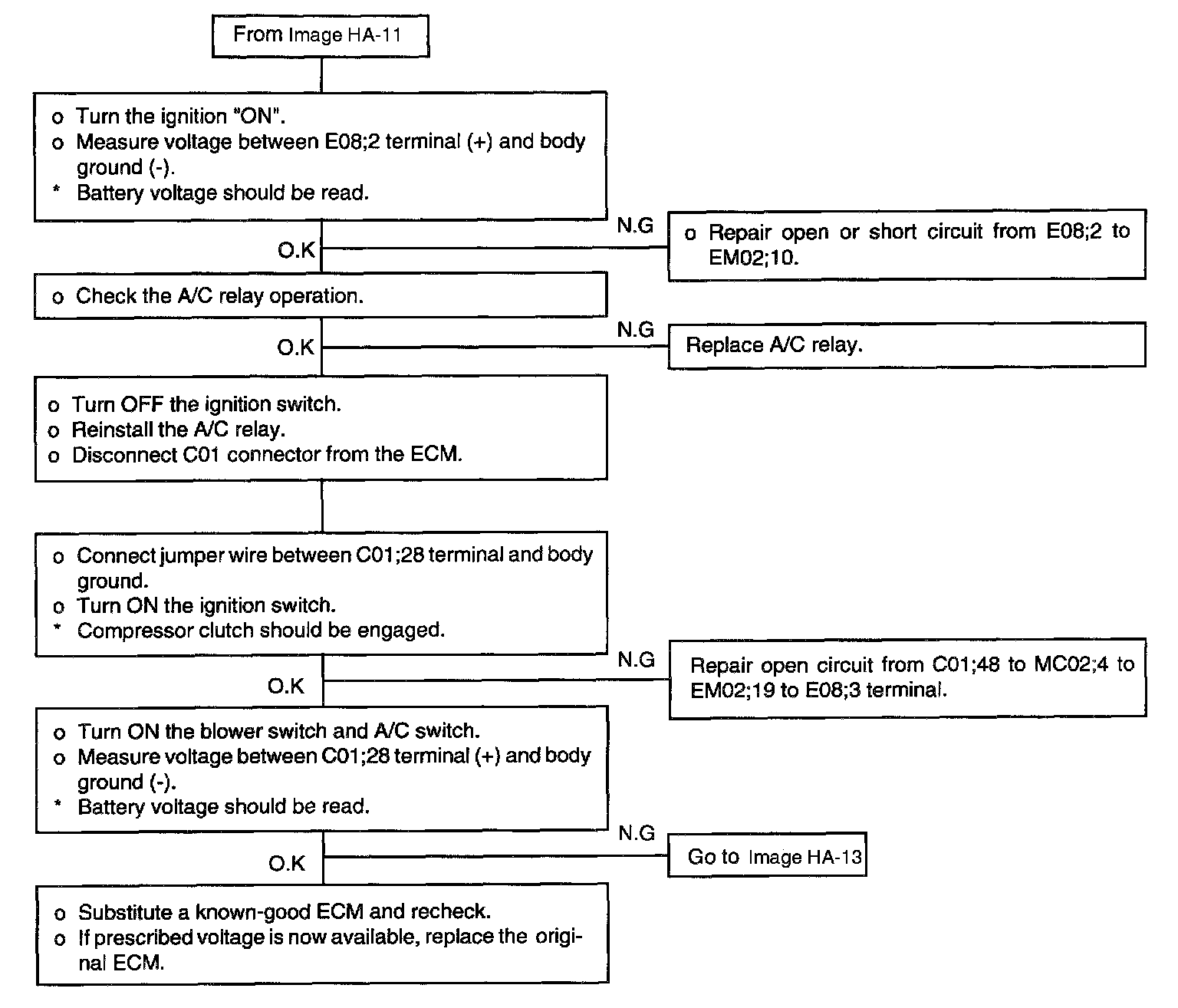

Image HA-12:

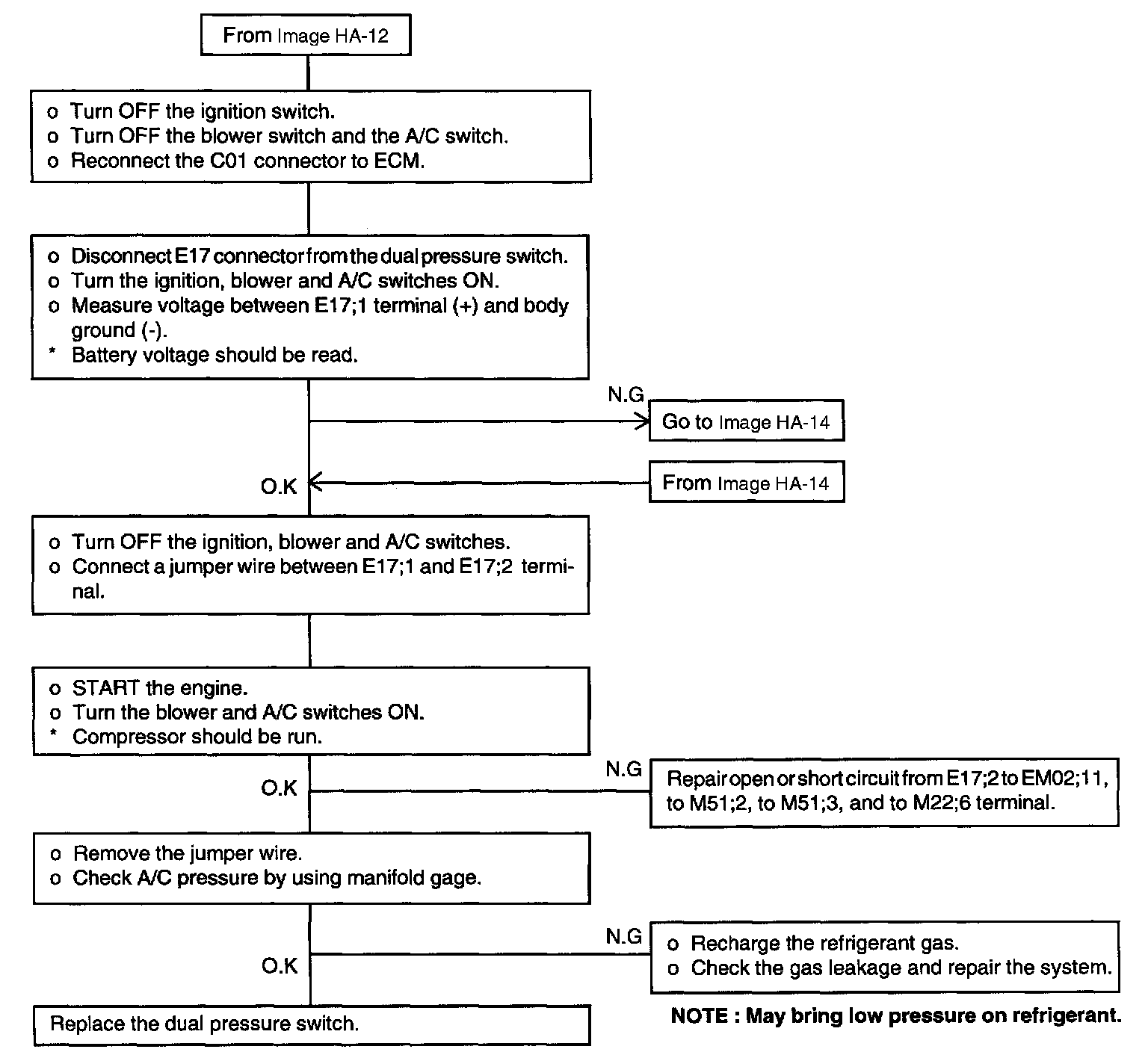

Image HA-13:

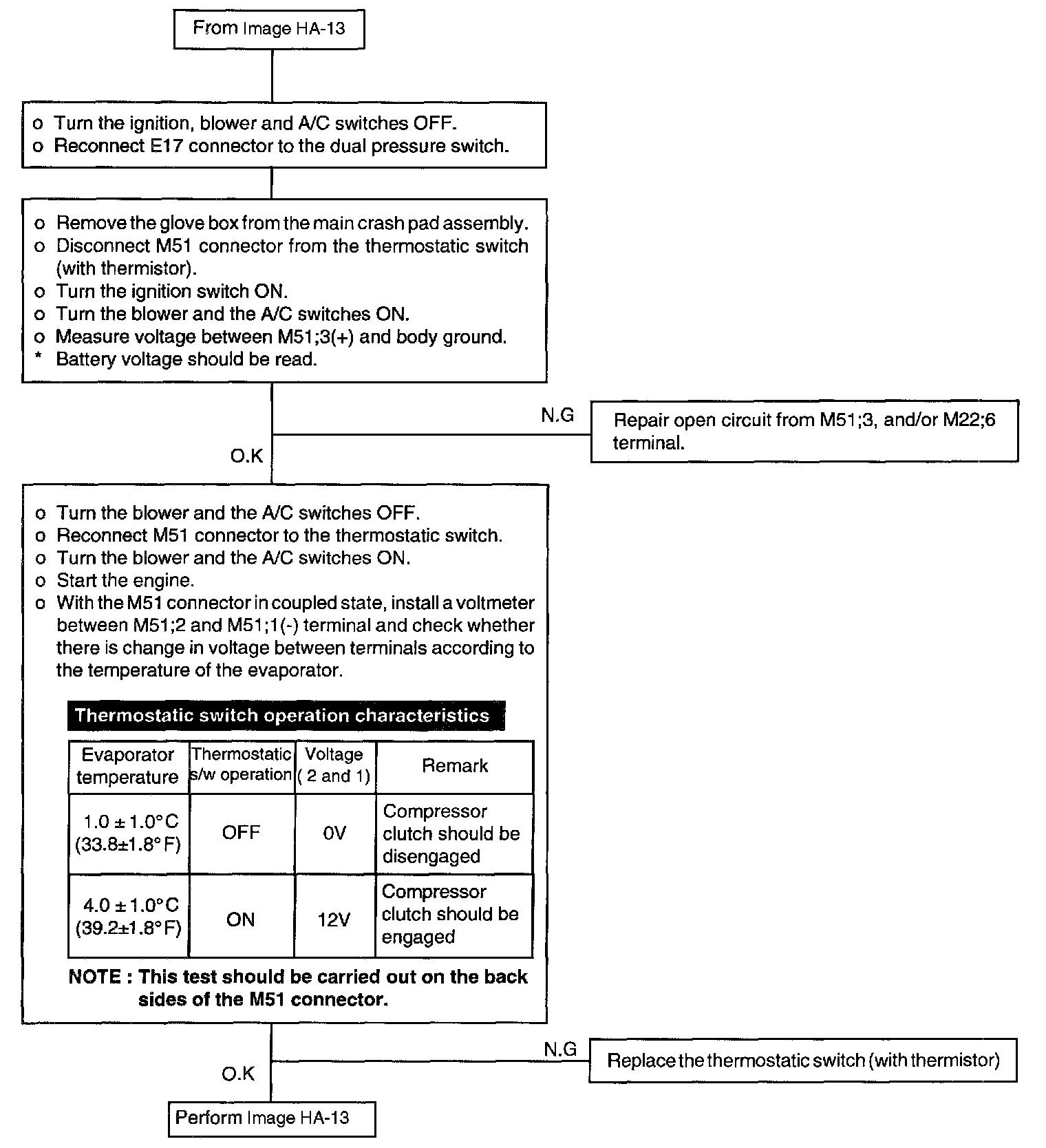

Image HA-14:
