Quick Troubleshooting Hints

QUICK TROUBLESHOOTING HINTS
1. Check the blower fuse (30 A) and fuse No.16 (10 A) for blower control system.

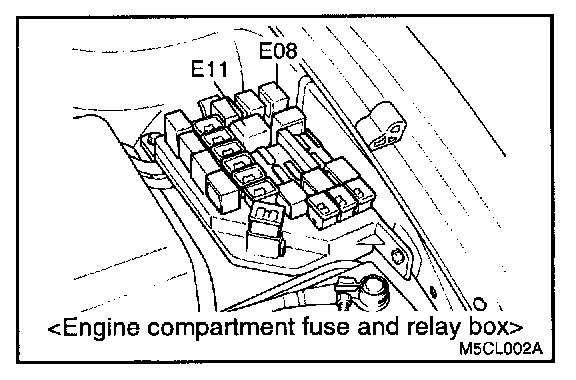

2. Check that blower relay (E11) is properly mounted in the engine compartment fuse and relay box.

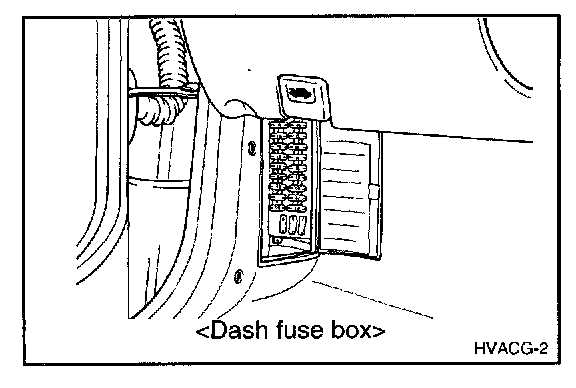

3. Check fuse No.1 (10 A) in the dash fuse box and A/C fuse (10 A) in the engine compartment relay & fuse box for A/C control system.
4. Check that A/C relay (E08) is properly mounted in engine compartment relay & fuse box.
5. Check that A/C system is properly charged.
6. Check fuse No.8 (20 A) in the dash fuse box and the Fusible Link D (BLUE, 20 A) in the engine compartment relay & fuse box for condenser fan control.
