Diagnostic Connector - Fuel Pump: Testing and Inspection




FUEL PUMP INSPECTION CONNECTOR

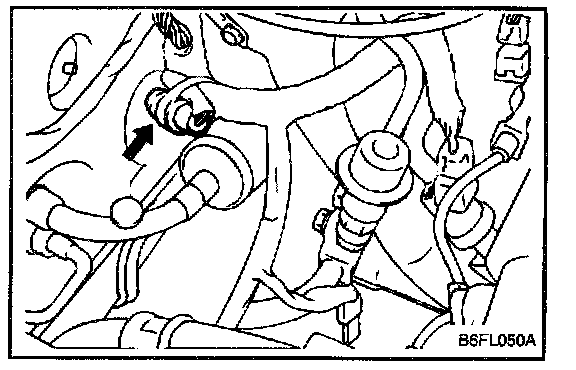

The fuel pump inspection terminal located in engine compartment is used to check the fuel pump operation by connecting battery voltage directly to the terminal.

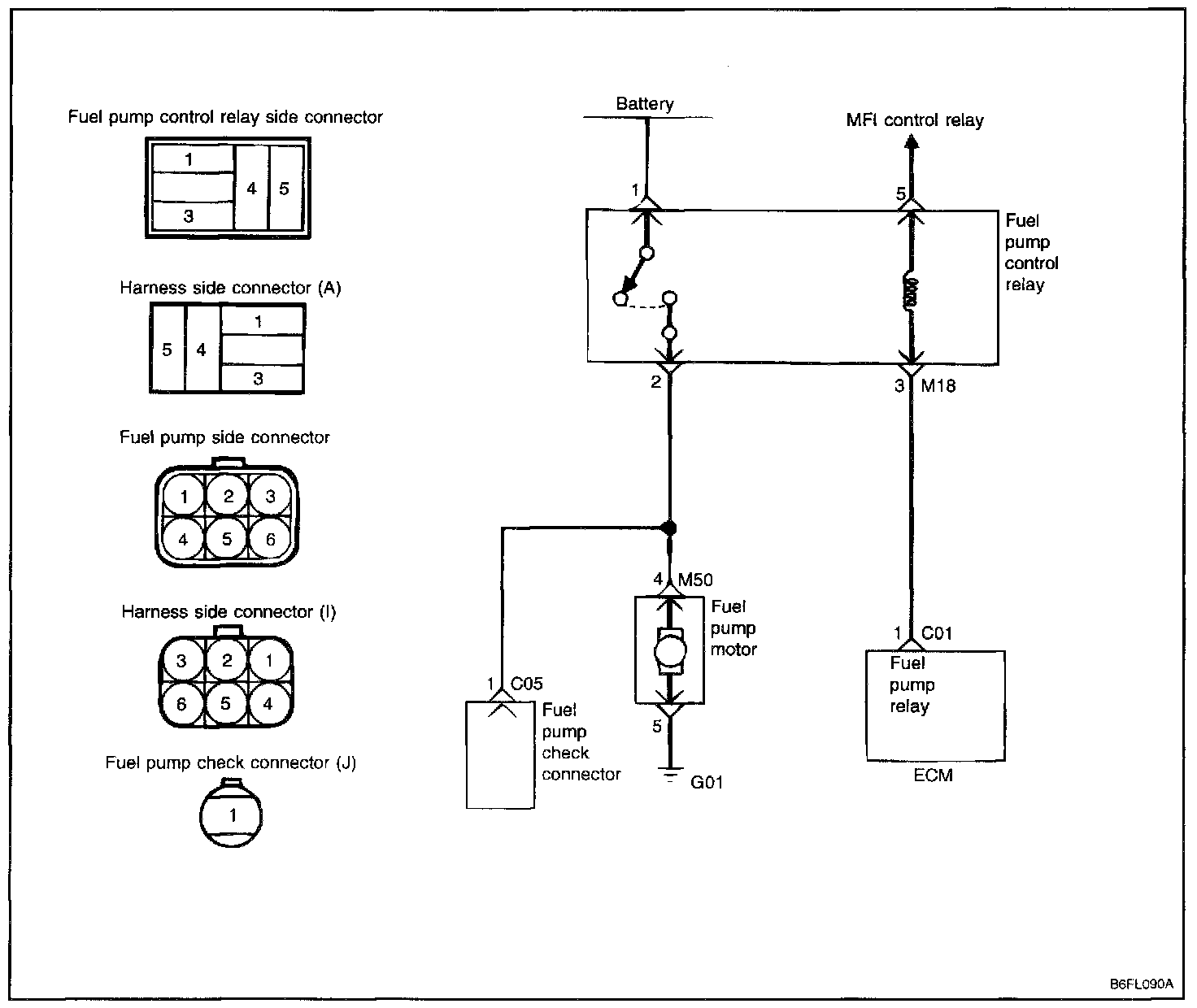

Circuit Diagram:

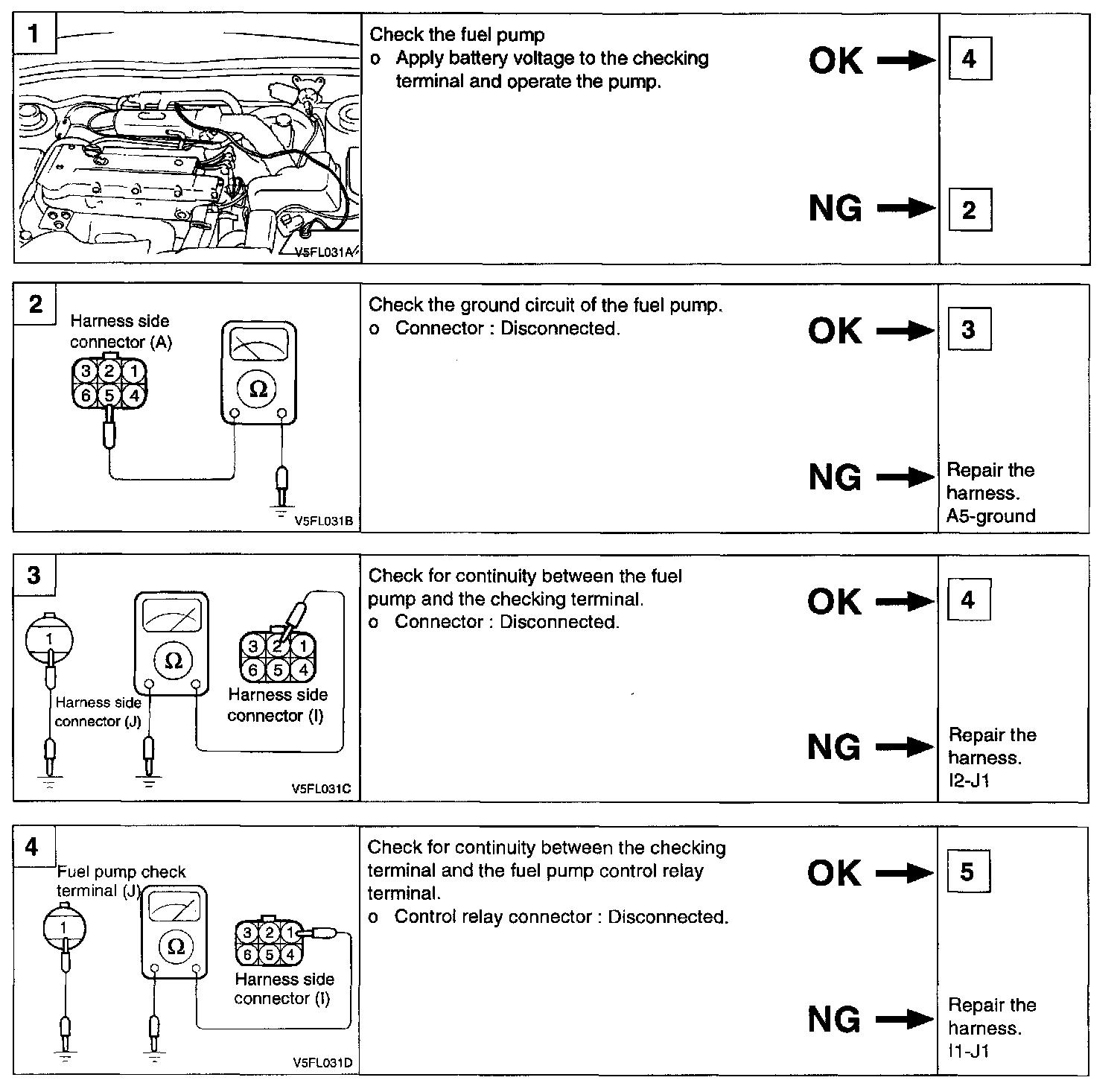

Harness Inspection Procedures 1 - 4:

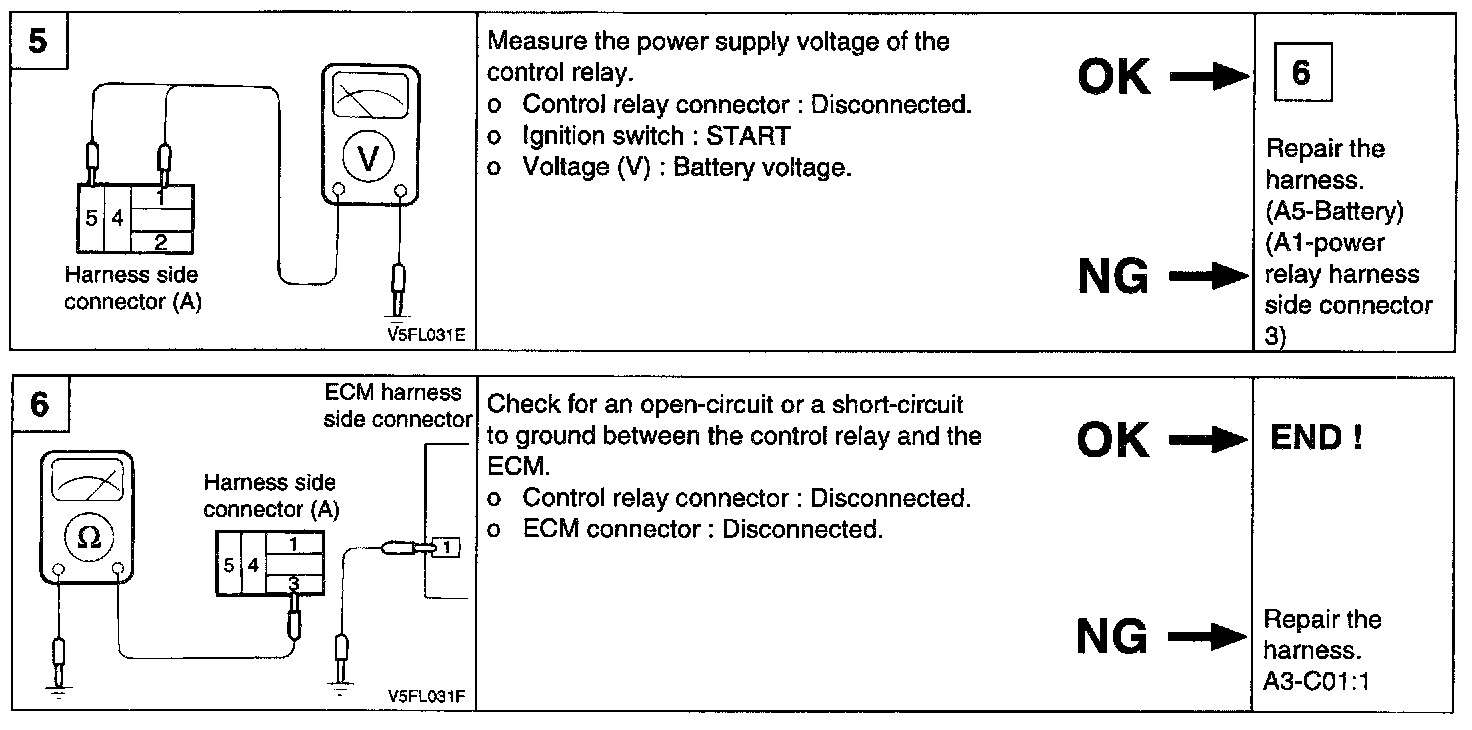

Harness Inspection Procedures 5 - 6:
