Canada - Engine - Head Bolt Torque Sequence

GROUP
ENGINE MECHANICAL

NO
01-20-003

DATE
DECEMBER 21101

MODEL
2001 TIBURON

SUBJECT
HEAD BOLT TORQUE SEQUENCE
-SHOP MANUAL CORRECTION -

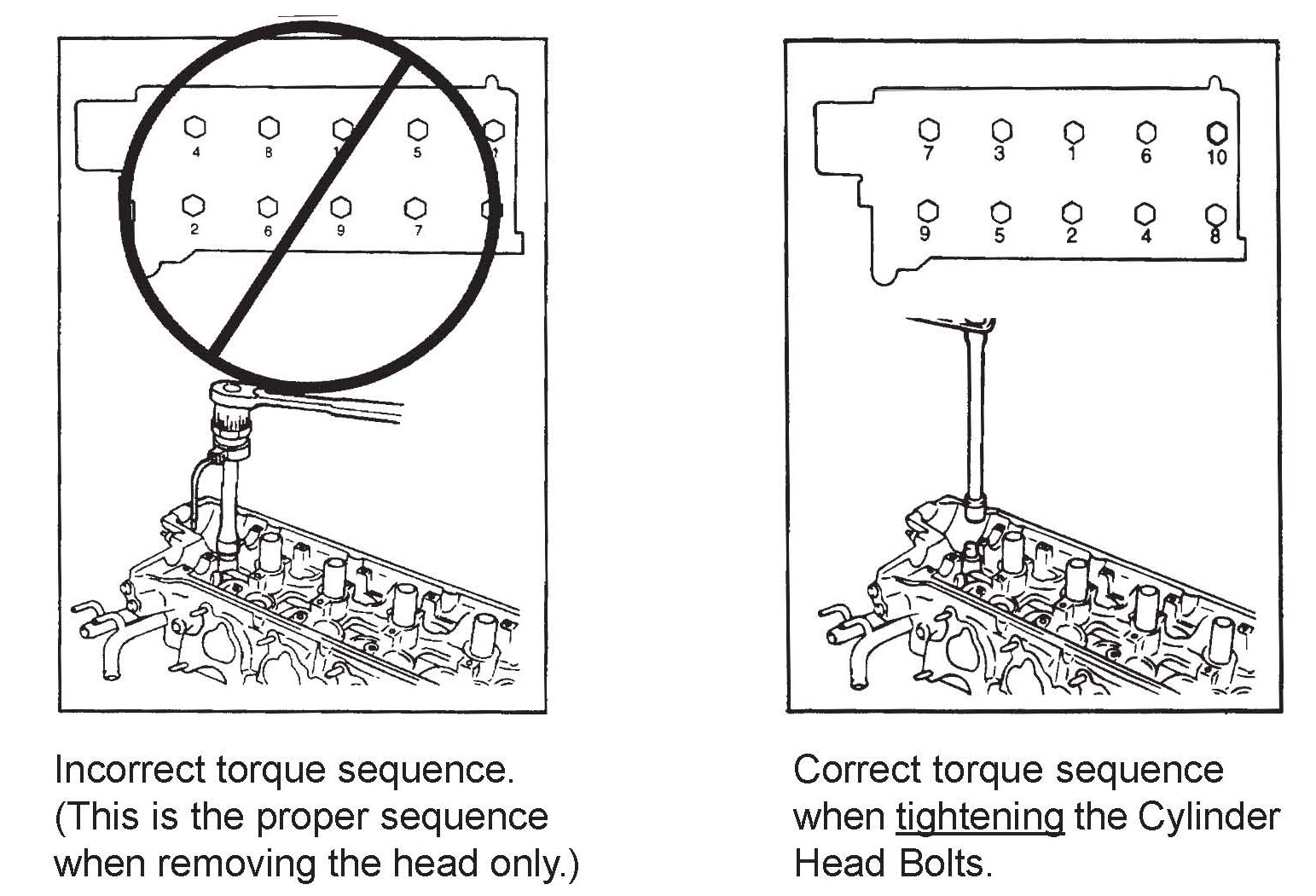

This bulletin is issued to inform you of the correct torque sequence when tightening Cylinder Head Bolts for the 2001 Tiburon.





Please note this TSB number and make the necessary correction on page EM-41 in your 2001 MY Tiburon Shop Manual for future reference.

Tightening Torque:

M10: 30 Nm (300 kg.cm, 22 lb.ft.) + 60° + 60°

M12: 35 Nm (350 kg.cm, 26 lb.ft.) + 60° + 60°
