Home >> Hyundai >> 2001 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Disassembly and Reassembly >> Double Offset Joint - Birfield Joint

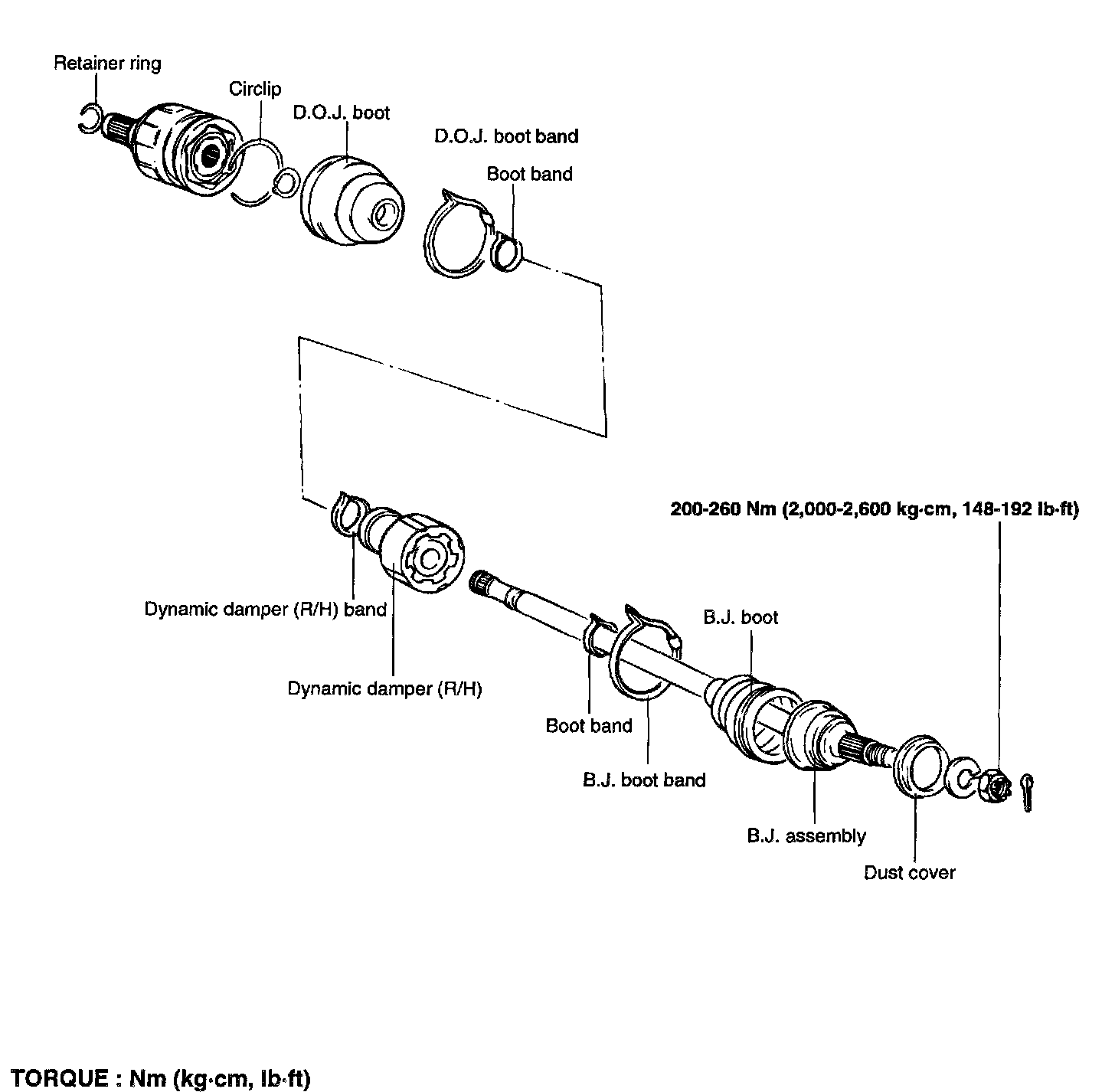

Double Offset Joint - Birfield Joint
