Trunk Lamp

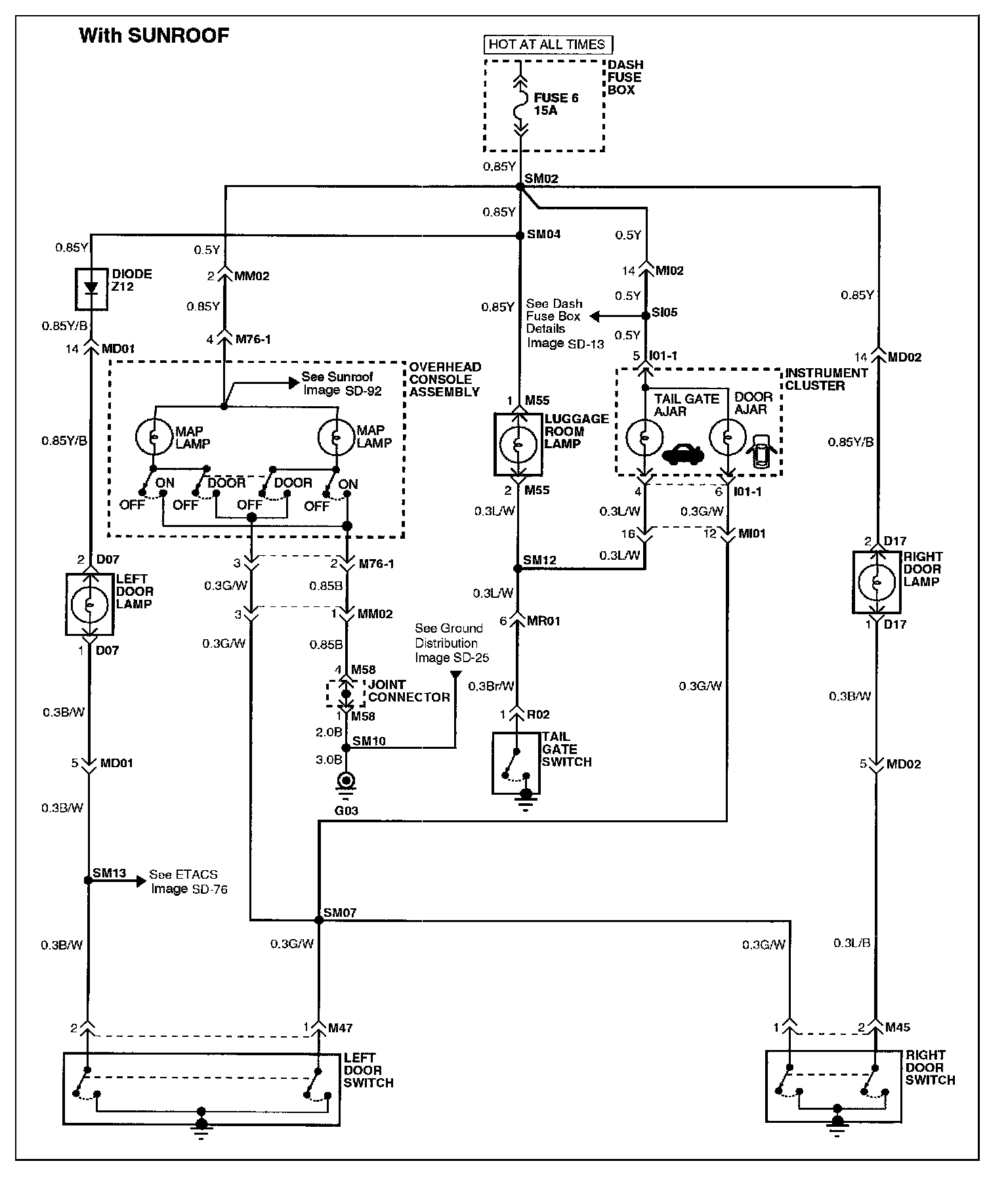

Image SD-118 -- Courtesy And Luggage Room Lamps (1):

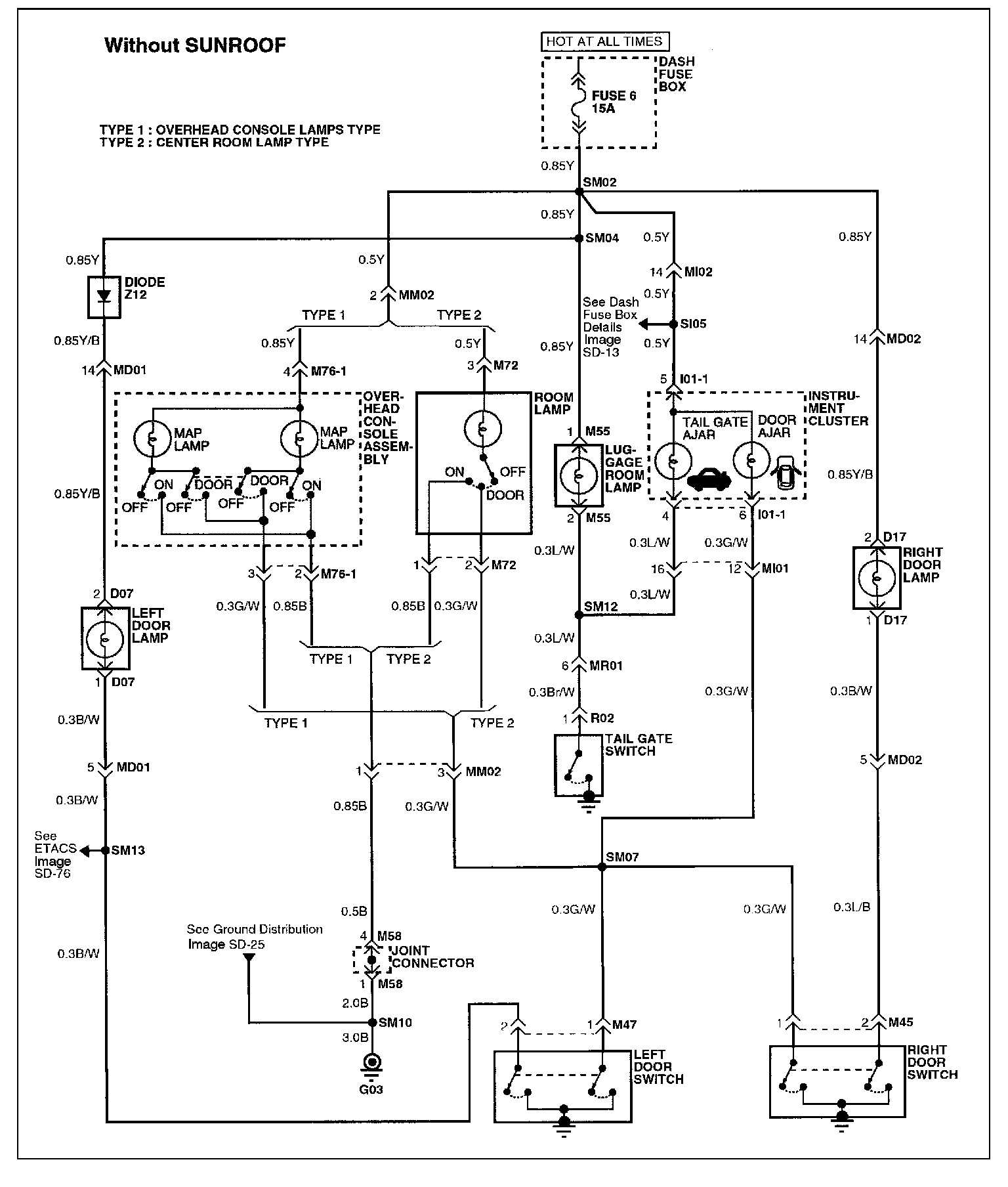

Image SD-119 -- Courtesy And Luggage Room Lamps (2):
