Fuse Block

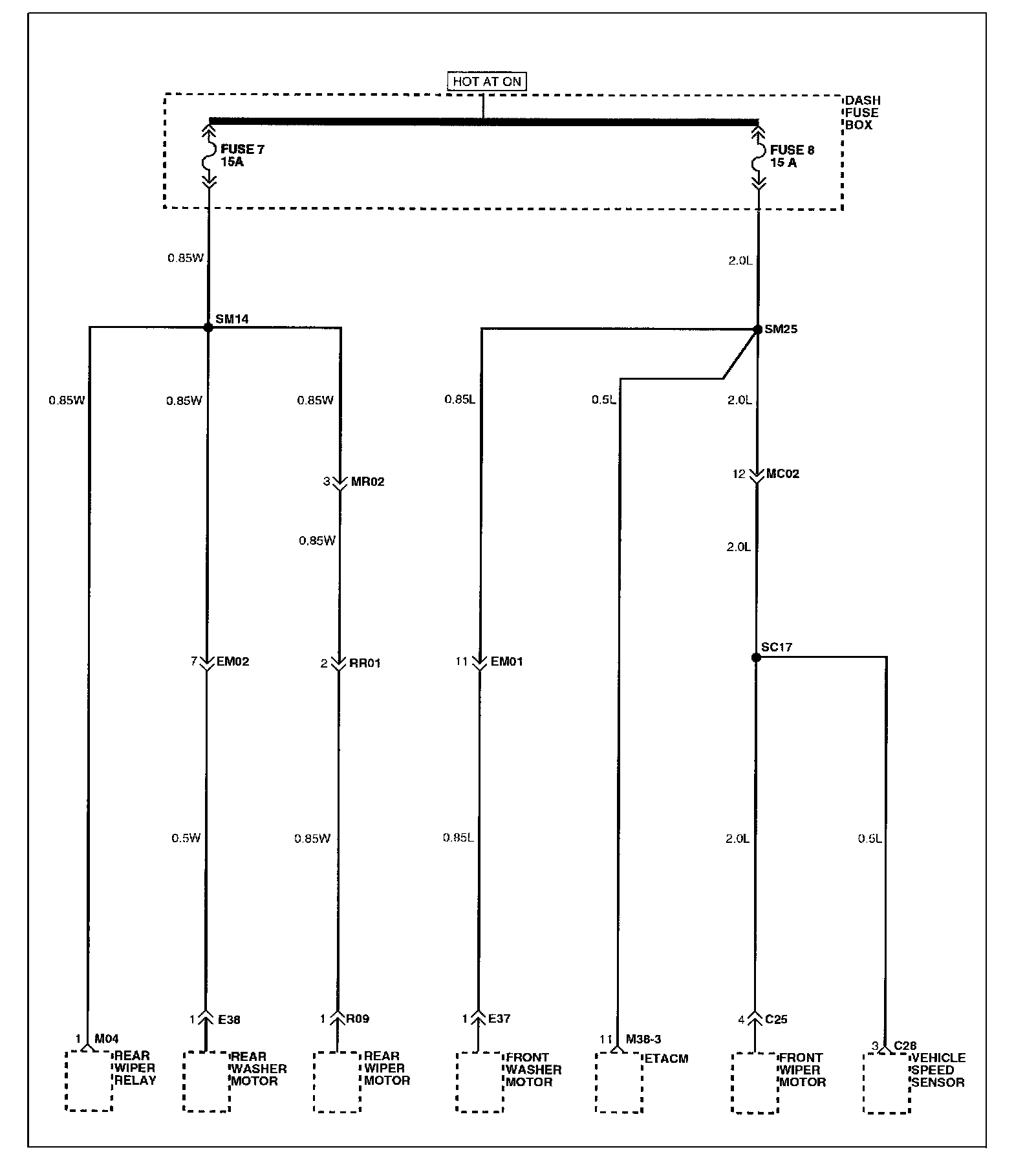

Image SD-12 -- Dash Fuse Box Details (1):

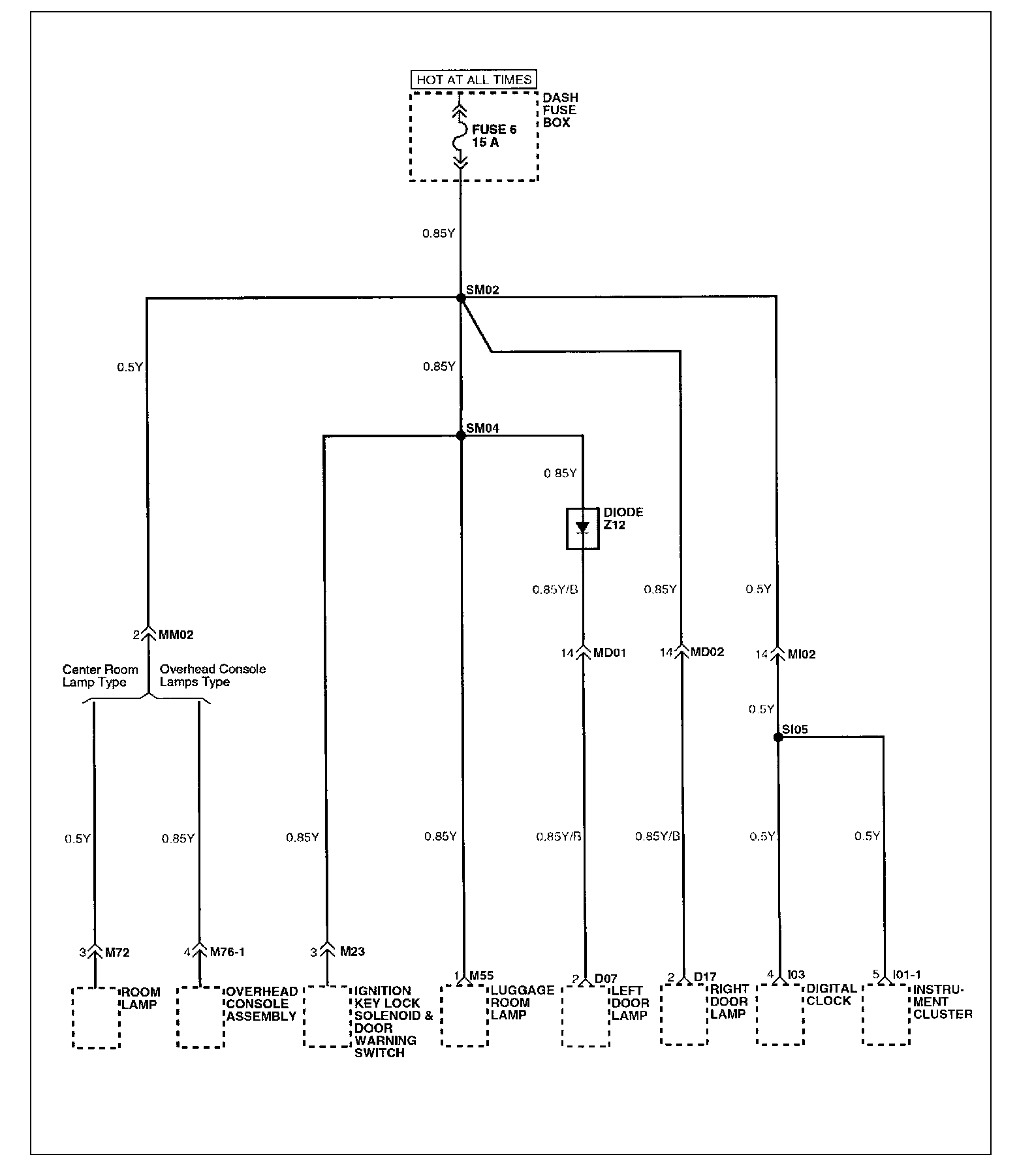

Image SD-13 -- Dash Fuse Box Details (2):

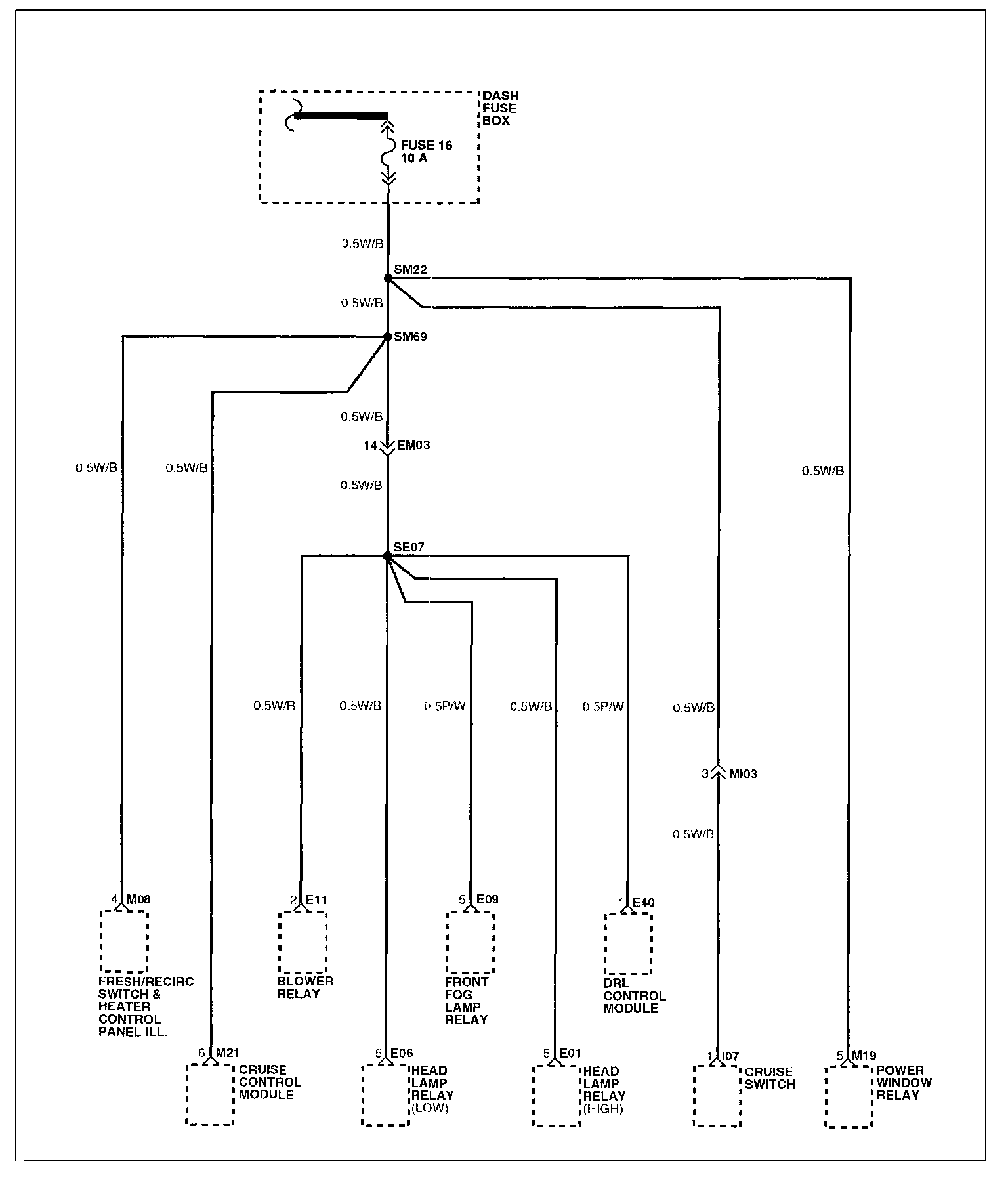

Image SD-14 -- Dash Fuse Box Details (3):

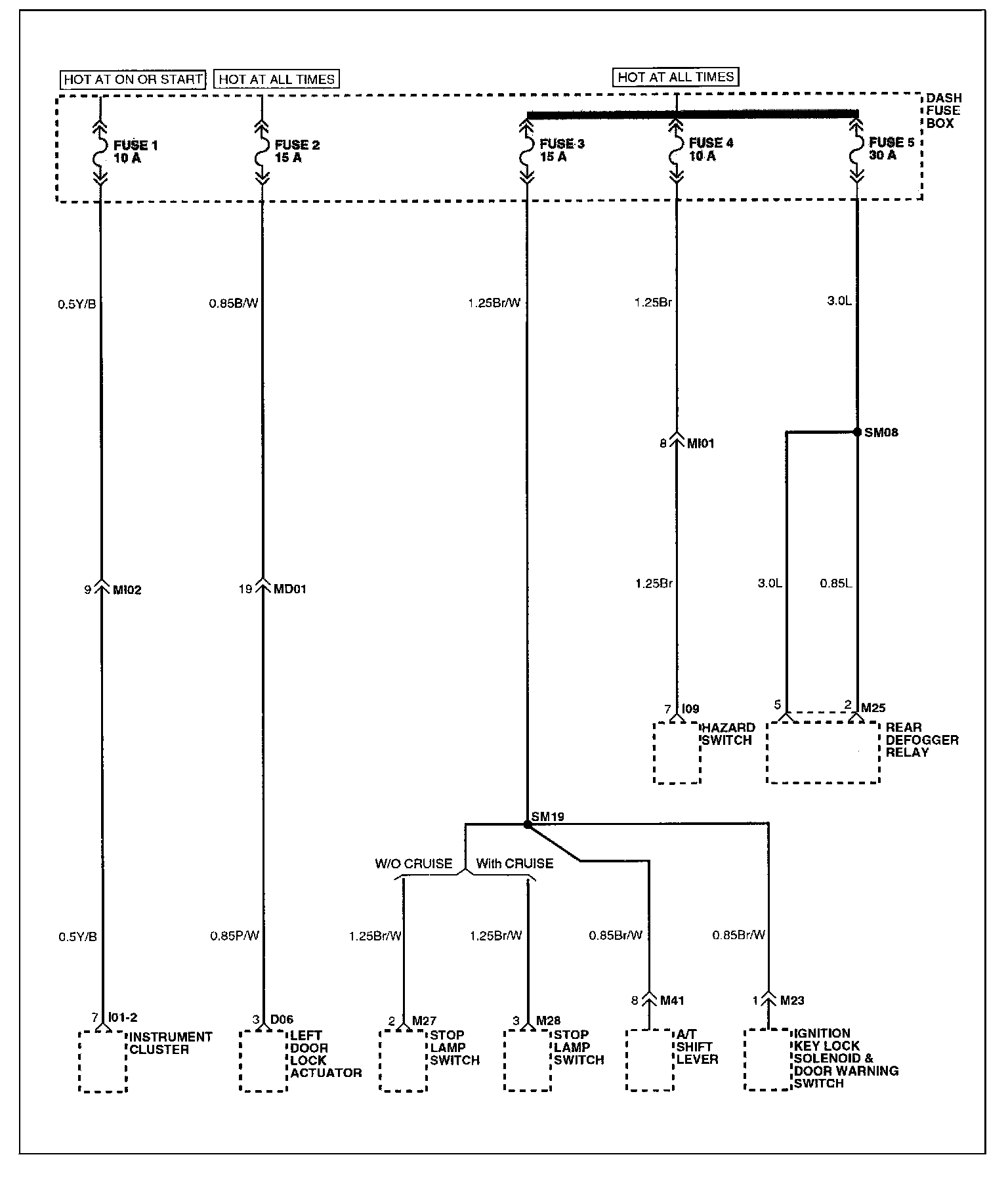

Image SD-15 -- Dash Fuse Box Details (4):

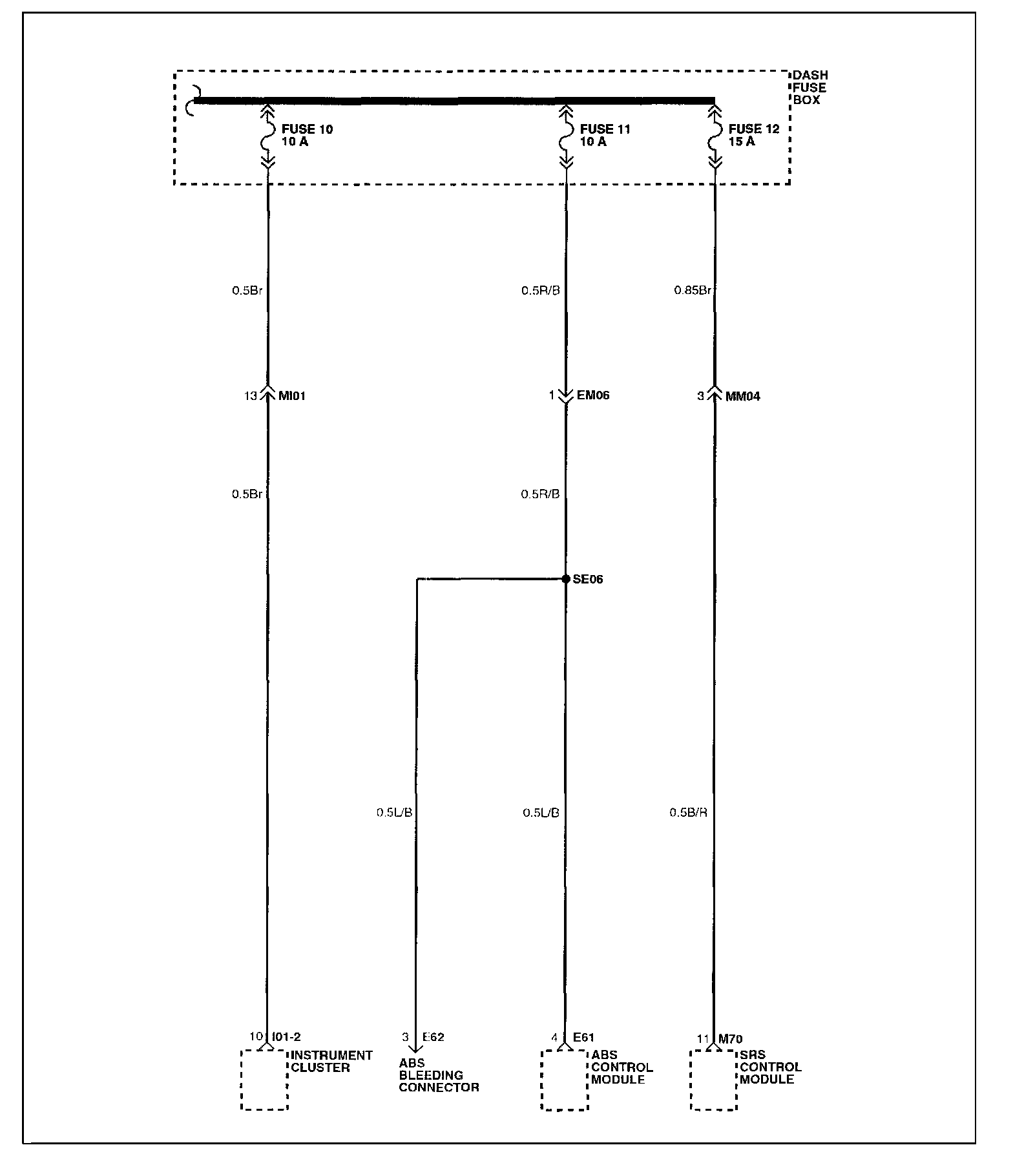

Image SD-16 -- Dash Fuse Box Details (5):

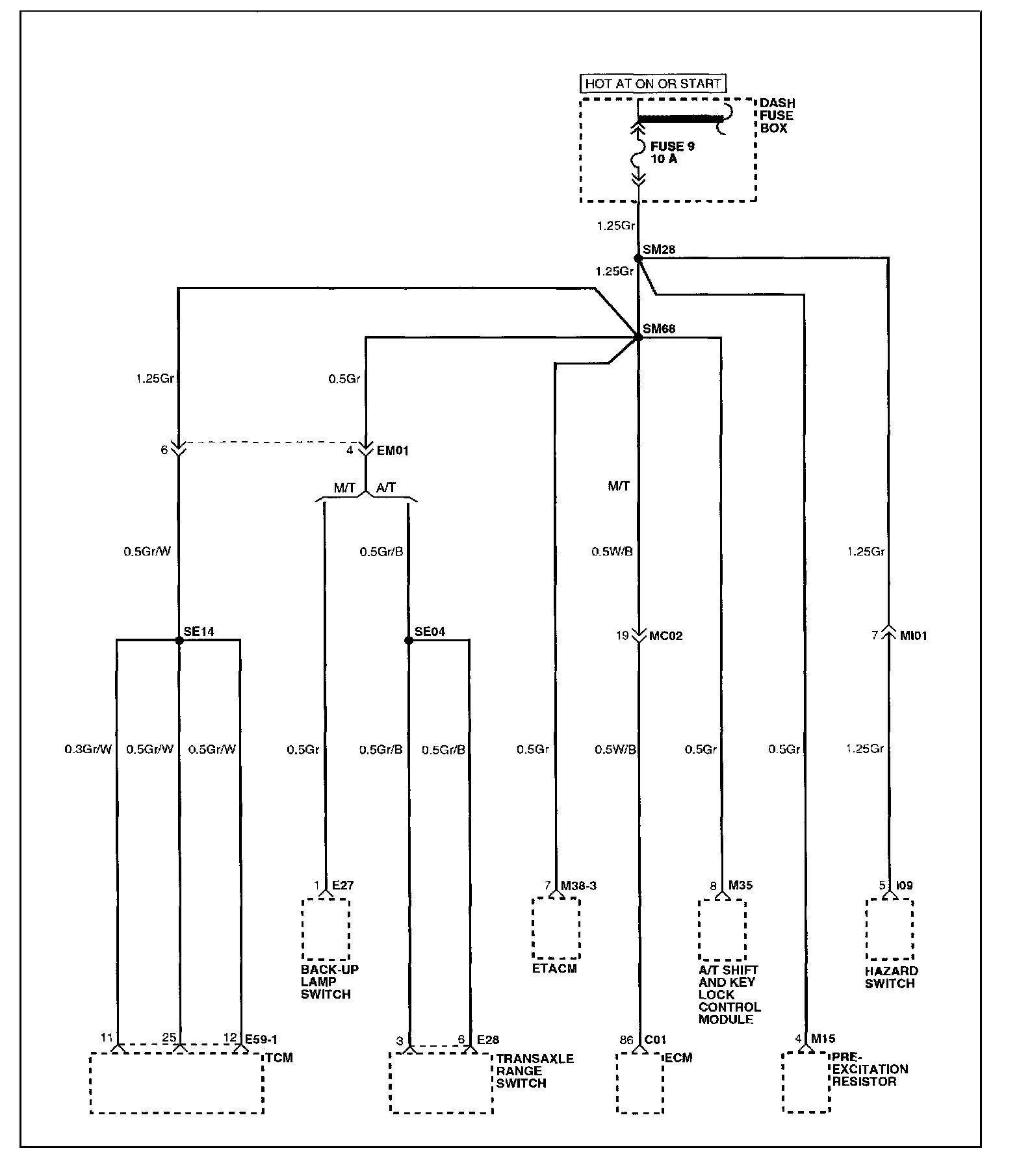

Image SD-17 -- Dash Fuse Box Details (6):

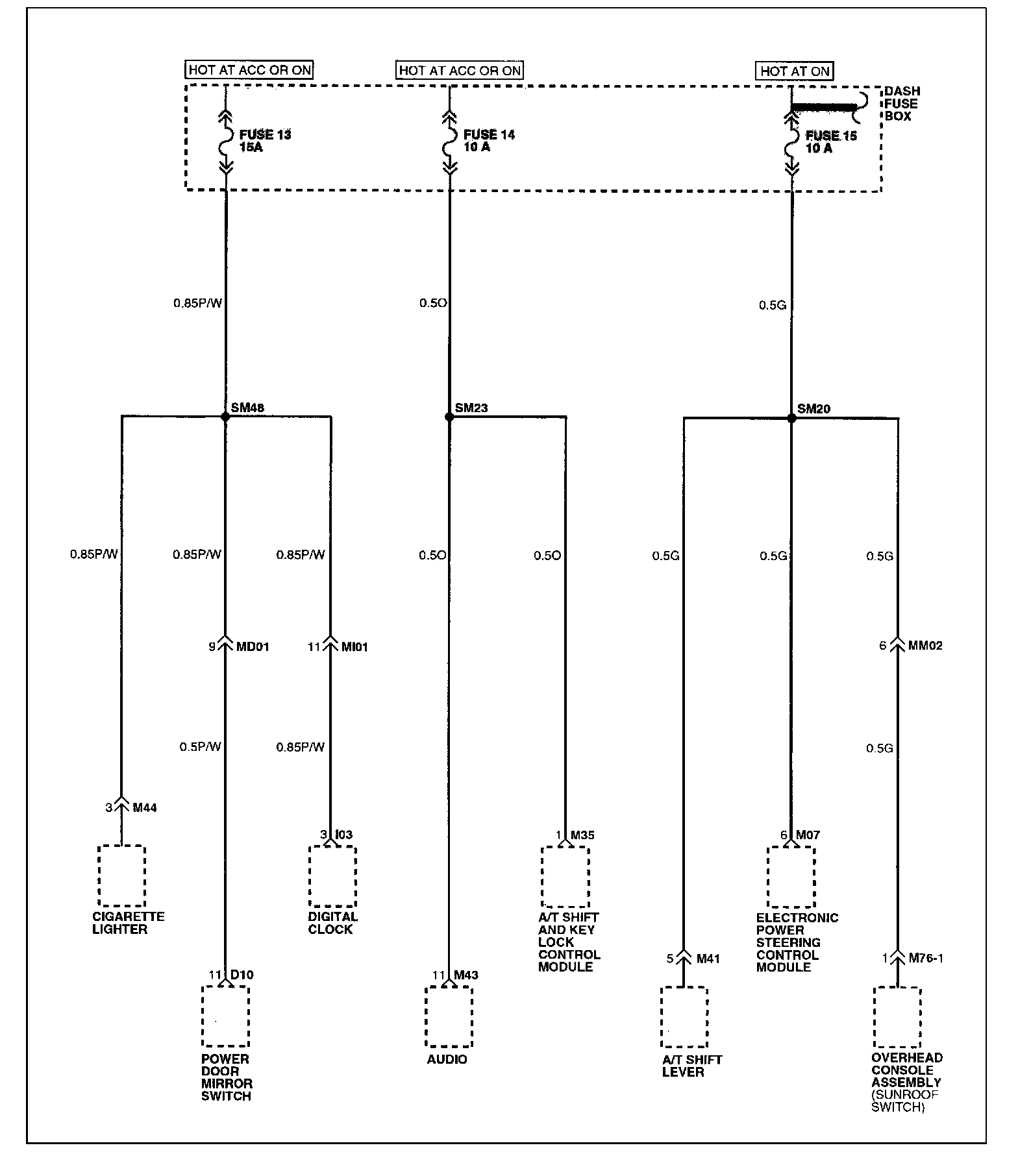

Image SD-18 -- Dash Fuse Box Details (7):
