Hyundai
>>
2001
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

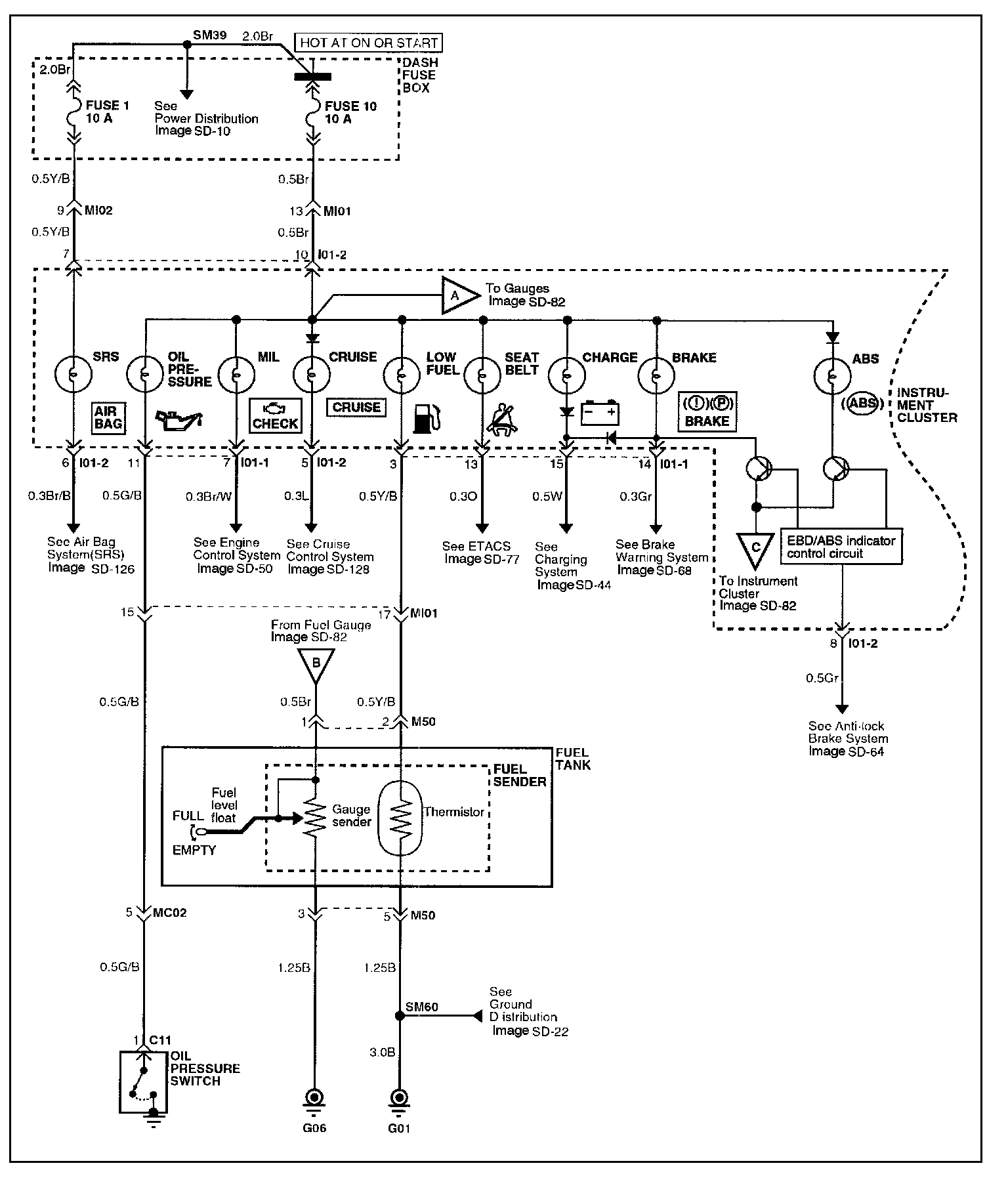

Image SD-80 -- Indicators And Gauges (1):

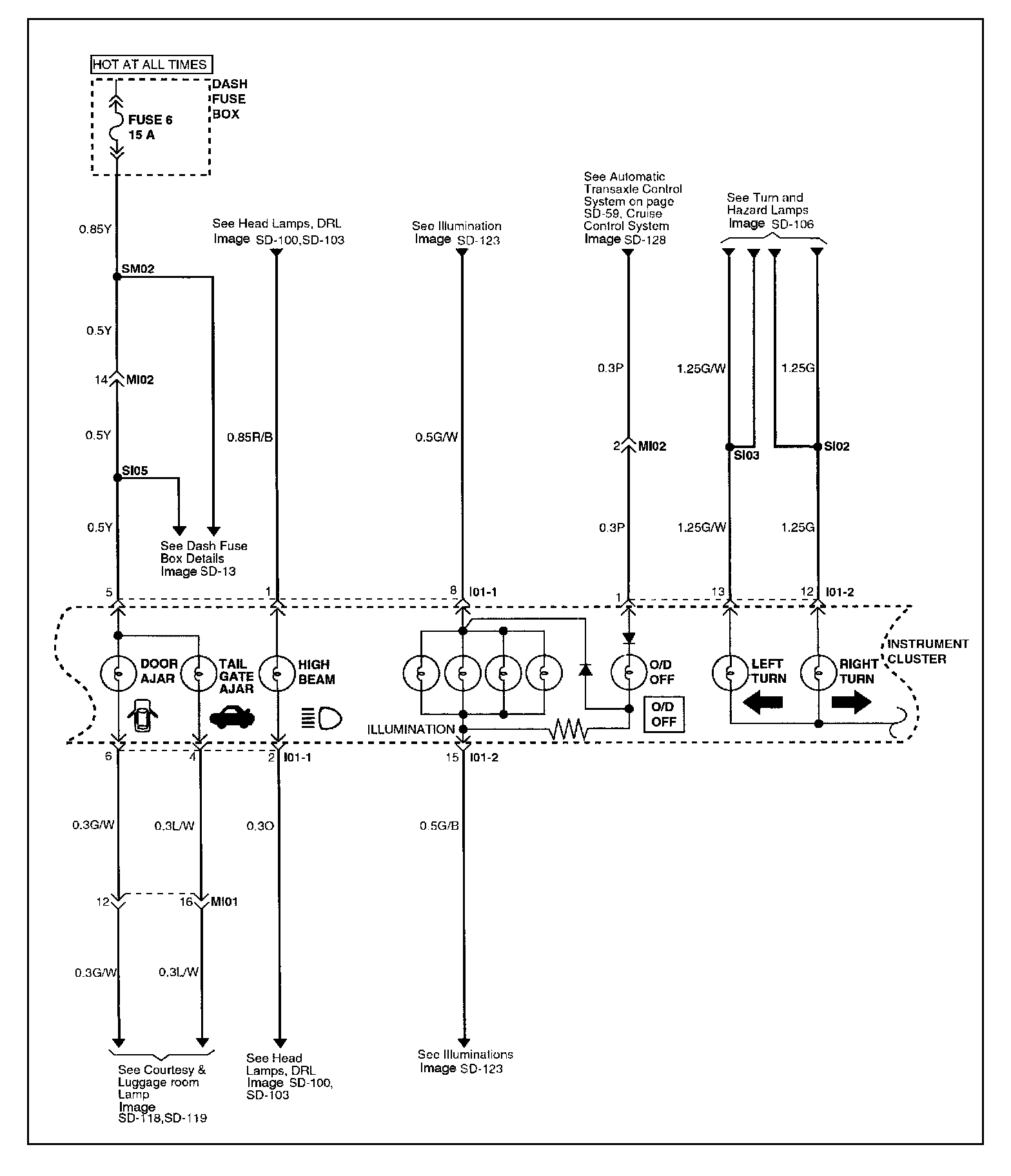

Image SD-81 -- Indicators And Gauges (2):
Image SD-82 -- Indicators And Gauges (3):
