System Diagram

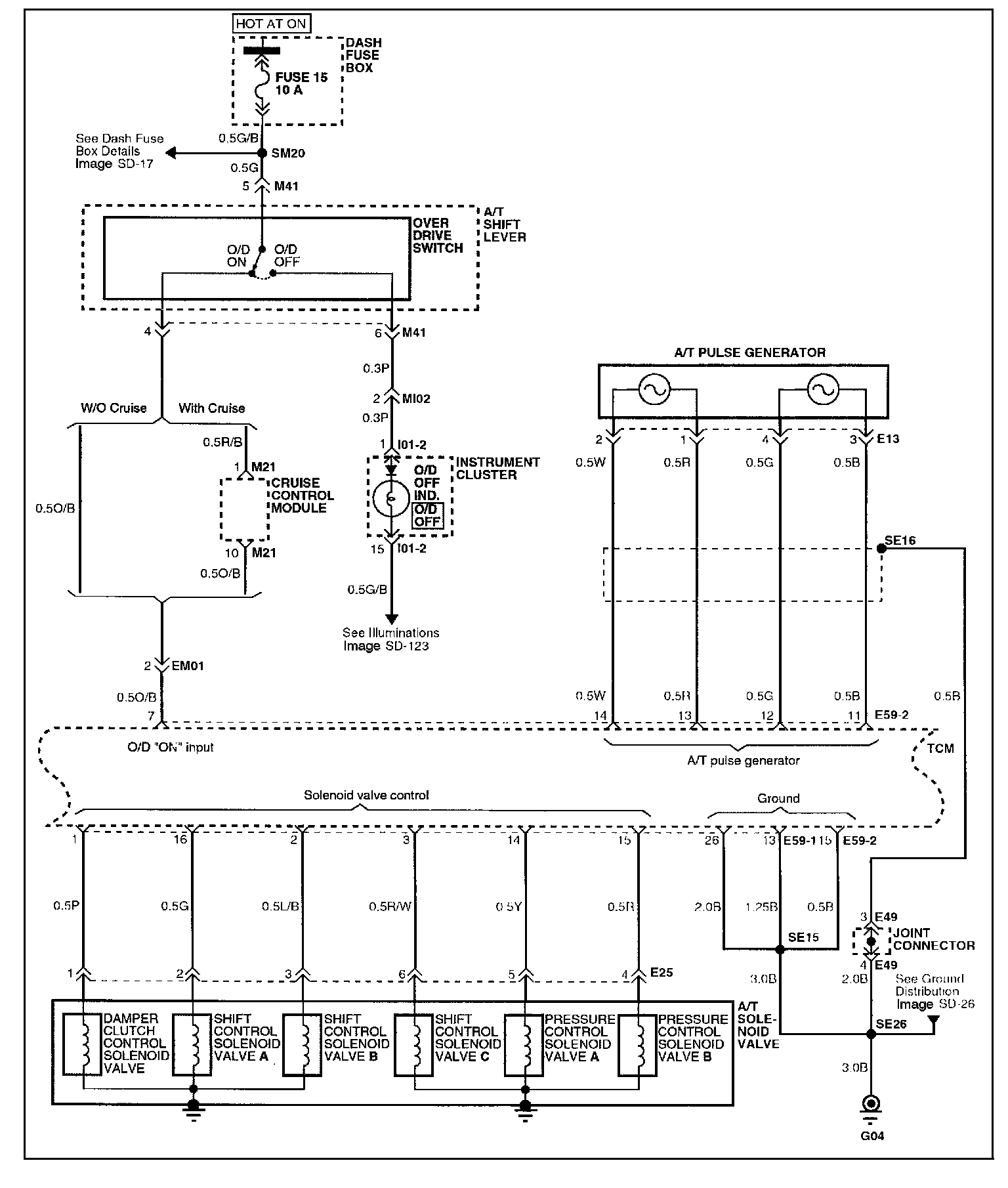

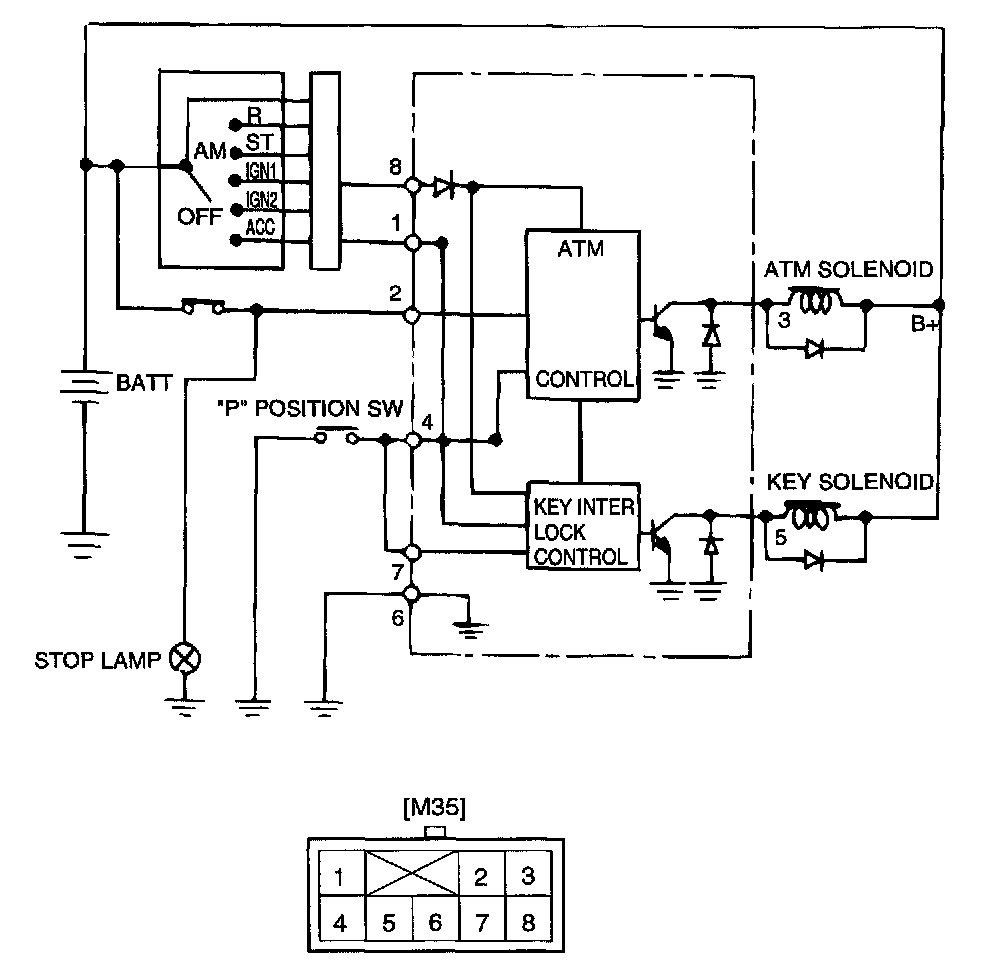

Image SD-58 -- Automatic Transaxle Control System (1):

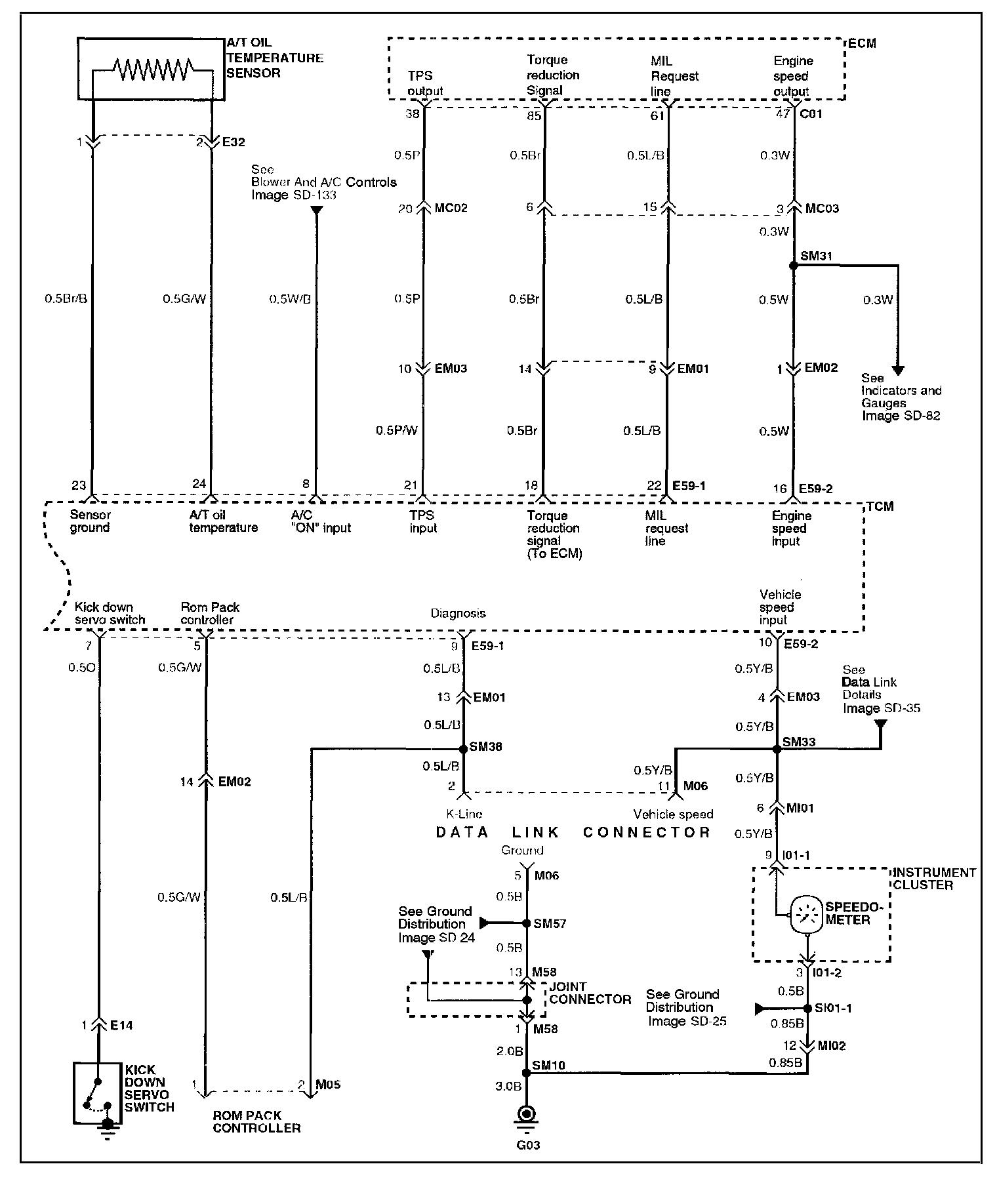

Image SD-59 -- Automatic Transaxle Control System (2):

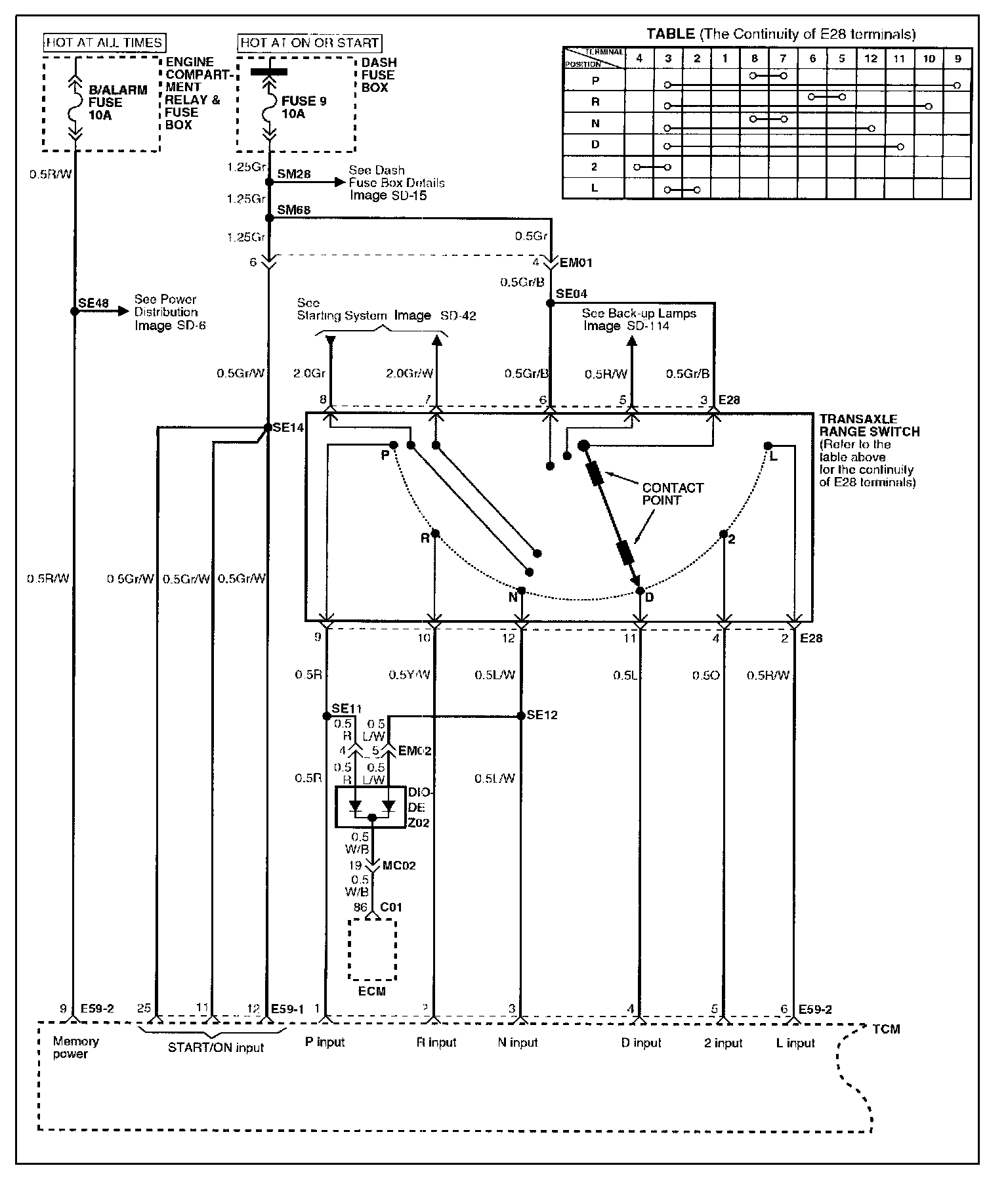

Image SD-60 -- Automatic Transaxle Control System (3):

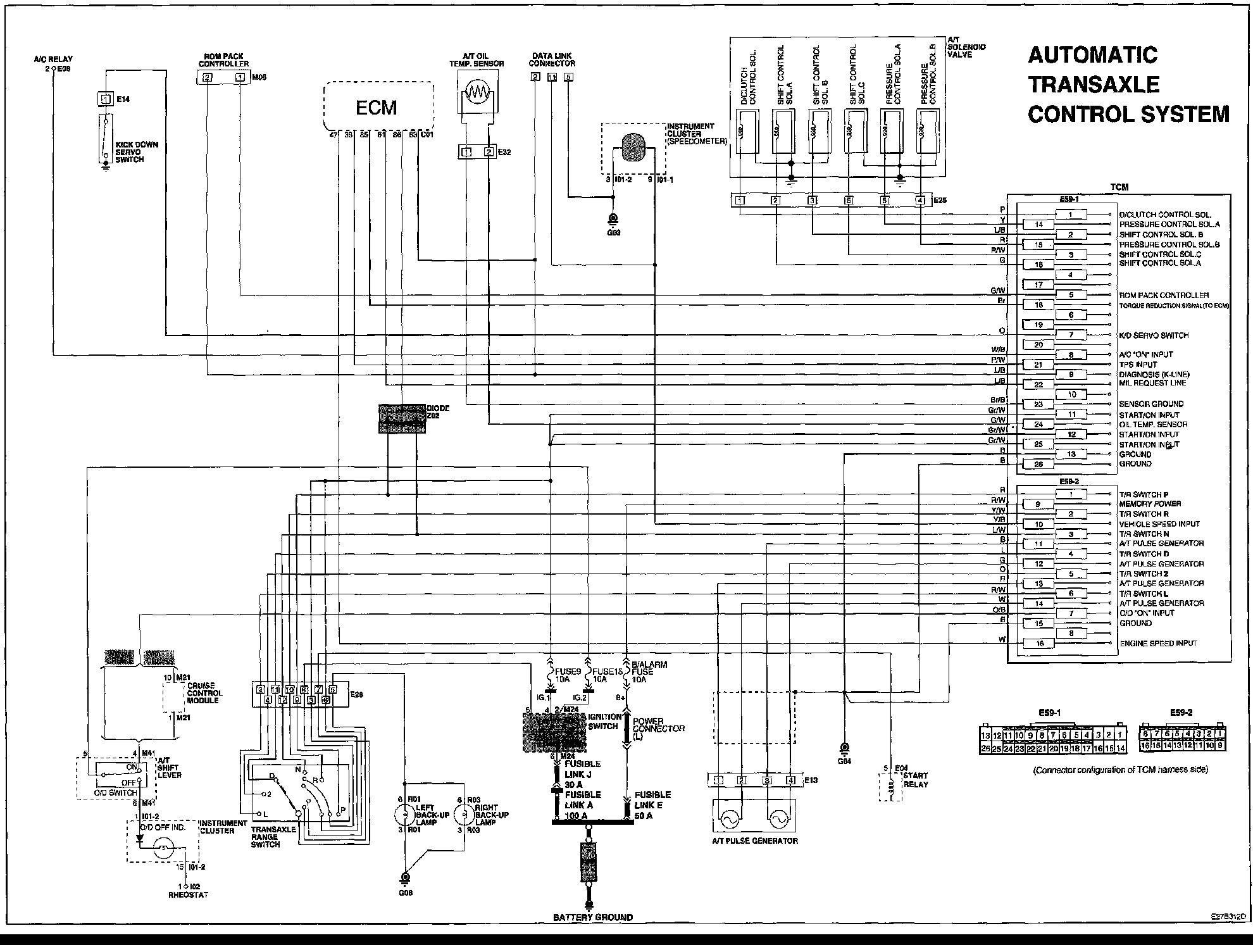

Image SD-60-1 -- Automatic Transaxle Control System Overall Diagram:
