E Connectors (Engine Harness)

E01 Head Lamp Relay (HIGH), E02 DRL Relay, E04 Start Relay, E05 Condenser Fan Relay, E06 Head Lamp Relay (LOW), E07 Radiator Fan Relay, E08 A/C Relay, E09 Front Fog Lamp Relay, E10 Tail Lamp Relay, E11 Blower Relay, E12 Horn Relay:

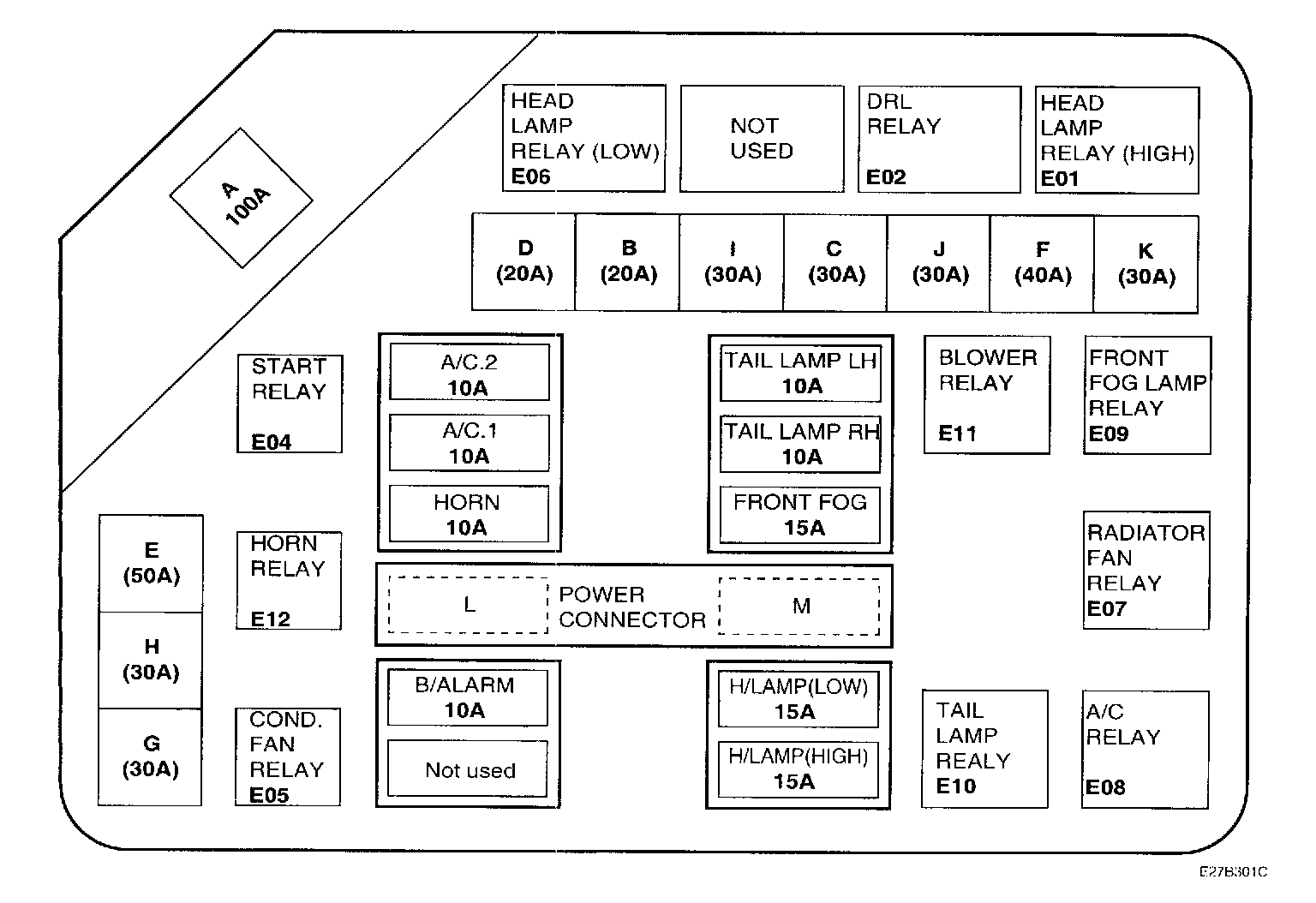

Engine Compartment Relay And Fuse Box Layout:
