M Connectors (Main Harness)

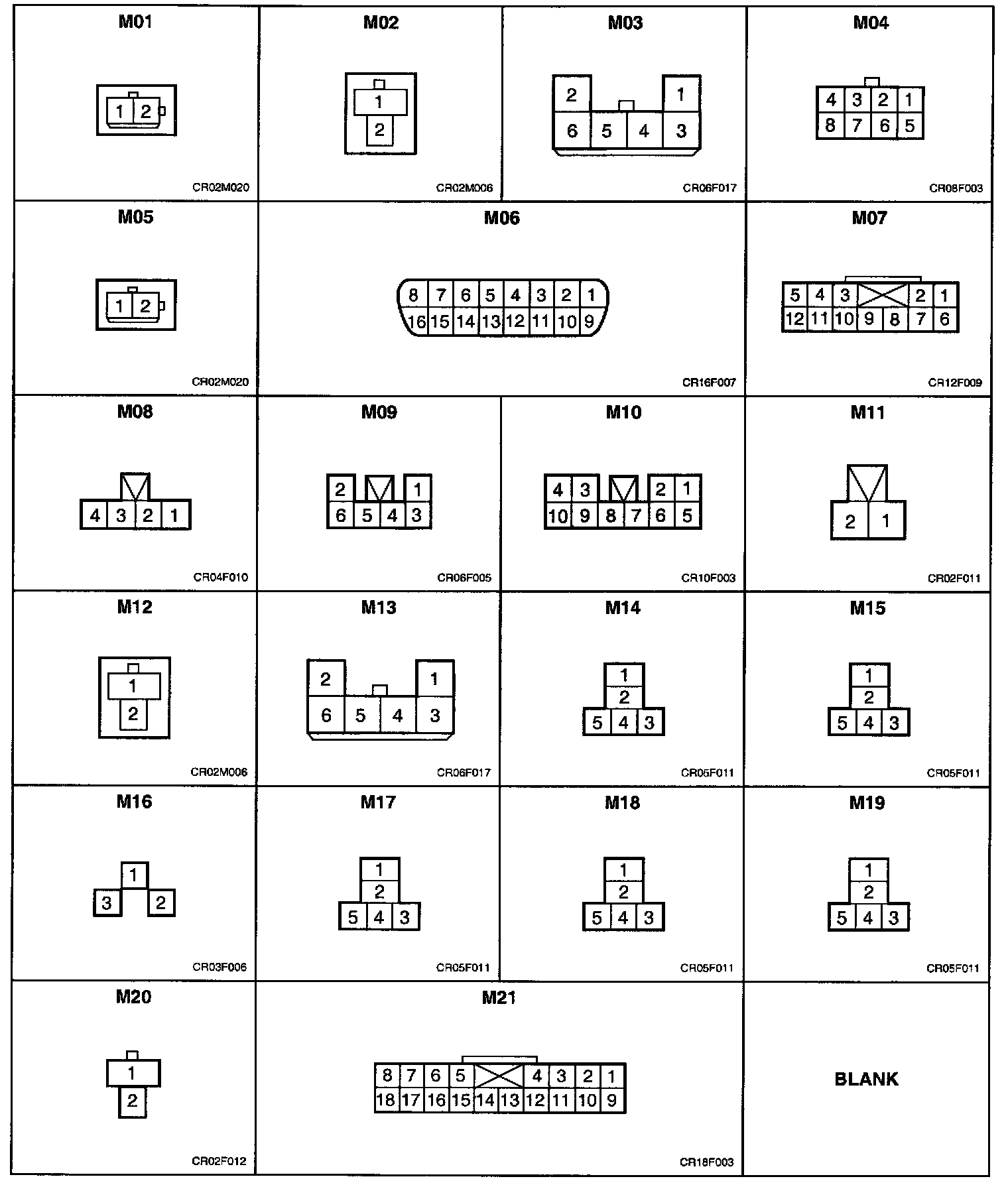

M01 - M21:

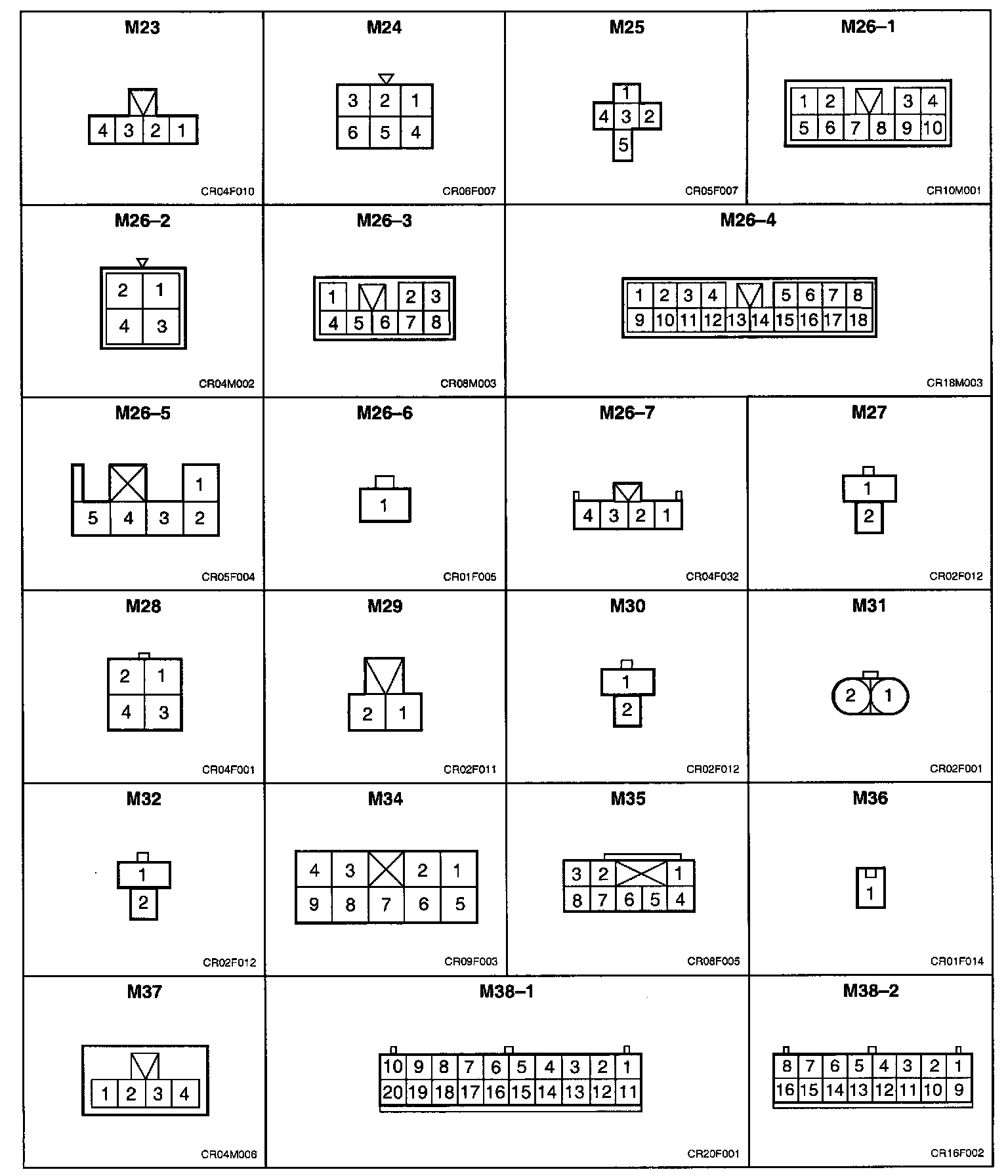

M23 - M38-2:

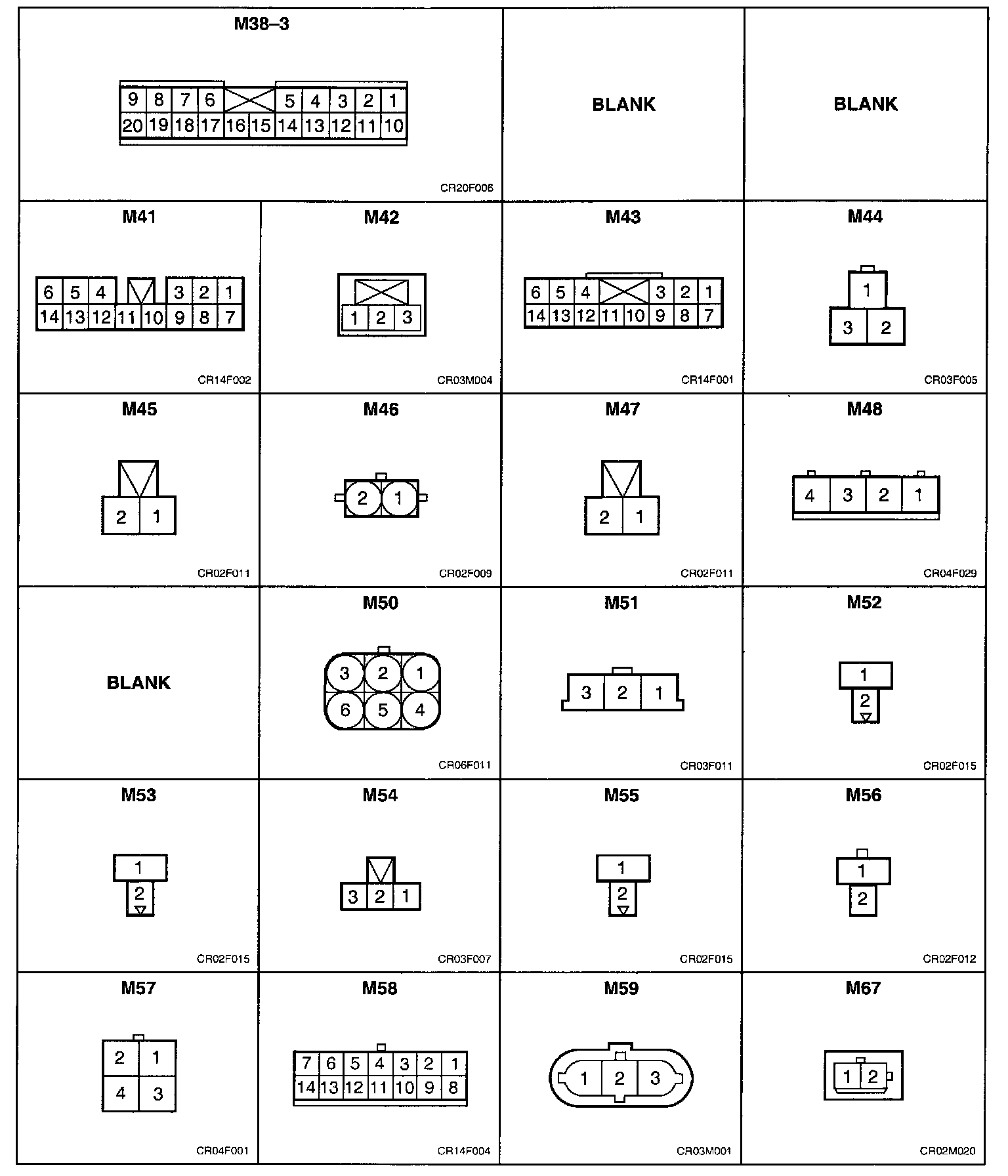

M38-3 - M67:

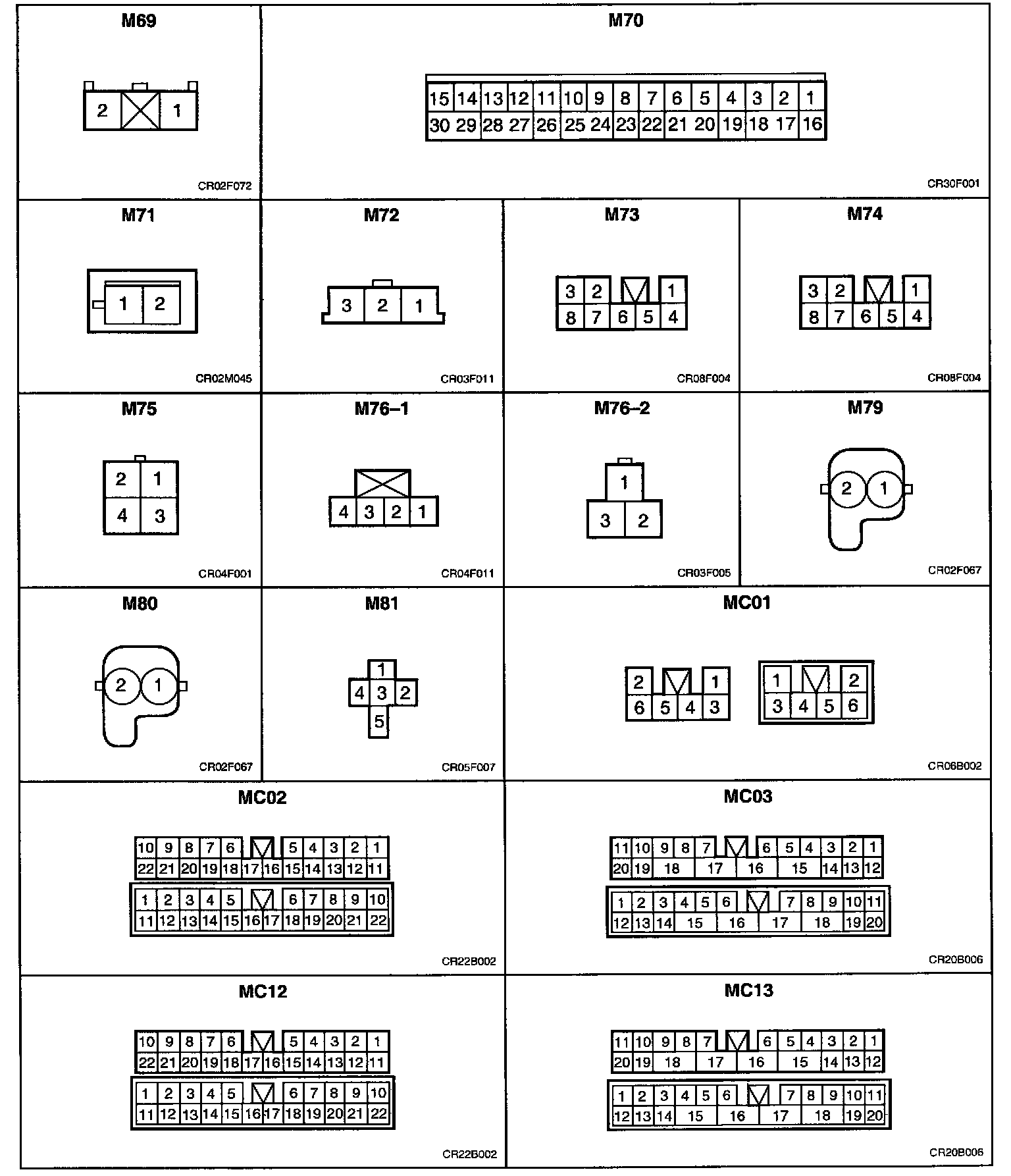

M69 - M81, MC01 - MC13:



MD01 - MR03:
