C Connectors (Control Harness)

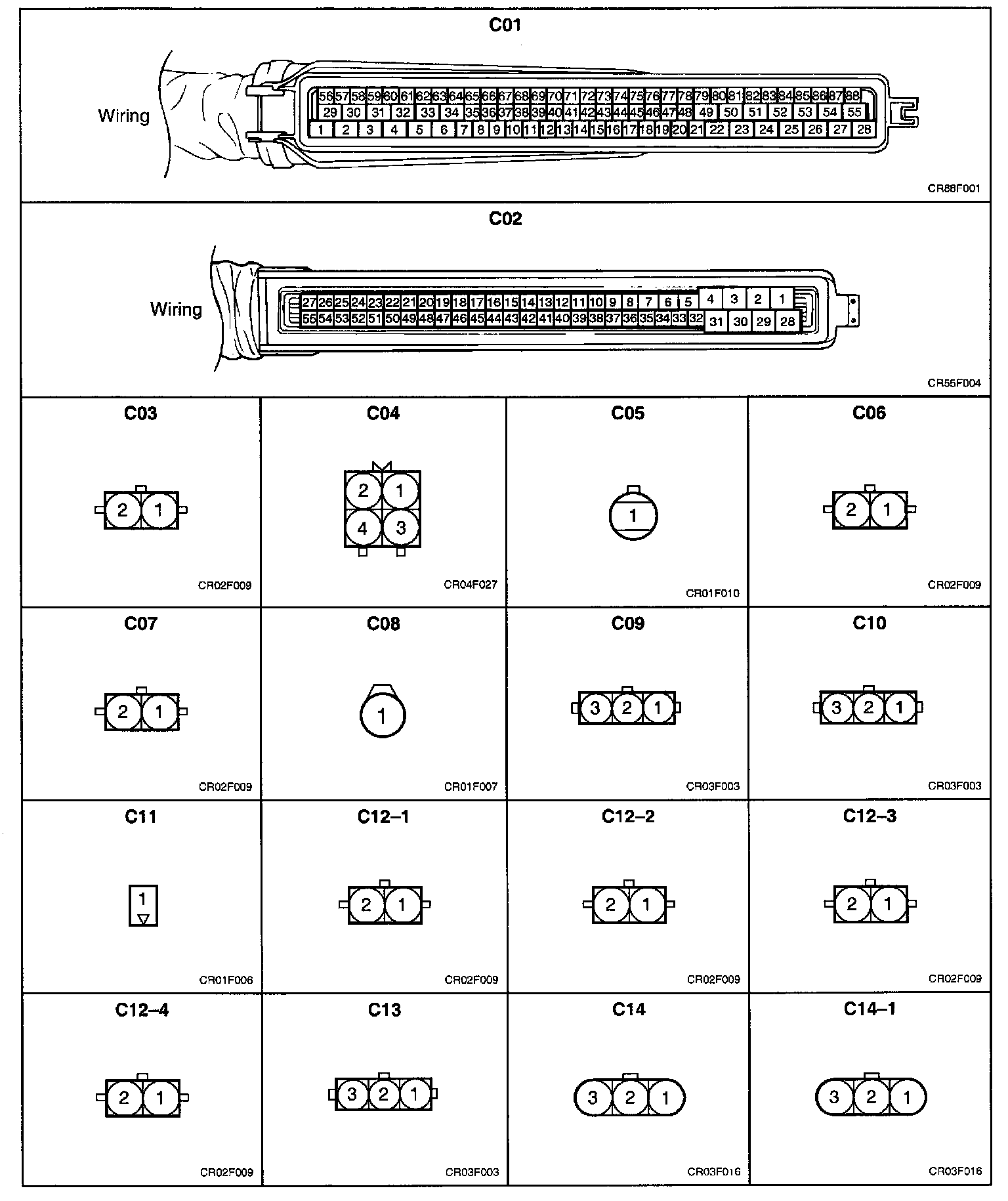

C01 - C14-1:

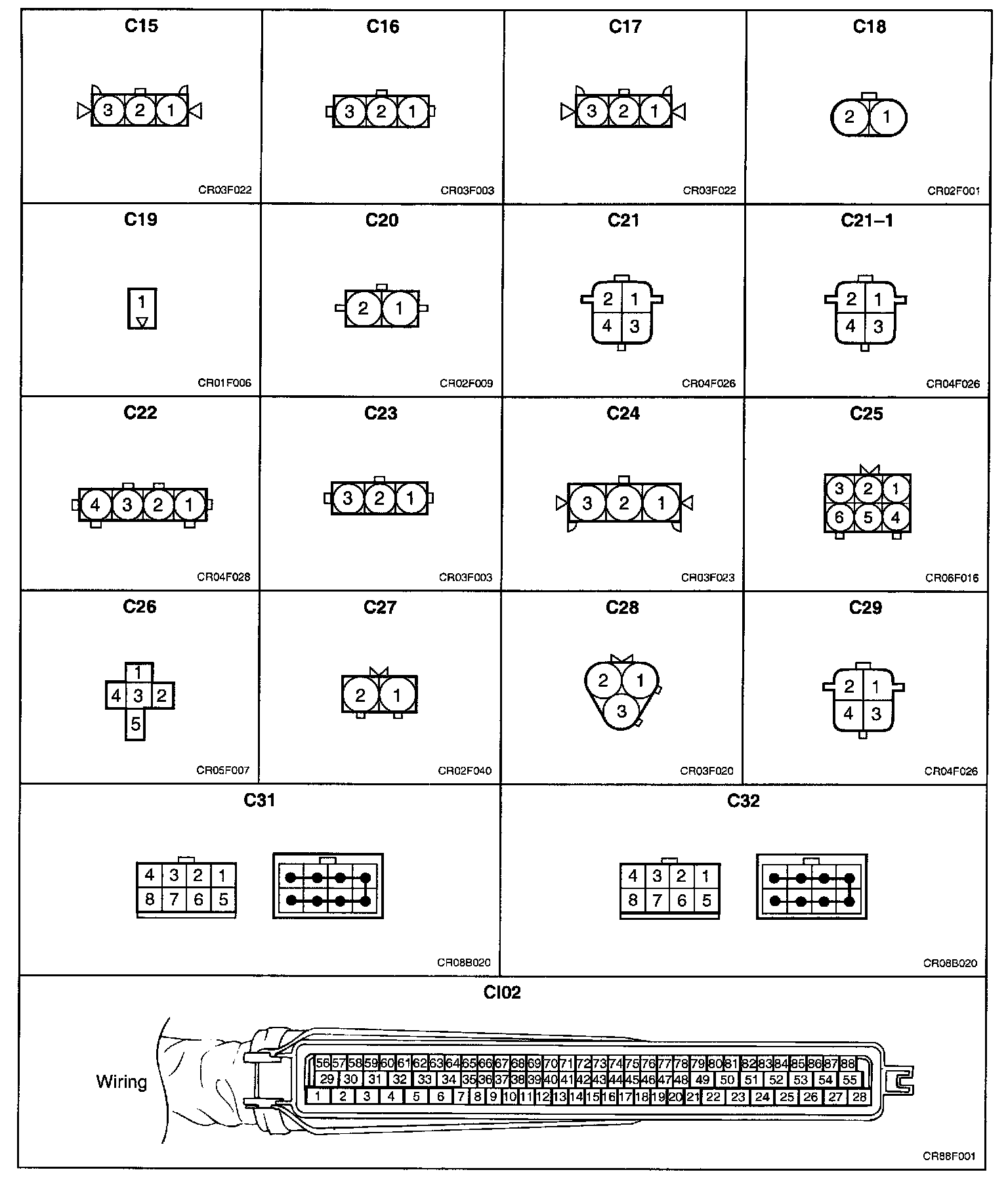

C15 - C32, C102:

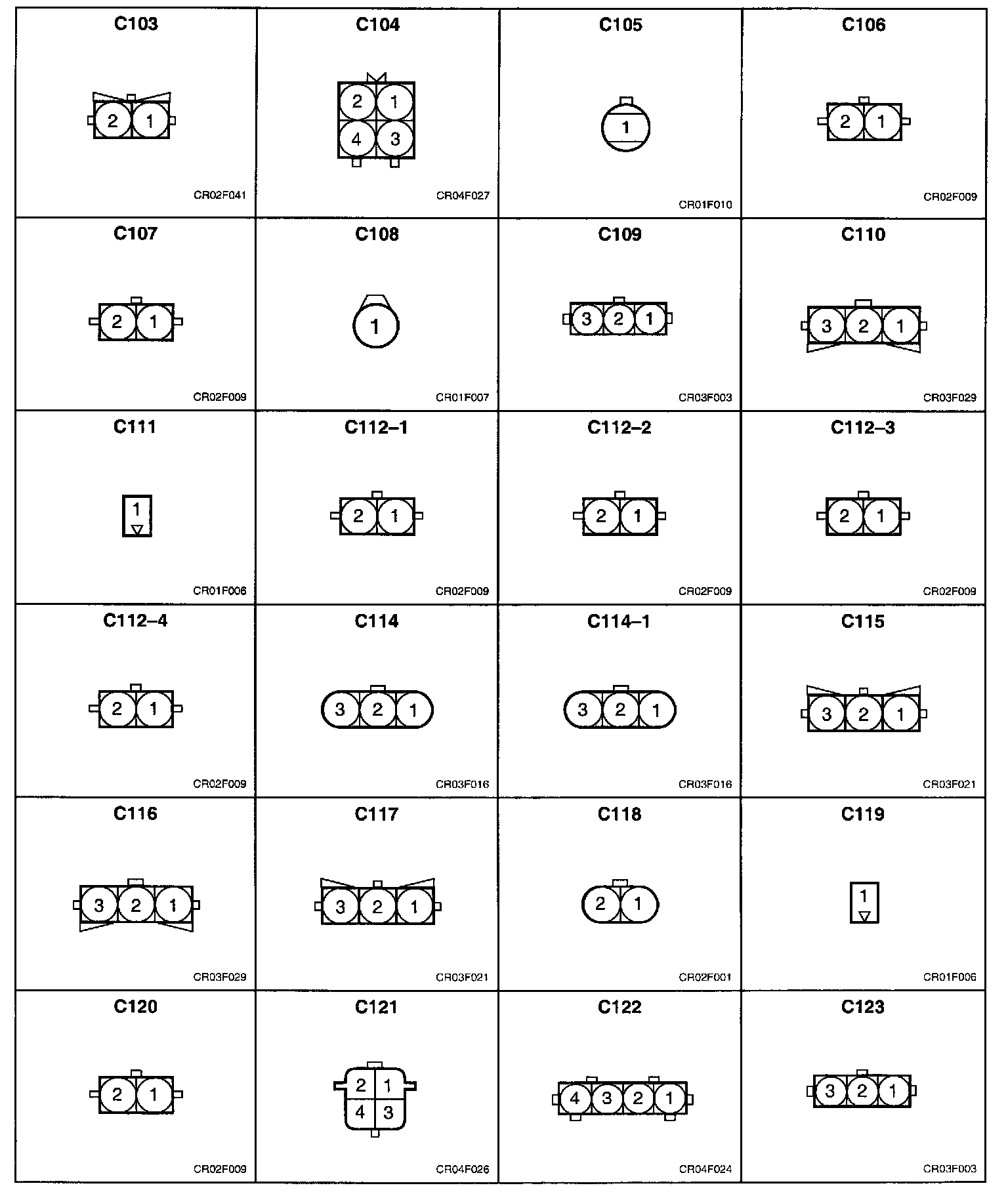

C103 - C123:

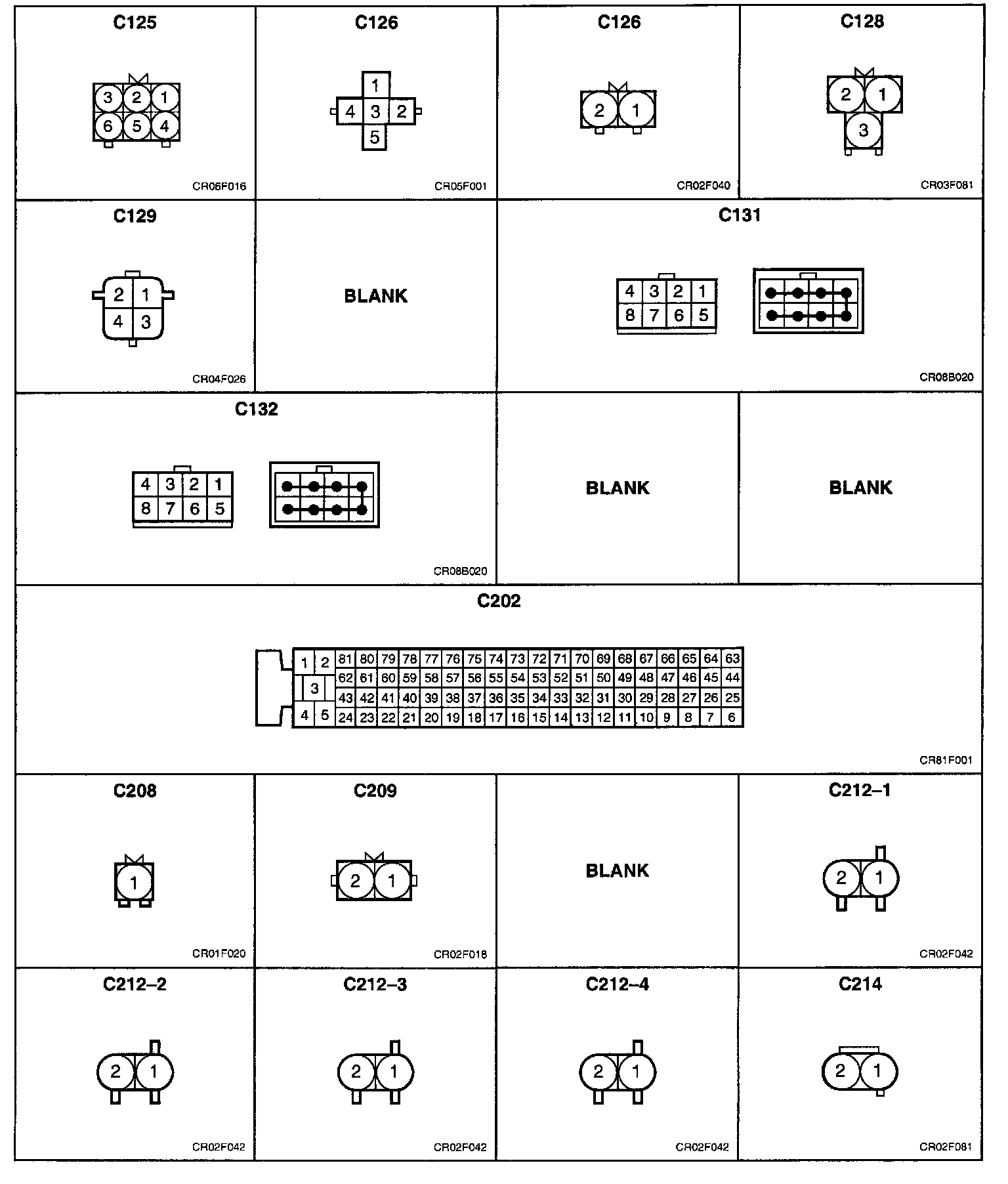

C125 - C132, C202 - C214:

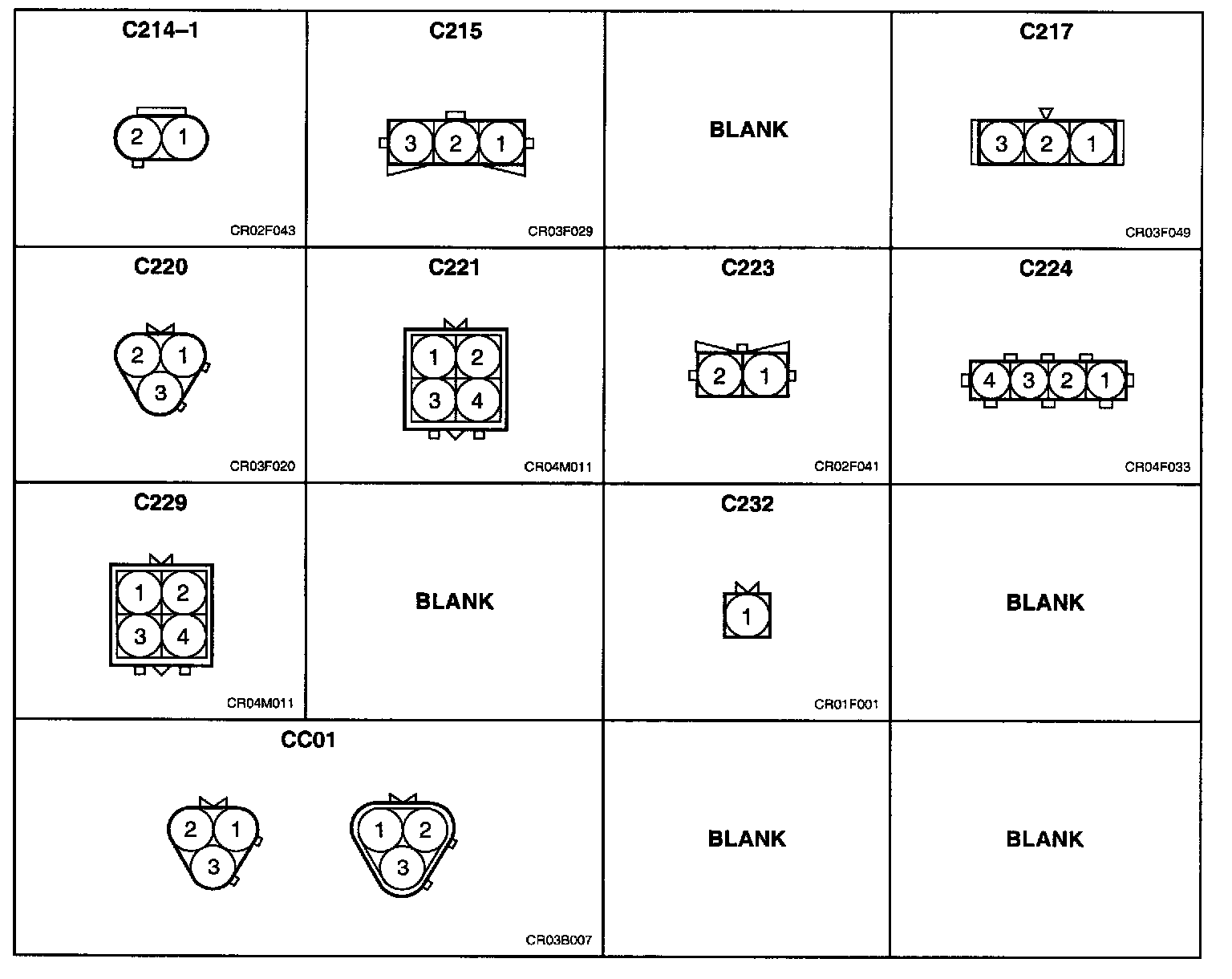

C214-1 - C232, CC01:
