Trim Panel: Service and Repair

Interior Trim:

REMOVAL AND INSTALLATION

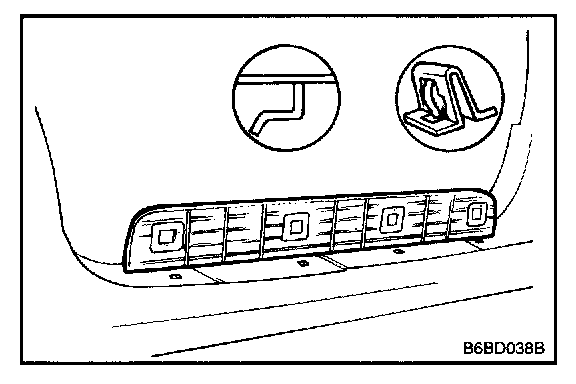

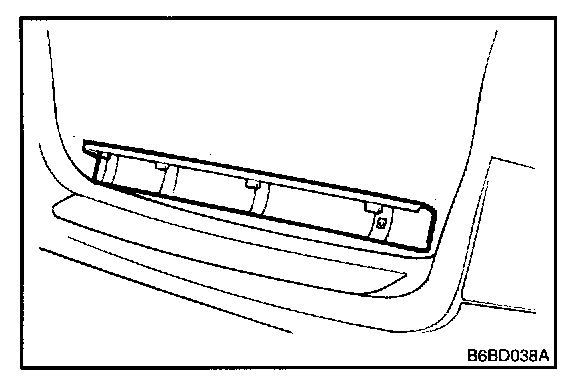

Door Scuff Trim and Step Plate Trim




1. Remove the door scuff trim.




2. Remove the step plate trim.

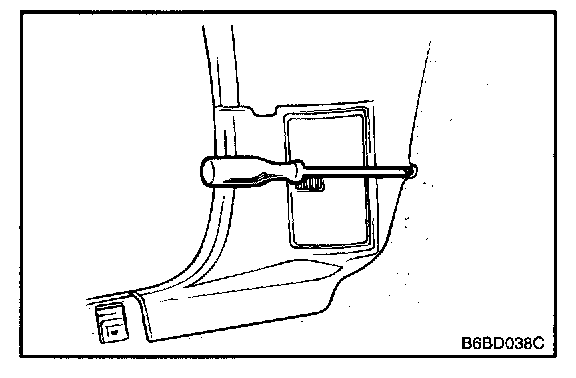

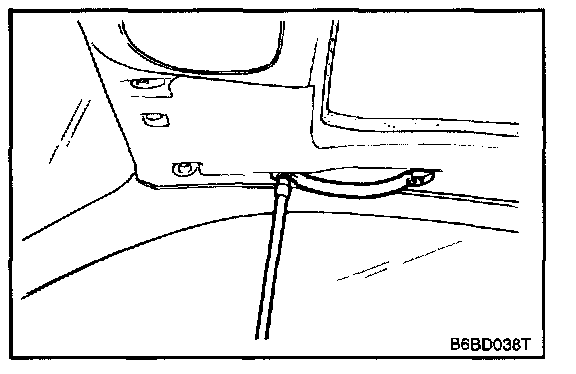

Cowl Side Trim




1. Remove the cowl side trim by loosening mounting screw.

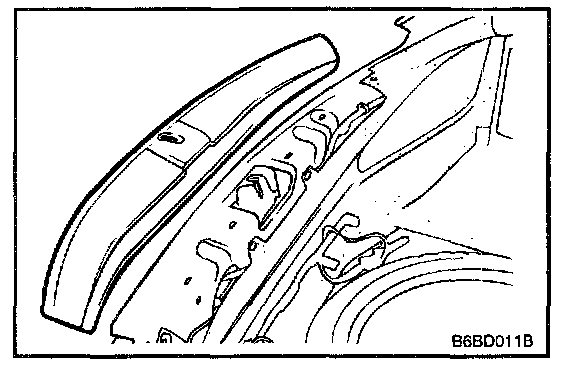

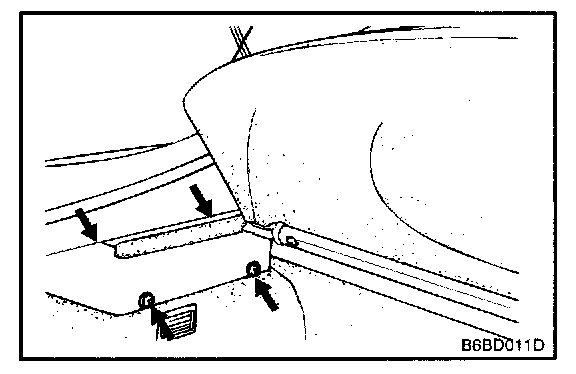

Covering shelf Center Trim and Side Trim




1. Remove the mounting screw (5EA) from the covering shelf side trim.

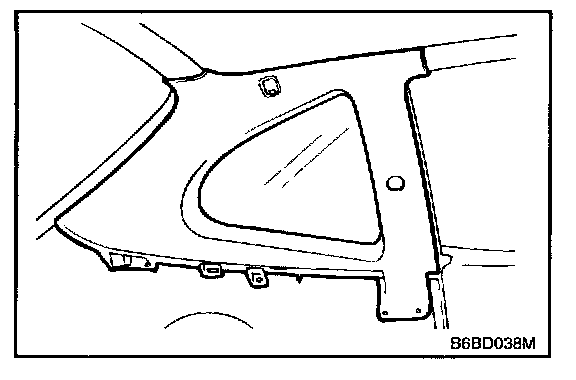

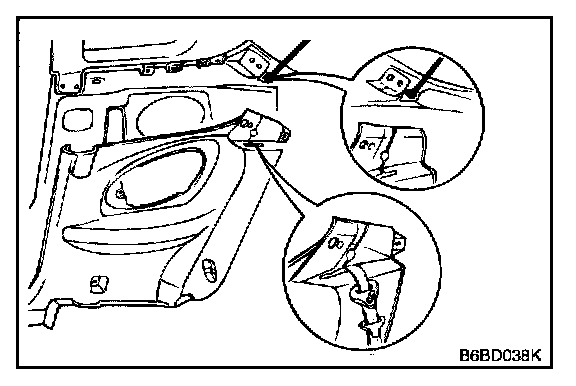

Quarter Inner Trim

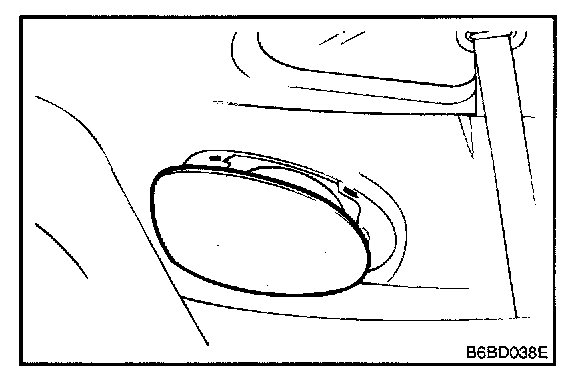

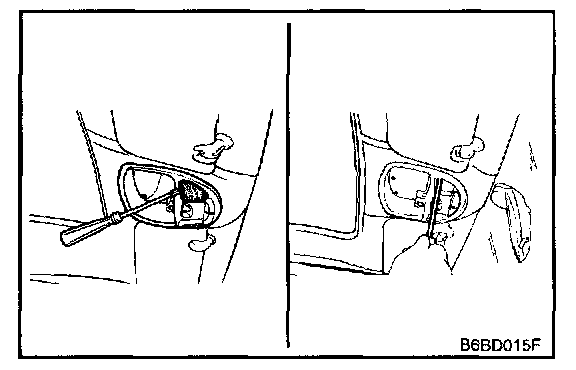

1. Remove the rear speaker grill.

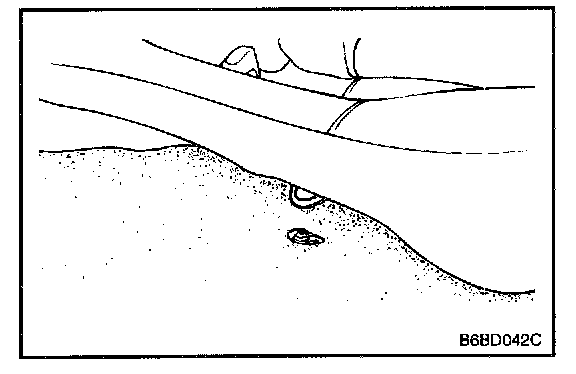

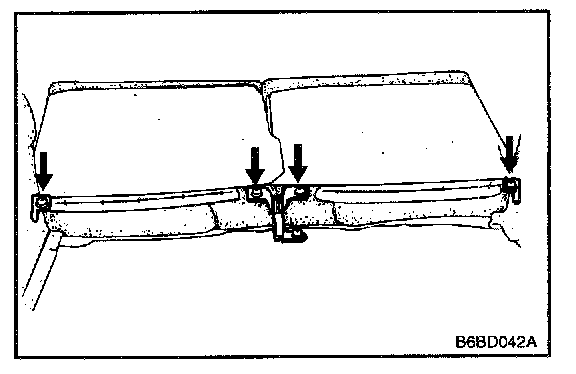

2. Remove the rear seat cushion mounting bolts (2EA) from the rear seat cushion.




3. Remove the rear seat back mounting bolts from the rear seat back.




4. Remove the rear seat belt upper anchor mounting bolt.

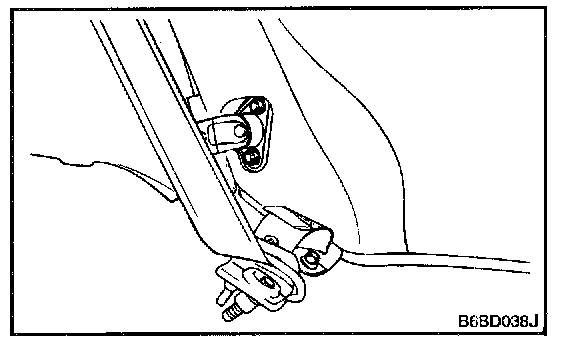

5. Remove the rear sear back lower side bracket.




6. Remove the quarter inner trim mounting screws (4EA) from the quarter inner trim and remove the inner trim assembly.

Center Pillar Trim

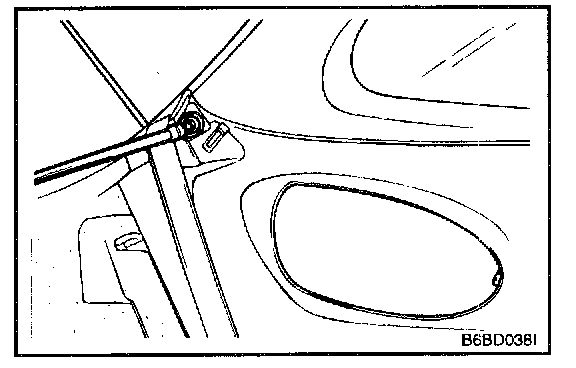

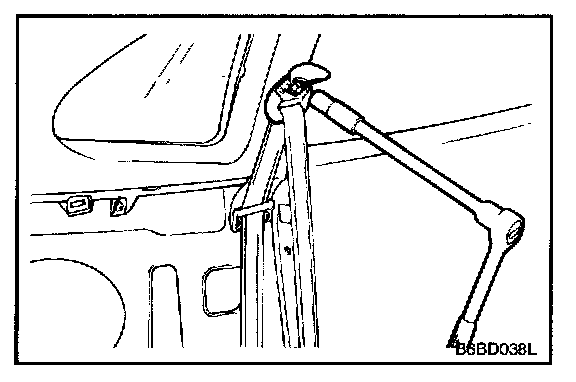

1. Remove the front seat belt upper anchor mounting bolt (14 mm).




2. Remove the center pillar upper trim mounting screws. Remove the seat belt webbing guide mounting screws and coat hook mounting screws from the center pillar upper trim.

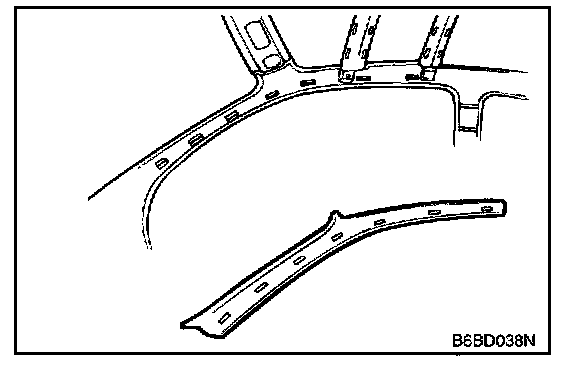

Front Pillar Trim
1. To remove the front pillar trim, first remove the following parts:
1. Covering shelf center trim and side trim.
2. Rear speaker grill and speaker.
3. Rear seat cushion.
4. Rear seat back.
5. Rear seat belt upper anchor mounting bolt.
6. Rear seat back lower side bracket.
7. Quarter inner trim.
8. Front seat belt upper anchor mounting bolt.
9. Center pillar upper trim.

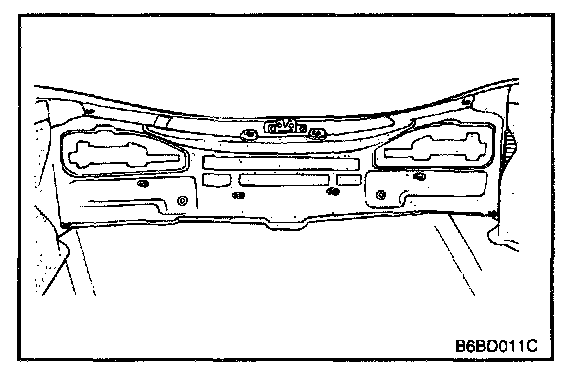

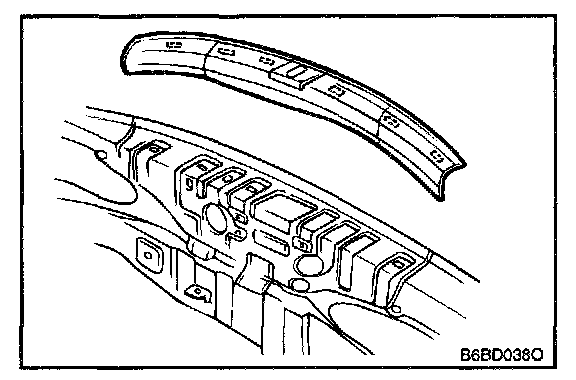

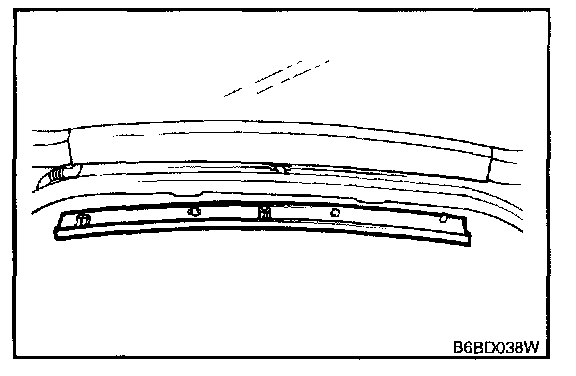

Rear Transverse Trim
1. Remove the mounting clip (6EA) from the rear transverse trim.

Luggage Rear Trim




1. Remove the mounting clip (6EA) from the rear transverse trim.




2. Remove the mounting plug (6EA) and screws (4EA) from the luggage rear trim

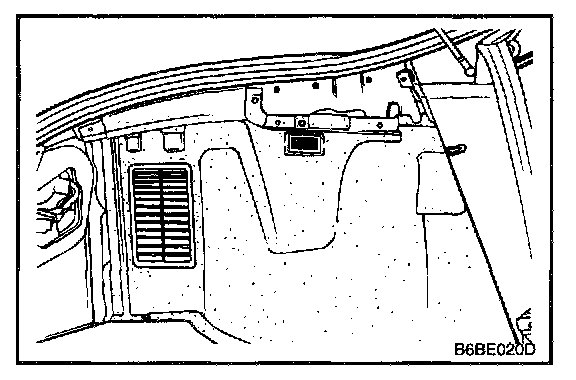

Luggage Side Trim
1. Remove the mounting screws (5EA) from the luggage side trim. Disconnect the trunk room lamp connector.

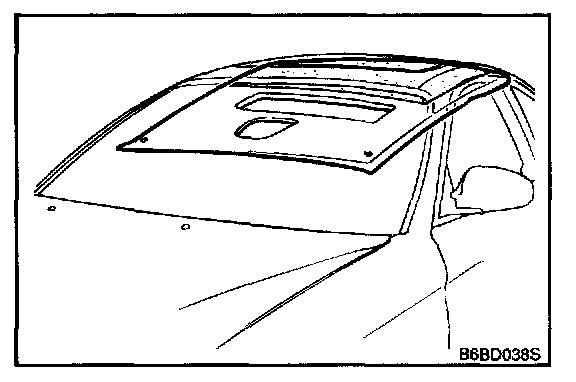

Head Lining
1. To remove the headlining, first remove the following parts:
1. Covering shelf center trim and side trim.
2. Rear speaker grill and speaker.
3. Rear seat cushion.
4. Rear seat back.
5. Rear seat belt upper anchor mounting bolt.
6. Rear seat back lower side bracket.
7. Quarter inner trim.
8. Front seat belt upper anchor mounting bolt.
9. Center pillar upper trim.
10. Front pillar trim.




2. Remove the roof assist handle.

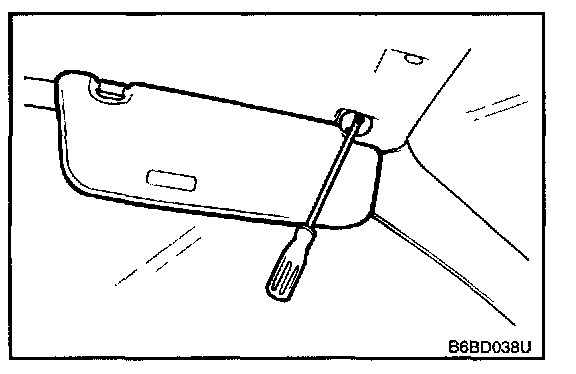

3. Remove the mounting screws from the sunvisor.




4. Remove the mounting screw (4EA) from the over head console lamp.
Disconnect the over head console lamp.




5. Remove the mounting clip (SEA) from the roof rear cover trim.




6. Remove the headlining.
7. Installation is the reverse of removal
