Console: Service and Repair

Console And Interior Trim:

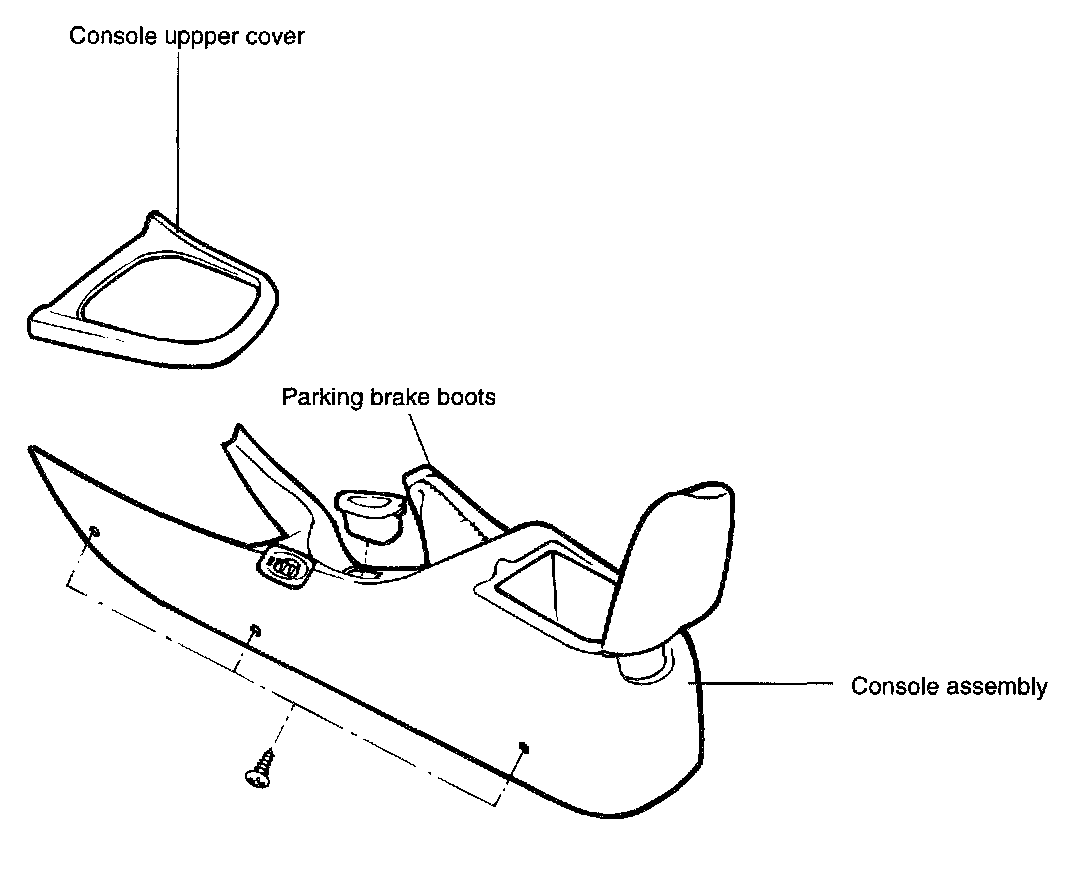

REMOVAL AND INSTALLATION

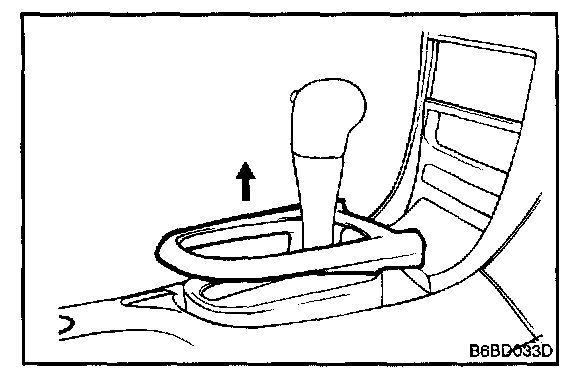

1. Remove the console upper cover.

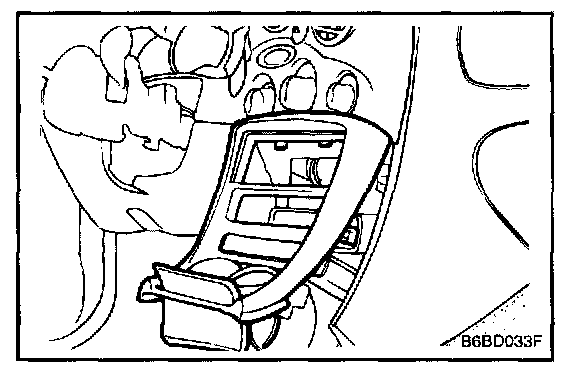

2. Remove the crash pad center facia panel and disconnect the cigar lighter connector.

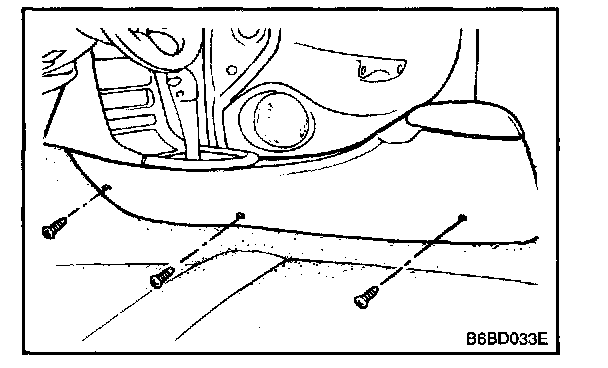

3. Remove the console assembly.
Disconnect the head lamp leveling device switch connector.
4. Installation is the reverse of removal.
