Console Lamp: Service and Repair

OVERHEAD CONSOLE LAMP




1. Disconnect the negative battery terminal.

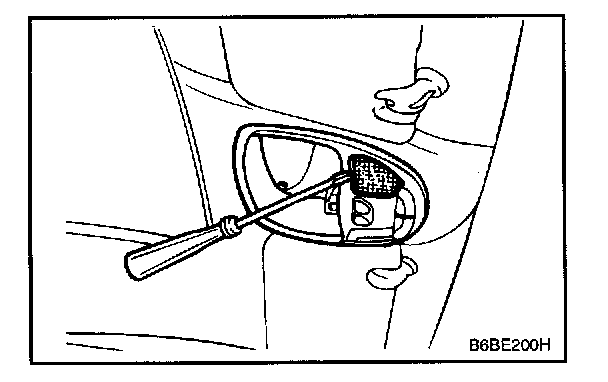

2. Using a (-) driver, detach the map lamp lens.

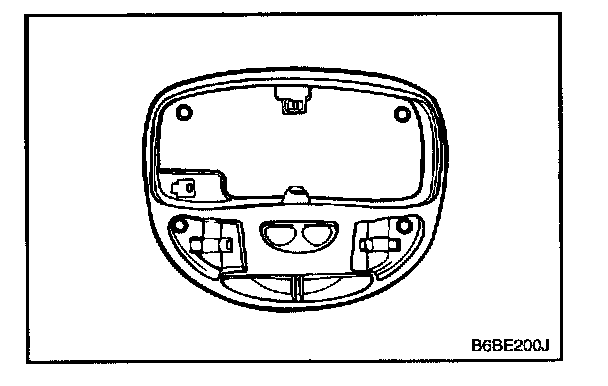

3. Detach the lamp assembly from the headliner after removal of the screws (2EA).
4. Disconnect the connector from the roof harness.
5. Installation is the reverse of removal.
