Home >> Hyundai >> 2001 >> Tiburon L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0722

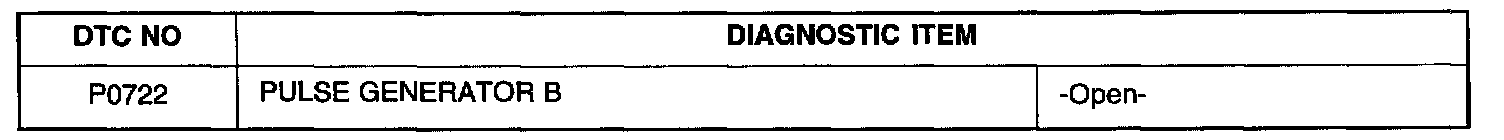

P0722






DESCRIPTION
^ Detect number of revolutions transfer driven gar to monitor vehicle speed.

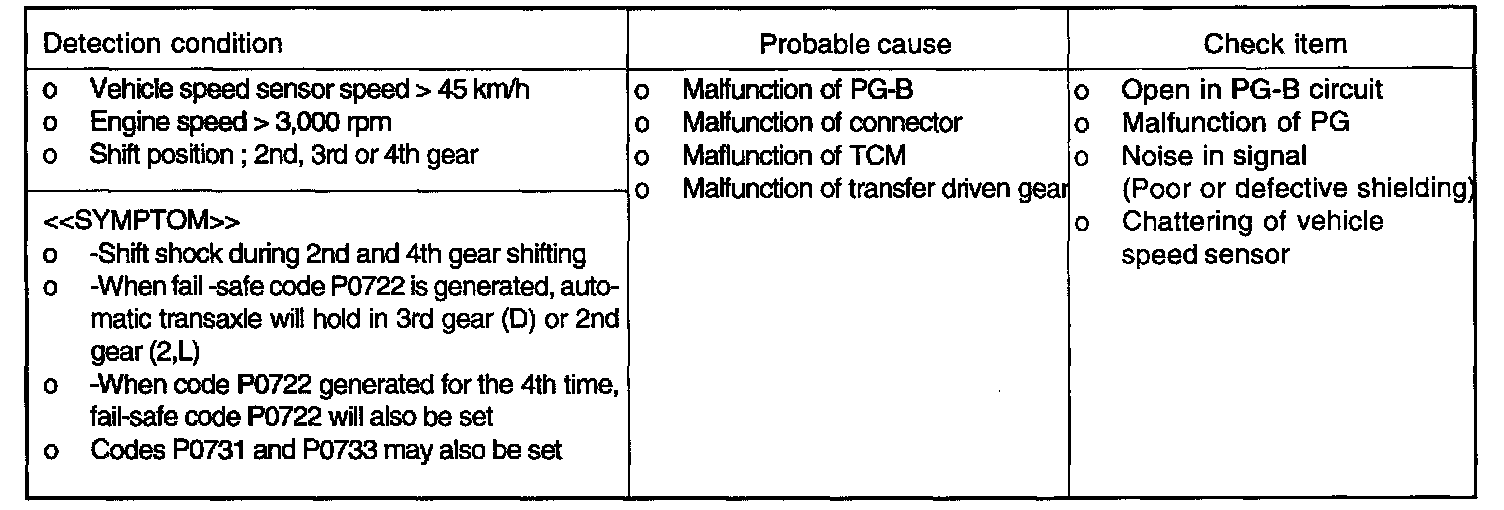

TROUBLESHOOTING GUIDE

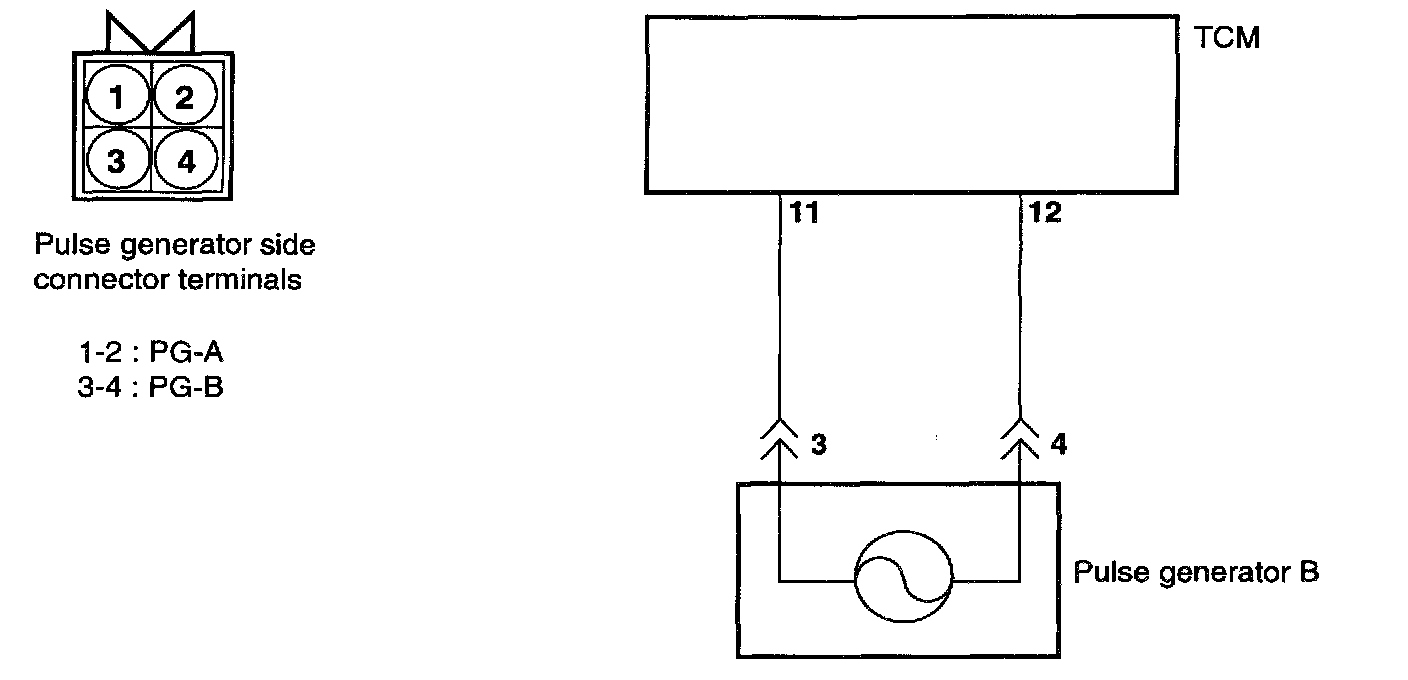

CIRCUIT DIAGRAM

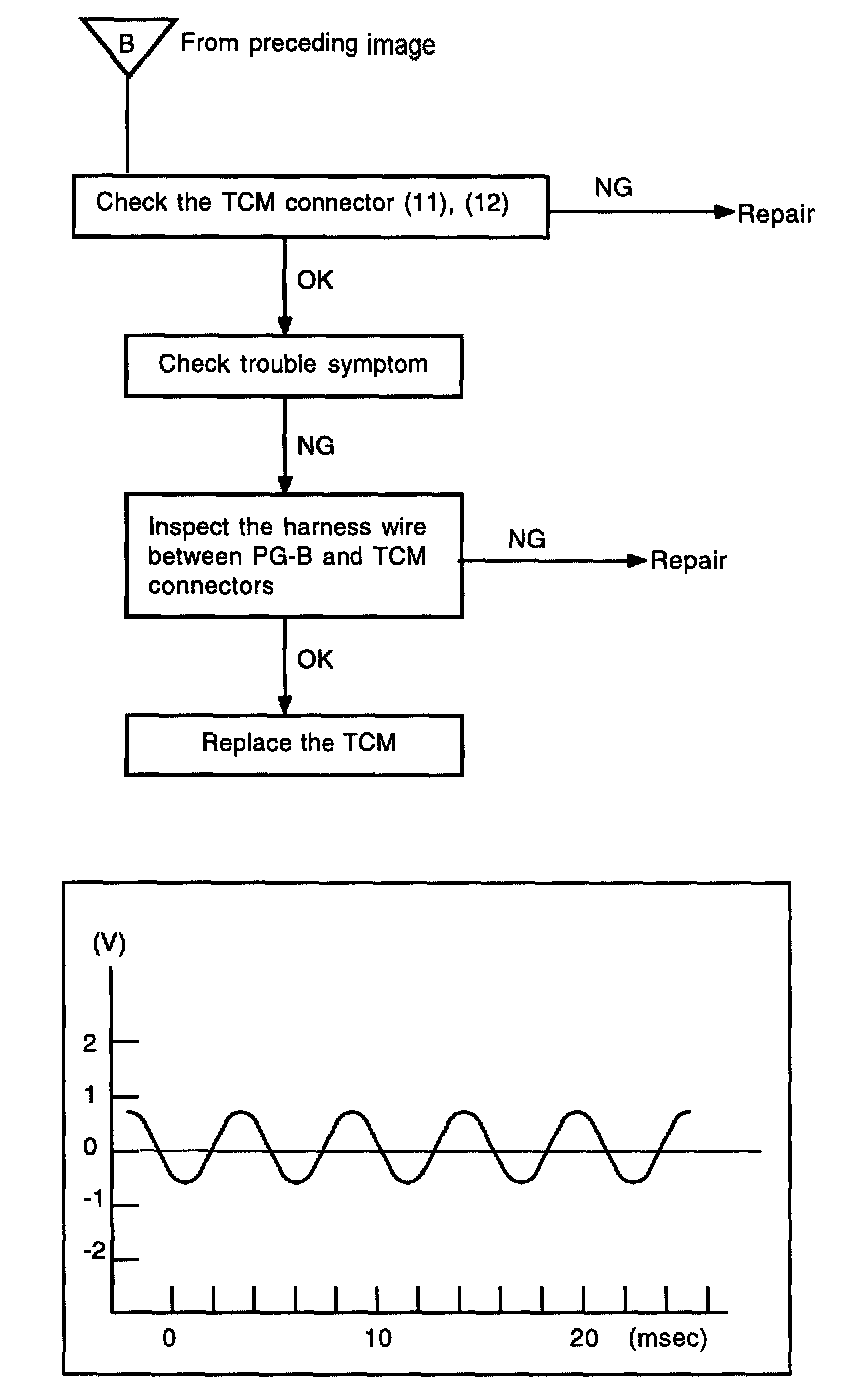

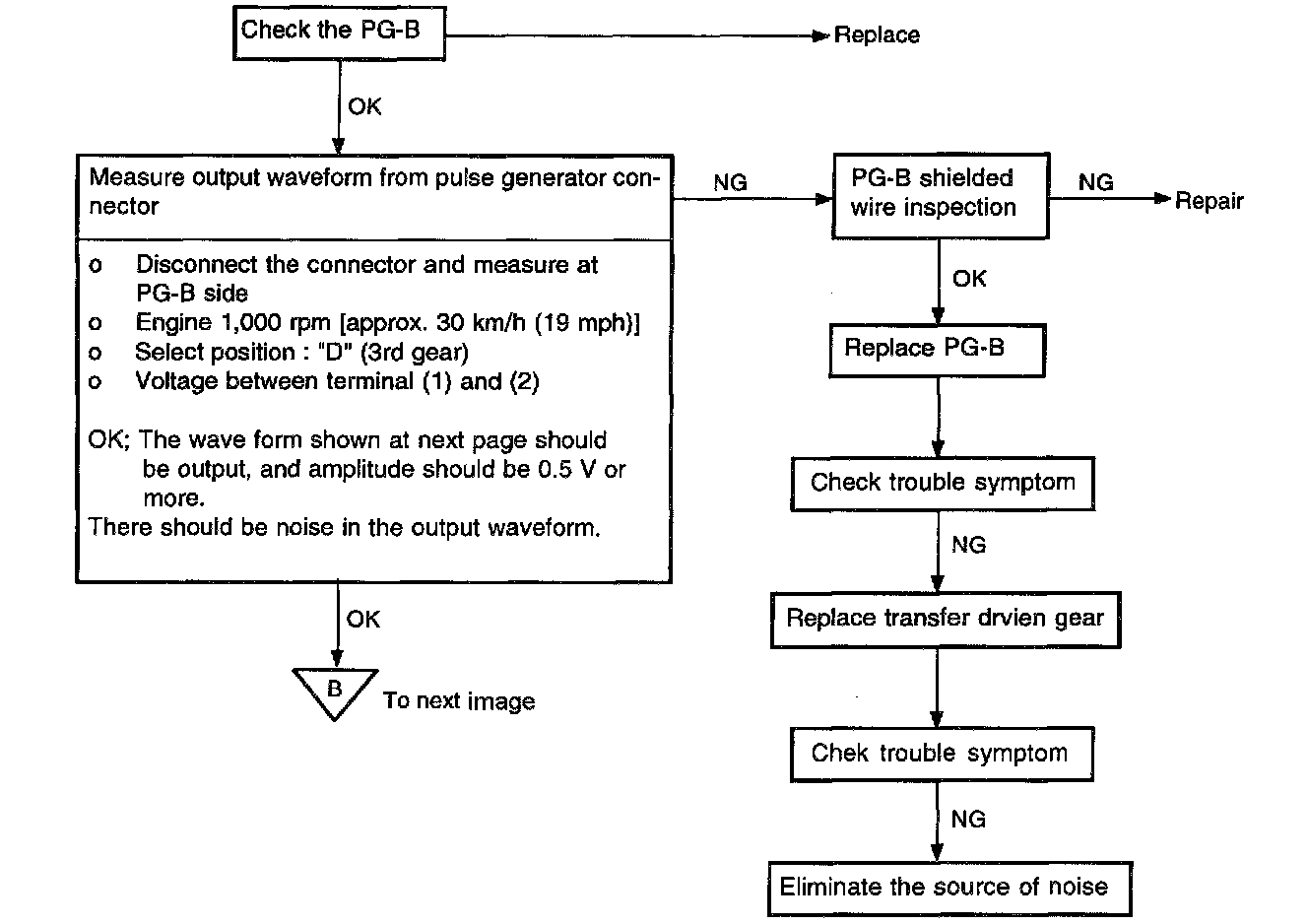

TROUBLESHOOTING FLOW





1 of 2





2 of 2
