A/T - Reman, Filler Tube/Dipstick Installation
Number: 00-40-001Group: AUTOMATIC TRANSAXLE
Date: JANUARY, 2000
Subject: AUTOMATIC TRANSAXLE OIL FILLER TUBE AND OIL LEVEL GAUGE
Model: ALL
DESCRIPTION:
In early 2OOO, Hyundai's automatic transaxle remanufacturer will no longer install an oil filler tube and oil level gauge (dipstick) on remanufactured automatic transaxles, and will install a plug in place of the oil filler tube. The remanufacturer will place an O-ring for the oil filler tube inside an envelope and attach the envelope to the manual control lever.
SERVICE PROCEDURE:

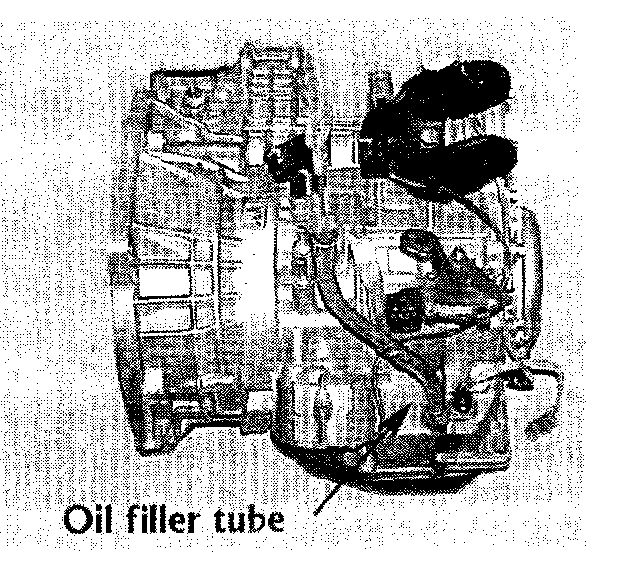

1. Remove the dipstick and oil filler tube from the removed transaxle.

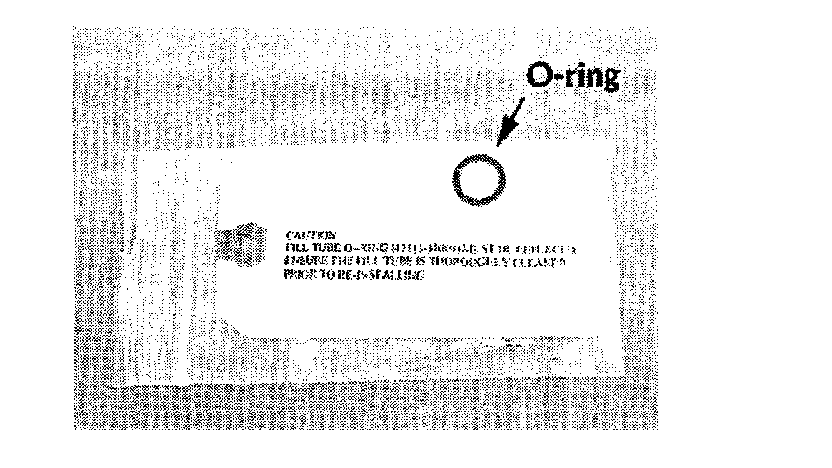

2. Open the large plastic envelope and remove the O-ring from the package.

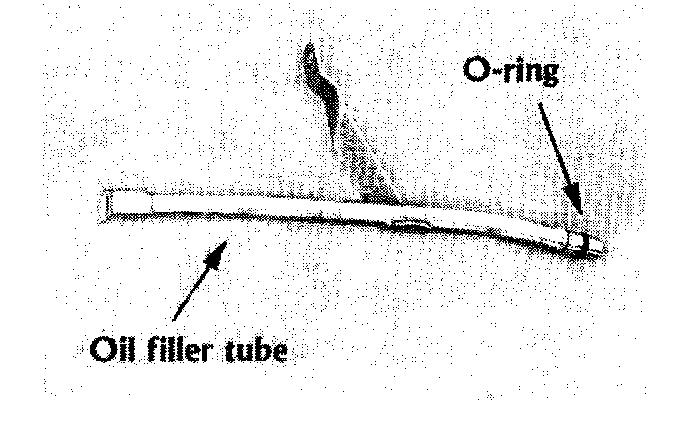

3. Clean the oil filler tube and install the O-ring on the oil filler tube.
4. Reinstall the oil filler tube and dipstick on the new transaxle.
PARTS INFORMATION:
Model Part Part Number
All O-Ring 42115-37000
