A/T - Pan Gasket Fluid Leaks: Overview

Group: TRANSAXLE

Number: 02-40-016

Date: JUNE, 2002

Model: 1996-2000 ELANTRA, 1997-2001 TIBURON

Subject
AUTOMATIC TRANSAXLE OIL LEAK FROM
OIL PAN GASKET

DESCRIPTION:

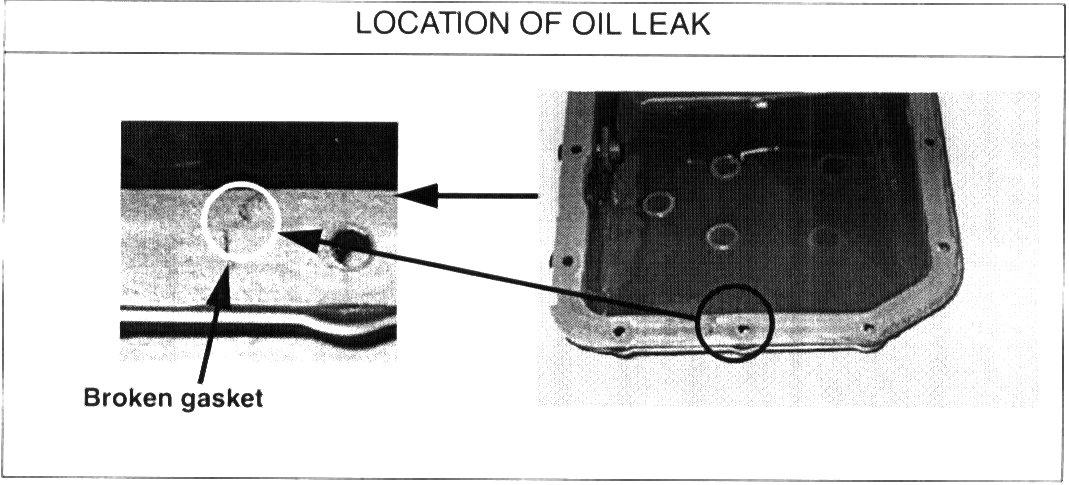

Some 1996-2000 MY Elantra and 1997-2001 MY Tiburon vehicles with automatic transaxles may experience an oil leak at the oil pan due to a broken gasket.





If a vehicle is being serviced for an oil leak at the oil pan gasket, follow the repair procedure shown.

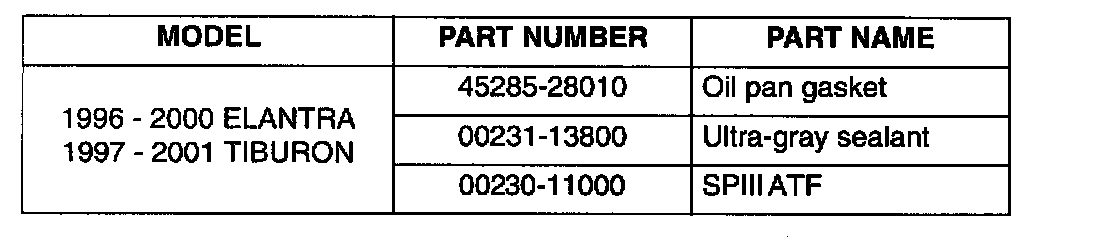

PARTS INFORMATION:

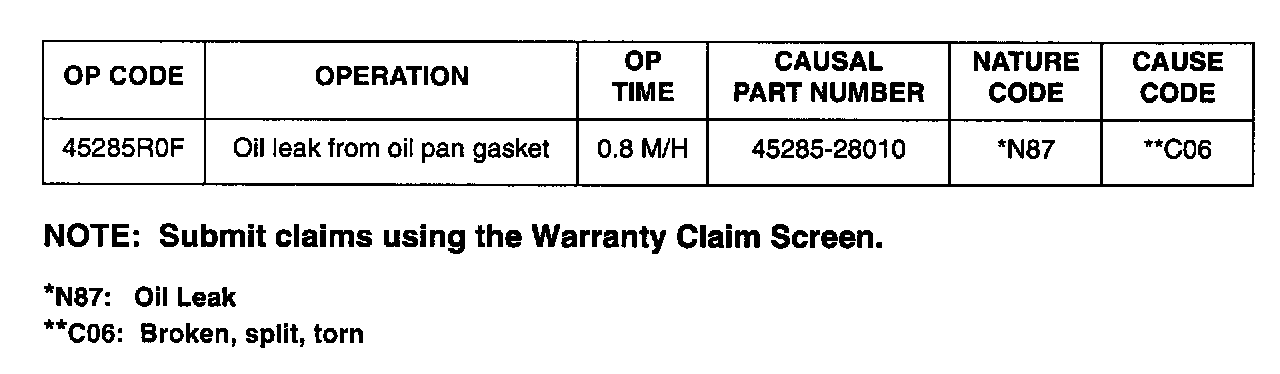

WARRANTY INFORMATION:
