Control Arm Bushing: Service and Repair

REAR SUSPENSION ARM BUSH REPLACEMENT

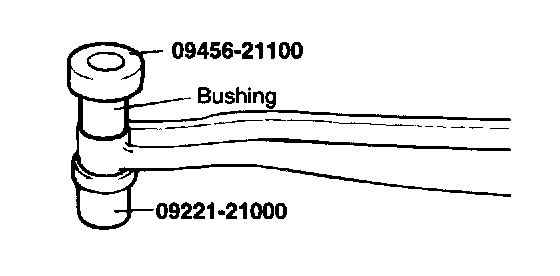

1. Install special tools (09221-21000, 09545-28100) on the rear suspension arm.
2. Press out the bushing.
3. Apply soap solution to the new bushing and rear suspension arm bushing mount.





4. Install special tools and new bushing onto the rear suspension arm.

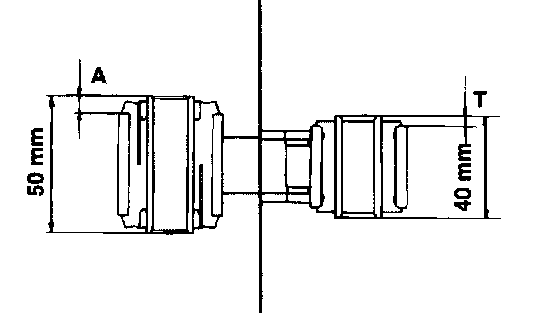

5. Press until the inner pipe projection is at the standard value.
Standard Value (A): 5.3 - 4.7 mm (T): 5.3 - 4.7 mm
