Radiator: Service and Repair

DISASSEMBLY
1. Disconnect the radiator fan motor connector.

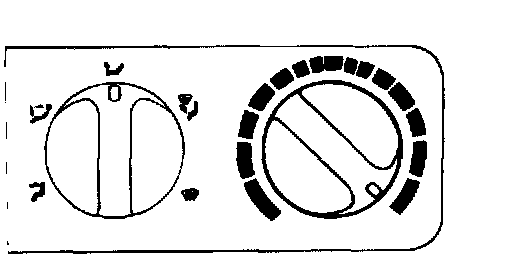

2. Set the temperature control switch to the hot position.
3. Loosen the radiator drain plug to drain coolant.
4. Disconnect the upper and lower hose and overflow tube.
5. For vehicles with automatic transaxles, disconnect the oil cooler hoses from the automatic transaxle.

CAUTION: Plug the ends of the oil cooler hoses and the automatic transaxle fittings to prevent transaxle fluid from spilling out and foreign material from entering.

6. Remove the radiator mounting bolts.
7. Remove the radiator together with the fan motor.
8. Remove the fan motor from the radiator.

INSPECTION
1. Check the radiator for bent, broken or plugged fins.
2. Check the radiator for corrosion, damage, rust or scale.
3. Check the radiator hoses for crack, damage or deterioration.
4. Check the reservoir tank for damage.
5. Check the radiator cap spring for damage.
6. Test the pressure of the cap using a machine for checking a cooling system.
7. Check the radiator cap seal for crack or damage.

REASSEMBLY
1. Fill the radiator and reservoir tank with clean coolant mixture.
2. Run the engine until the thermostat opens, and then stop the engine.
3. Remove the radiator cap, and add coolant up to the filler neck of the radiator, and then fill the reservoir tank to the upper level.
4. Check that there is no leakage from the radiator, hoses or connections.
