Radiator Cooling Fan Motor: Testing and Inspection

RADIATOR FAN MOTOR

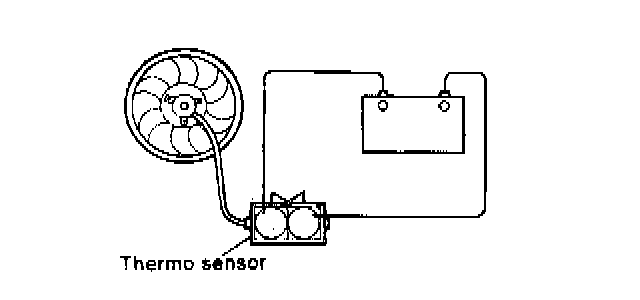

1. Check that the radiator fan rotates when battery voltage is applied to the terminals (as shown in figure).
2. Check that abnormal noises are not produced while the motor is turning.
