Double Offset Joint - Birfield Joint

DRIVE SHAFT (D.O.J - B.J. TYPE) OVERHAUL W/ RELATED COMPONENTS AND KITS

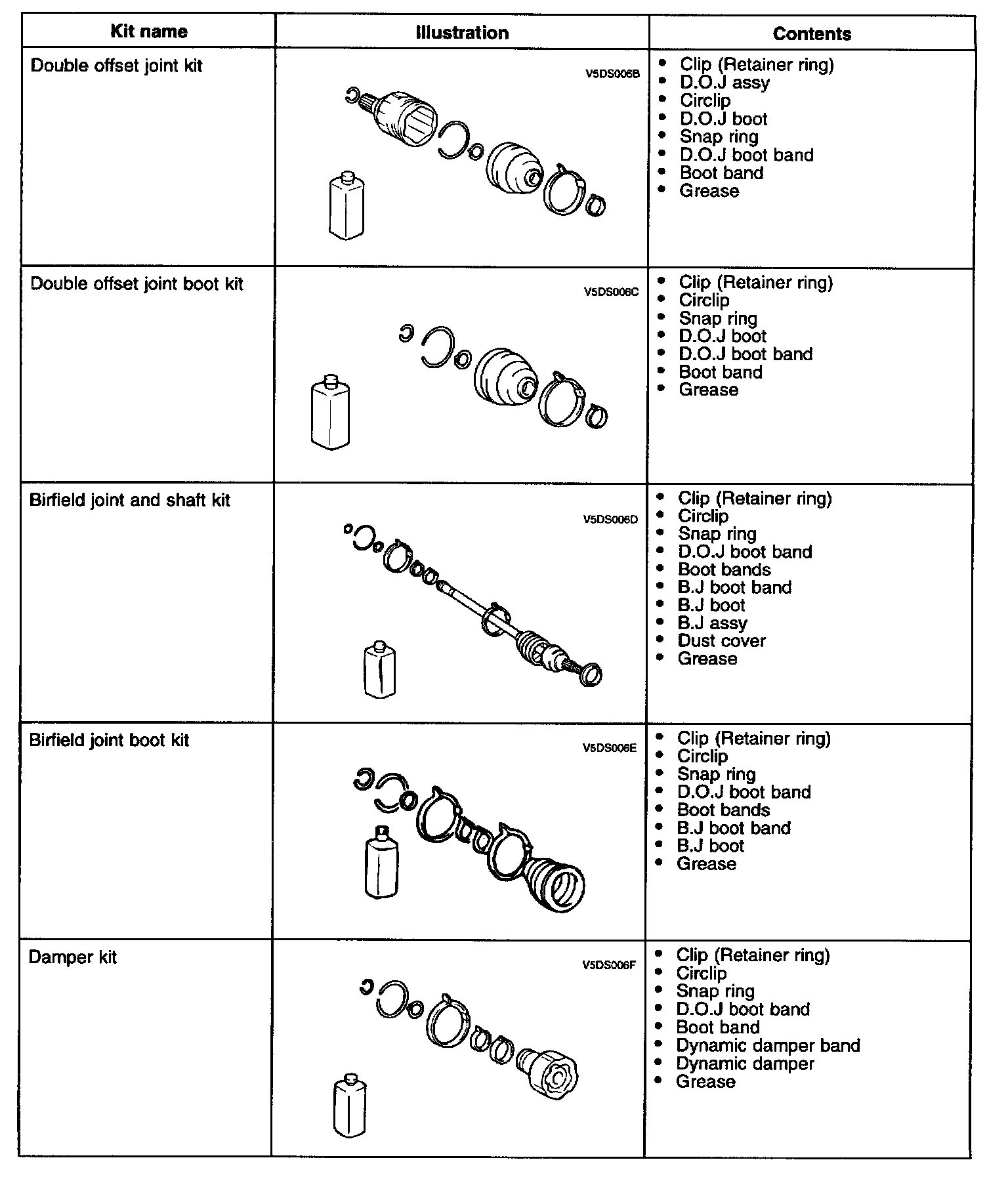

Part 1 of 2





Part 2 of 2
