Brake Proportioning/Combination Valve: Service and Repair

PROPORTIONING VALVE INSTALLATION

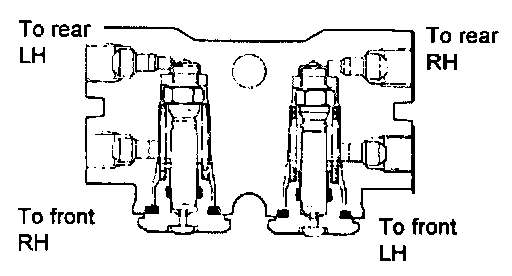

1. Install the brake lines according to the illustration.
2. Tighten the flare nuts and bleed the system.
Tightening torque
Brake tube flare nut: 13 - 17 Nm (130 - 170 kg.cm, 9 - 12 ft. lbs.)
Proportioning valve mounting nut: 8 - 12 Nm (80 - 120 kg.cm, 6 - 9 ft. lbs.)
