Pinout Values and Diagnostic Parameters

Part 1 Of 2:

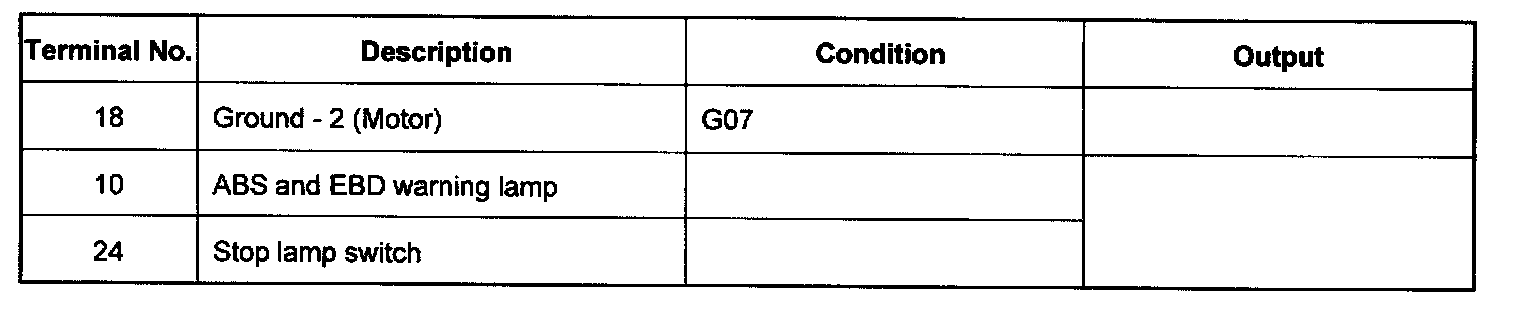

Part 2 Of 2:

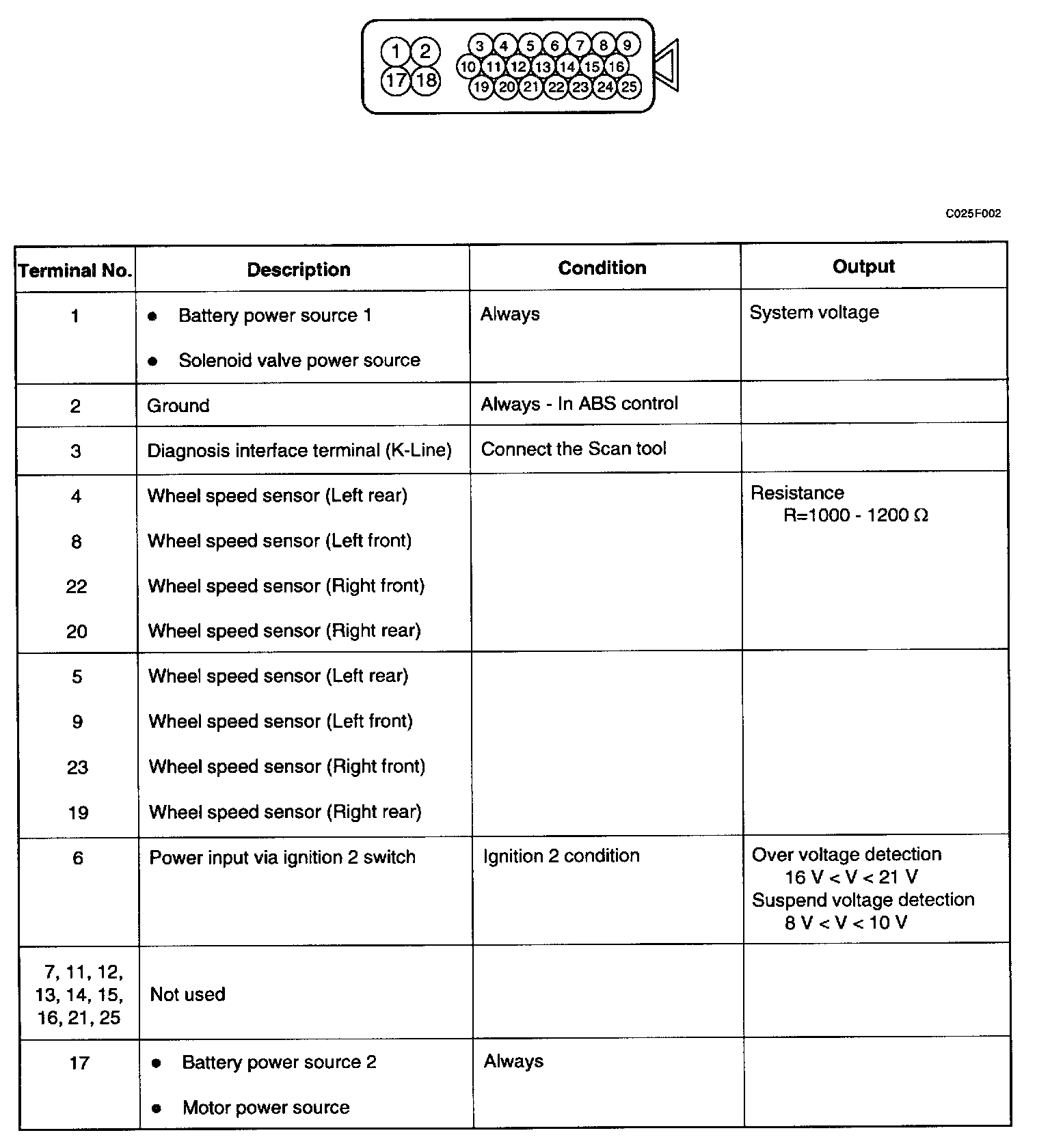

TERMINAL VOLTAGE CHART

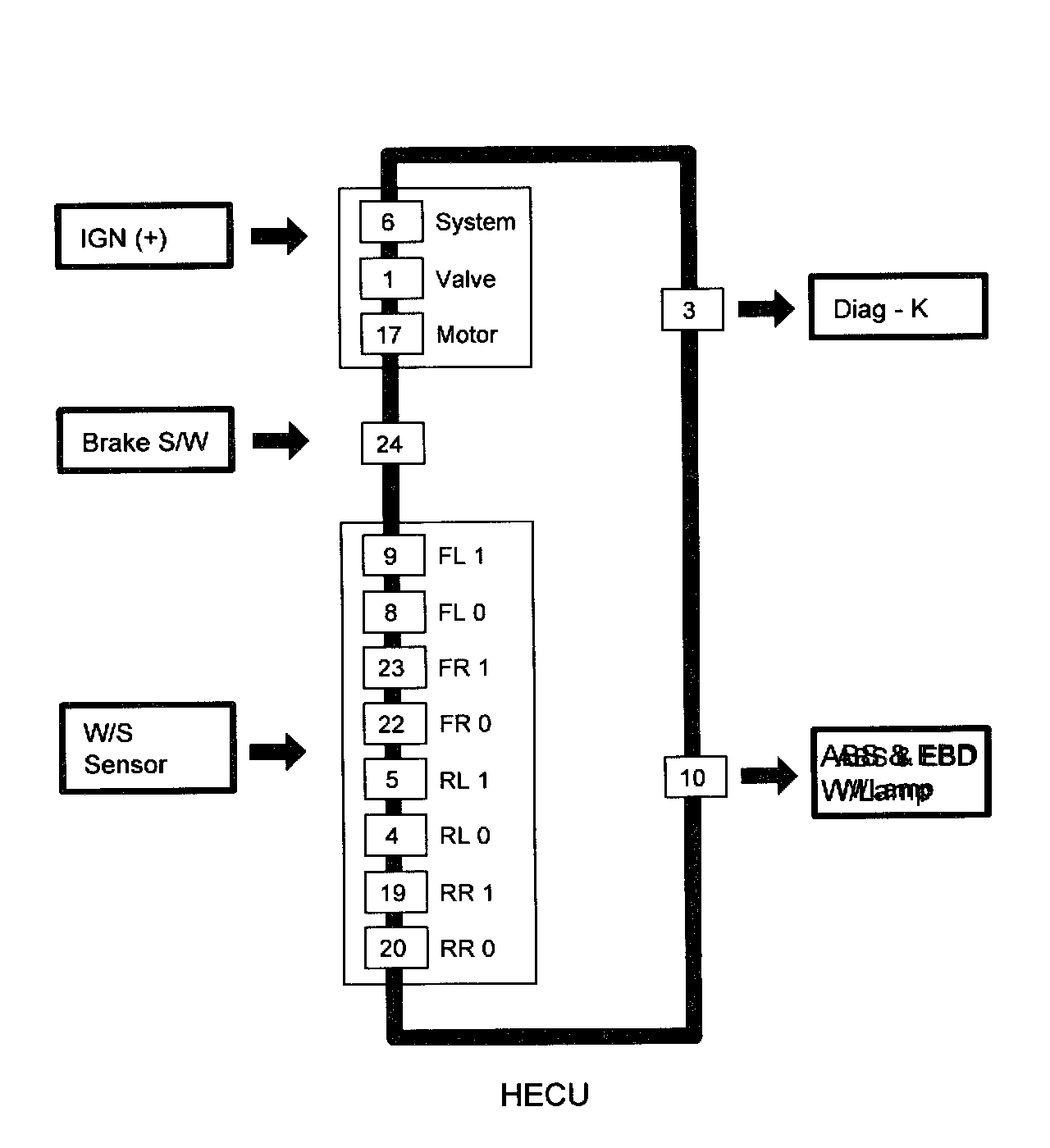

DIAGRAM OF INPUT/OUTPUT FOR HECU
