Sunroof / Moonroof: Adjustments

ADJUSTMENT

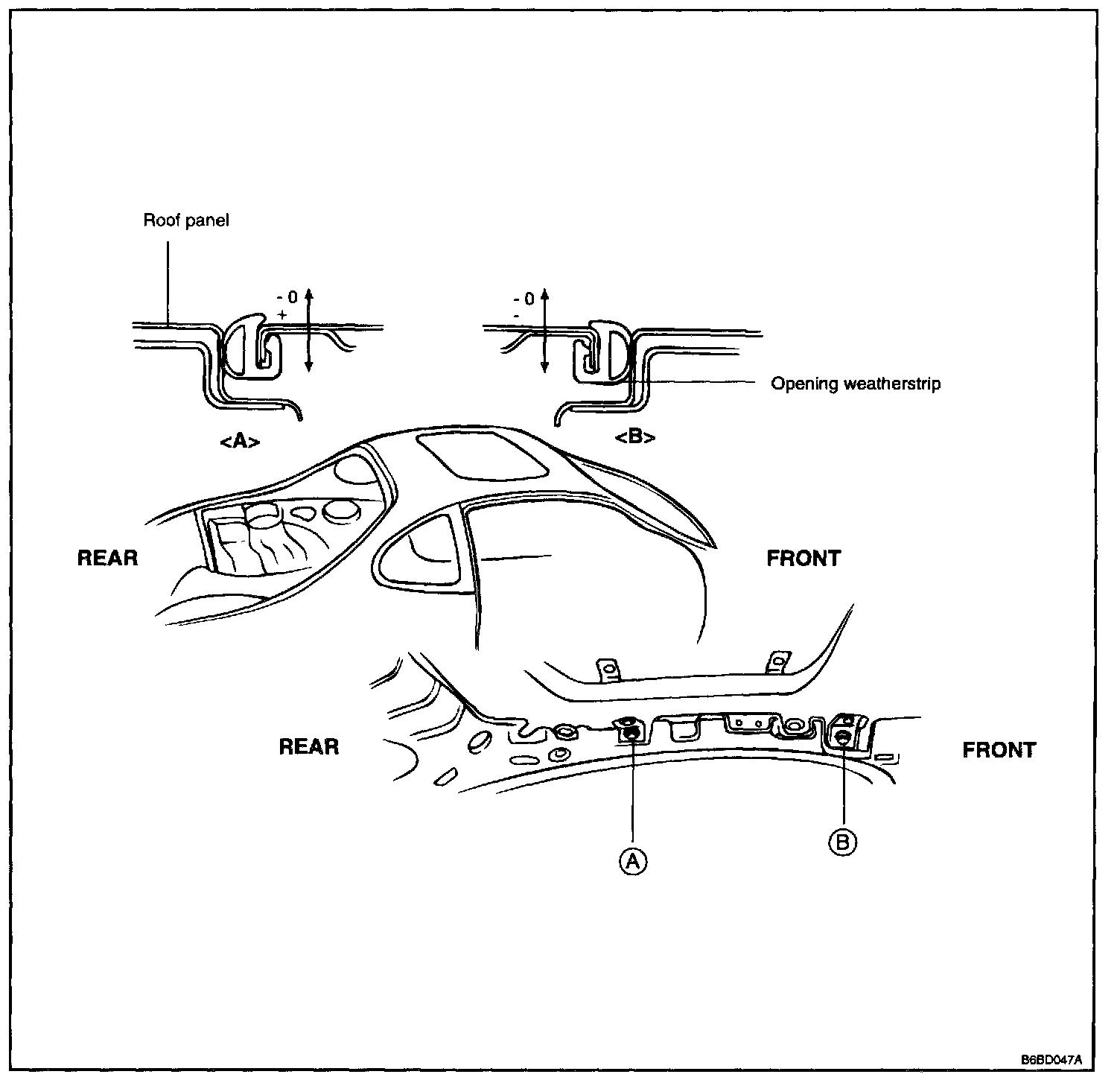

Set the gap by moving the sunroof adjustor nut A or B to clockwise or counter clockwise direction.

Adjustment procedure of sunroof adjustor nut

1. Tightening nut (clockwise direction): Sunroof lid panel moves down.
2. Loosening nut (counterclockwise direction): Sunroof lid panel moves up.
